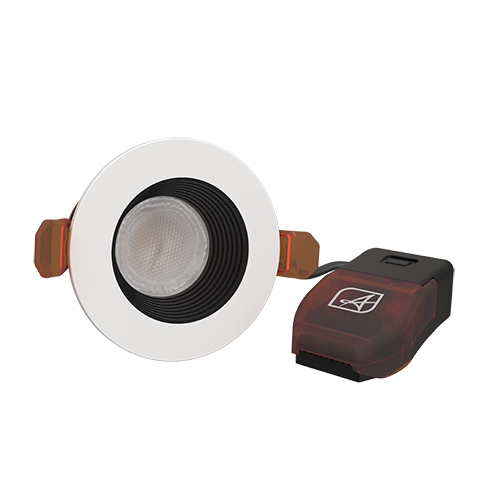

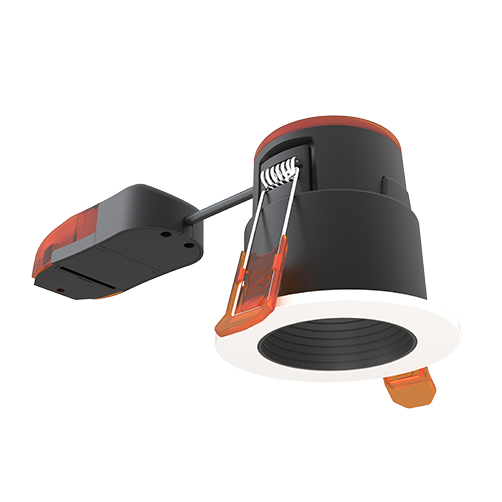

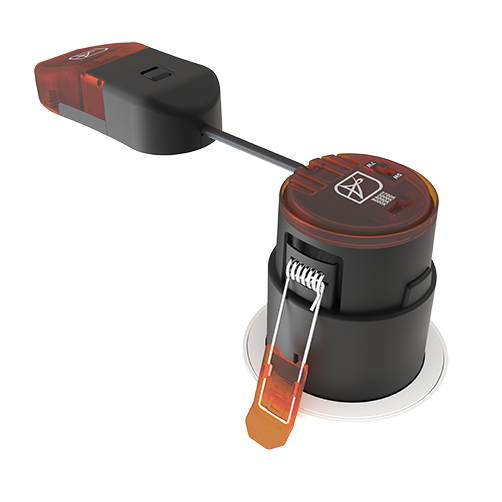

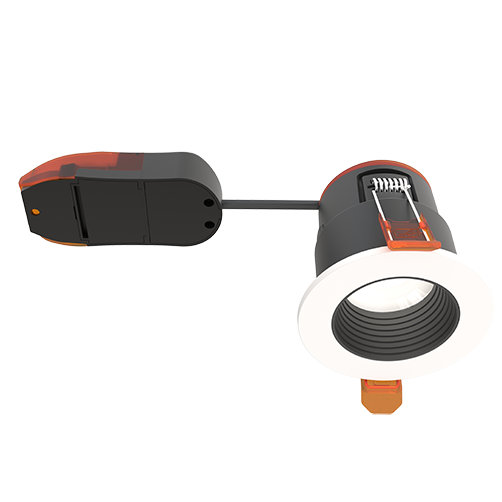

Ansell APRIPAGXM/1 Prism Pro XM Anti-Glare Fire Rated LED Downlight
The Ansell Prism Pro XM Anti-Glare Downlight is a premium architectural LED lighting solution designed for residential, hospitality and commercial environments. Featuring a modular, patent-approved design with replaceable light engine and driver, this innovative downlight helps extend product lifespan while reducing waste and maintenance costs.
Offering selectable wattage and colour temperature settings, the Prism Pro XM provides exceptional installation flexibility. Its anti-glare design enhances visual comfort, while the IP65-rated construction and fire-rated performance make it suitable for a wide range of interior applications, including bathrooms and other moisture-prone areas.
Key Features & Benefits
- IP65-rated anti-glare LED fire-rated downlight

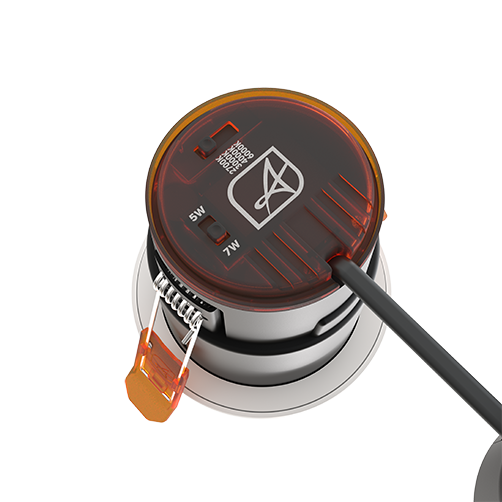

- Selectable power settings: 5W or 7W
- Selectable colour temperatures: 2700K, 3000K, 4000K and 6000K
- Dimmable operation for flexible lighting control

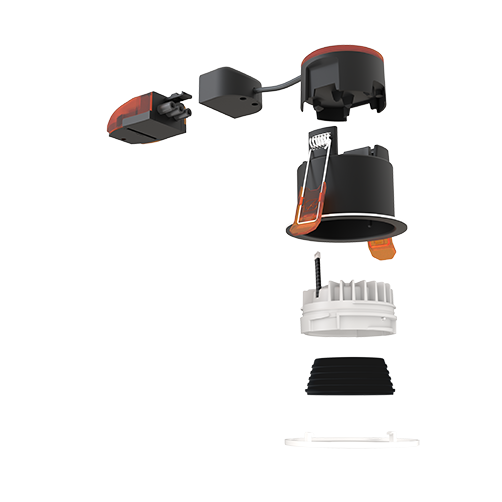

- Patent-approved modular design with replaceable LED engine and driver
- TM66 2.5 assessed for product circularity and sustainability
- Anti-glare optic design enhances visual comfort

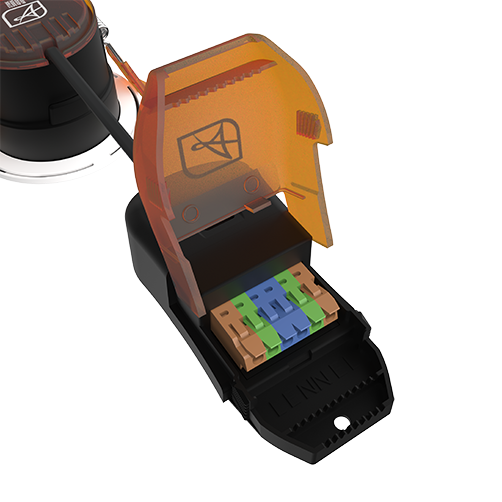

- Fast-fit plug with lever terminals for quick installation
- Innovative detachable connector allows first-fix wiring and testing before luminaire installation
- Low-profile design suitable for shallow ceiling voids
- Supplied with matt white bezel as standard
- Optional chrome, satin chrome and matt black bezels available separately
- Fully tested to Building Regulations Parts B, C, E and L
- Suitable for 30, 60 and 90-minute fire-rated ceiling constructions
Technical Specifications
-
Product Code: APRIPAGXM/1
-
Product Range: Prism Pro XM
-
Power Consumption: 5W / 7W Selectable
-
Delivered Lumens: 410lm - 530lm (4000K)
-
Efficacy: Up to 87lm/W
-
Colour Temperatures: 2700K / 3000K / 4000K / 6000K
-
CRI: Ra80
-
Input Voltage: 220-240V AC
-
Dimmable: Yes
-
IP Rating: IP65
-
Operating Temperature: -10°C to +35°C
Dimensions
-
Diameter: 88mm
-
Height: 85.5mm
-
Depth: 81mm
-
Cut-Out Diameter: 72mm
Compliance & Certification
- Fire rated for 30, 60 and 90-minute ceiling constructions
- Complies with Part B Building Regulations
- Tested to Part C (Moisture)
- Tested to Part E (Acoustics)
- Tested to Part L (Energy Efficiency)
- TM66 2.5 Circularity Assessed
Ideal Applications
- Residential properties
- Hotels and hospitality venues
- Bathrooms and shower rooms
- Luxury apartments
- Corridors and communal areas
- Retail environments
- Reception areas and lounges
Sustainable Architectural Lighting
The Ansell APRIPAGXM/1 Prism Pro XM combines advanced anti-glare optics, fire-rated safety and sustainable modular construction in a single high-performance downlight. With selectable wattage and colour temperature settings, it provides outstanding versatility for modern lighting projects while supporting long-term maintenance and sustainability goals.
