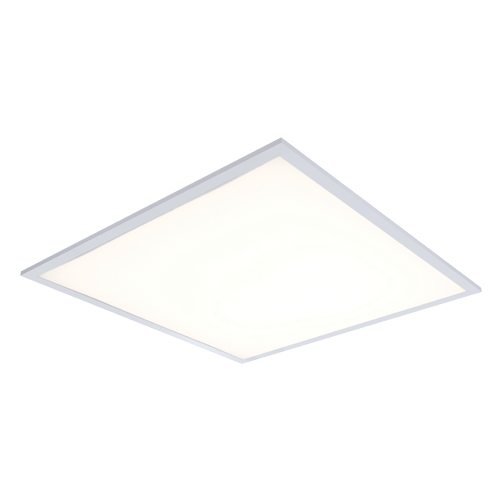

Ansell APAC1/60/2/OCTO Pace UGR<19 600x600 Backlit LED Panel CCT OCTO Smart Control 30W 3000K / 4000K / 6500K

Product Description

The Ansell APAC1/60/2/OCTO Pace 600x600 Backlit LED Panel is a high-performance commercial LED panel featuring OCTO smart lighting control, selectable colour temperature and UGR<19 glare control. Designed for education, commercial and ancillary environments, it combines efficient illumination with intelligent lighting management and a slimline profile.

With selectable 3000K, 4000K and 6500K colour temperatures, the APAC1/60/2/OCTO provides flexibility to create warm, neutral or cool white lighting to suit different applications. The panel delivers up to 3800 lumens at 4000K with an efficacy of up to 130lm/W, helping provide efficient illumination for modern commercial interiors.

The UGR<19 design helps minimise uncomfortable glare, making the panel particularly suitable for areas where visual comfort is important. SDCM 3 colour consistency also helps maintain uniform white tones when multiple panels are installed within the same space.

At only 34mm deep, the slimline panel is suitable for installations with restricted ceiling void space. Combined with its IP44 rating, TPa construction and OCTO smart control, the Pace panel provides a versatile solution for energy-efficient and controllable commercial lighting installations.

Key Features

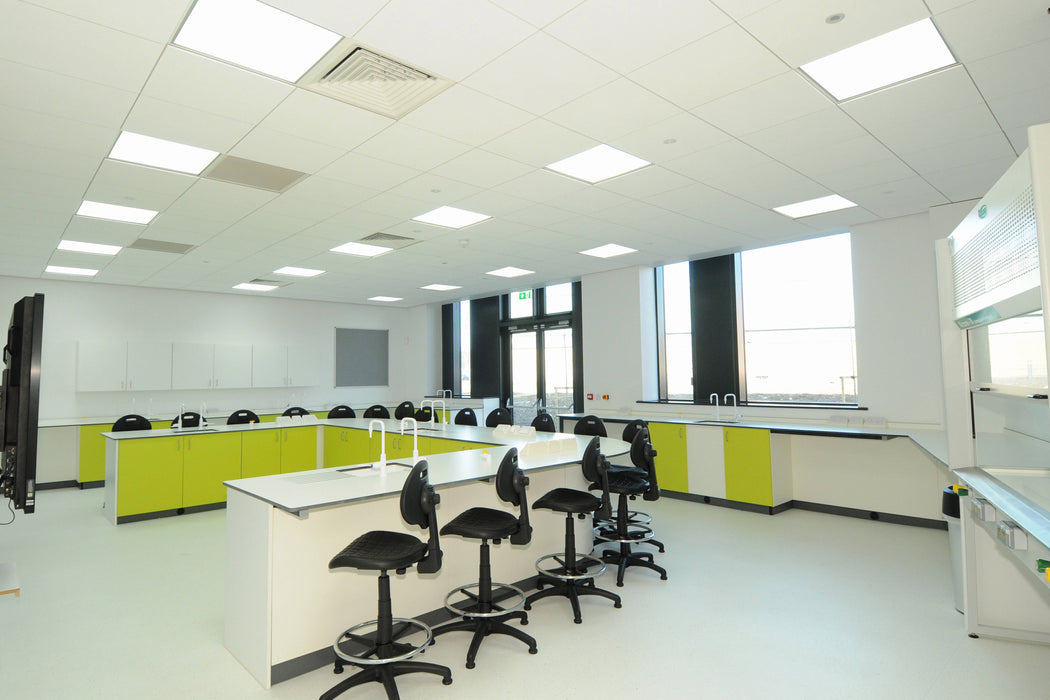

• 600x600 backlit LED panel for education, commercial and ancillary applications
• OCTO smart lighting control
• UGR<19 glare control for improved visual comfort
• 30W LED power
• Selectable 3000K, 4000K or 6500K colour temperature
• Delivers 2700-3800 lumens at 4000K
• High luminous efficacy of up to 130lm/W at 4000K
• Slimline 34mm profile suitable for shallow ceiling voids
• SDCM 3 colour consistency for minimal variation in white tones
• TPa rated as standard
• IP44 rated
• 90° symmetrical light distribution
• CRI 80 for reliable colour rendering
• Designed for internal commercial lighting applications

Dimensions

• Length: 595mm
• Width: 595mm
• Depth: 34mm

Specification

• Brand: Ansell Lighting
• Range: Pace
• Product Code: APAC1/60/2/OCTO
• Product Type: Backlit LED Panel
• Smart Control: OCTO
• Colour / Finish: White
• Materials: Aluminium, PS and steel
• Wattage: 30W
• Colour Temperature: 3000K / 4000K / 6500K selectable
• Delivered Lumens: 2700-3800lm at 4000K
• Luminous Efficacy: Up to 130lm/W at 4000K
• UGR: <19
• CRI: 80
• Beam Angle: 90°
• Light Distribution: Symmetrical
• IP Rating: IP44
• Protection Class: Class II
• Emergency: No
• Application: Internal
• Input Voltage: 220-240V
• Frequency: 50/60Hz
• Operating Temperature: -20°C to +40°C

Data Sheet

Download Data Sheet
