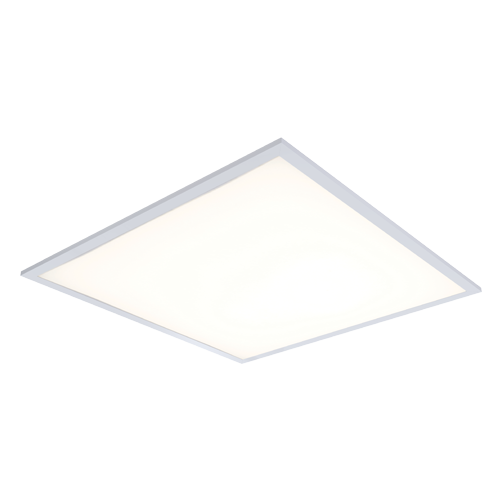

Ansell APAC1/60/2/OCTO/DM3 Pace UGR<19 600x600 Backlit LED Panel OCTO Smart Control DALI Emergency 30W 3000K / 4000K / 6500K

Product Description

The Ansell APAC1/60/2/OCTO/DM3 Pace 600x600 Backlit LED Panel is a high-performance commercial luminaire combining OCTO smart lighting control, DALI emergency functionality, UGR<19 glare control and selectable CCT. Designed for education, commercial and ancillary environments, it provides efficient illumination with intelligent control and emergency lighting capability in one slimline panel.

Selectable colour temperature allows the installer to choose between 3000K, 4000K or 6500K, making it easy to configure the lighting appearance to suit different spaces and applications. With a 30W output, the panel delivers up to 3800 lumens at 4000K and achieves an efficacy of up to 130lm/W for energy-efficient commercial lighting.

The UGR<19 design helps reduce uncomfortable glare and supports improved visual comfort in workplaces, classrooms and other areas where people may spend extended periods of time. SDCM 3 colour consistency also helps minimise visible variation in white tones when multiple panels are installed together.

Integrated OCTO smart control provides enhanced lighting management, while the DALI emergency configuration makes the APAC1/60/2/OCTO/DM3 suitable for projects requiring intelligent control alongside emergency lighting provision. Its slim 34mm depth is particularly useful where ceiling void space is restricted.

Key Features

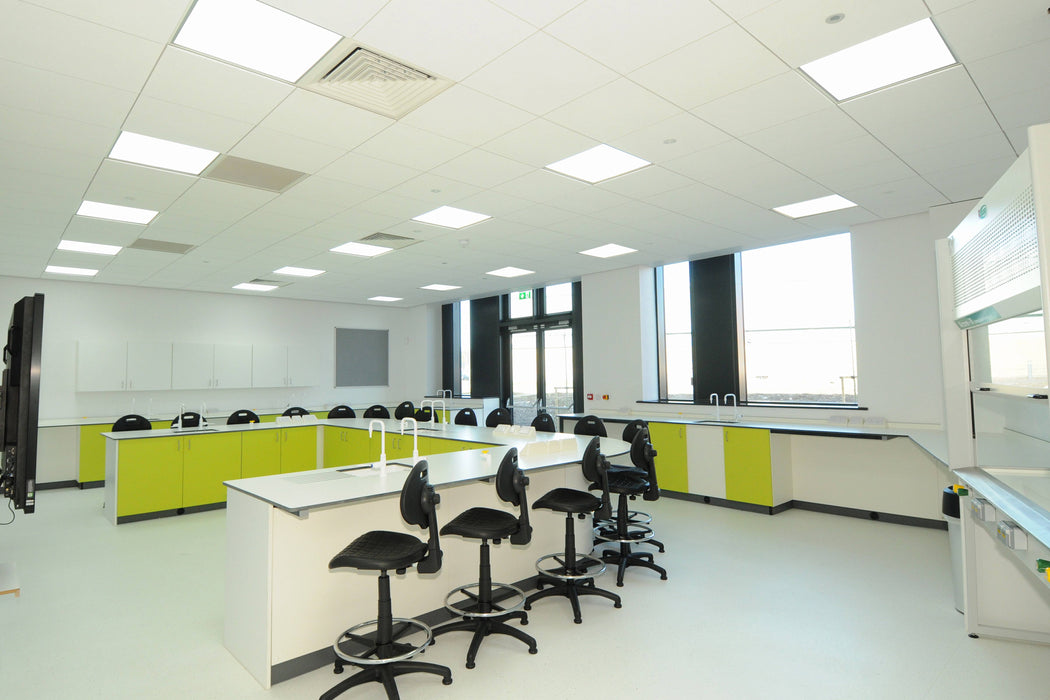

• 600x600 backlit LED panel for education, commercial and ancillary applications
• OCTO smart lighting control for intelligent lighting management
• DALI emergency functionality
• UGR<19 glare control for improved visual comfort
• 30W LED output
• Selectable 3000K, 4000K or 6500K colour temperature
• Delivers 2700-3800 lumens at 4000K
• High luminous efficacy of up to 130lm/W at 4000K
• Slimline 34mm profile suitable for shallow ceiling voids
• SDCM 3 colour consistency for minimal variation in white tones
• TPa rated as standard
• IP44 rated
• 90° symmetrical light distribution
• CRI 80 for reliable colour rendering
• Suitable for internal commercial and educational applications

Dimensions

• Length: 595mm
• Width: 595mm
• Depth: 34mm

Specification

• Brand: Ansell Lighting
• Range: Pace
• Product Code: APAC1/60/2/OCTO/DM3
• Product Type: Backlit LED Panel
• Smart Control: OCTO
• Emergency: Yes
• Emergency Control: DALI
• Colour / Finish: White
• Materials: Aluminium, PS and steel
• Wattage: 30W
• Colour Temperature: 3000K / 4000K / 6500K selectable
• Delivered Lumens: 2700-3800lm at 4000K
• Luminous Efficacy: Up to 130lm/W at 4000K
• UGR: <19
• CRI: 80
• Beam Angle: 90°
• Light Distribution: Symmetrical
• IP Rating: IP44
• Protection Class: Class II
• Application: Internal
• Input Voltage: 220-240V
• Frequency: 50/60Hz
• Operating Temperature: 0°C to +40°C
