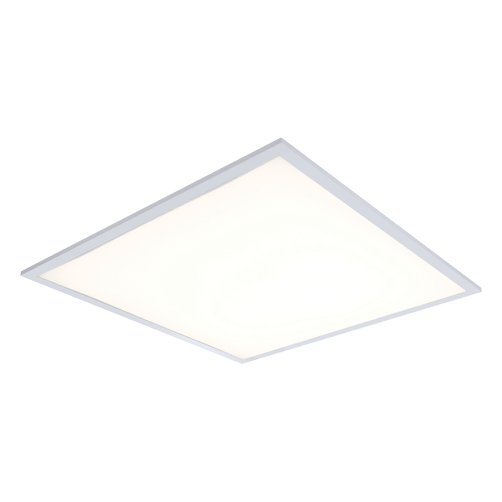

Ansell APAC1/60/2/DM3 Pace UGR<19 600x600 Backlit LED Panel CCT Multi Wattage DALI Emergency 20W-30W 3000K / 4000K / 6500K

Product Description

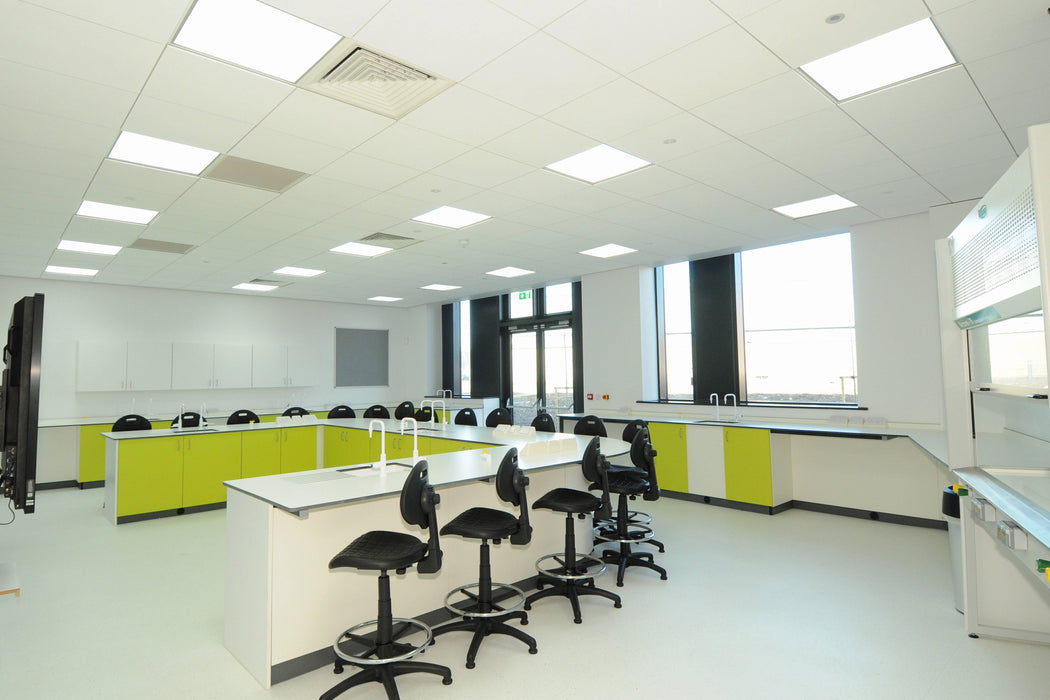

The Ansell APAC1/60/2/DM3 Pace 600x600 Backlit LED Panel is a versatile commercial lighting solution combining DALI dimming, emergency functionality, UGR<19 glare control and selectable CCT and wattage within one slimline luminaire. Designed for education, commercial and ancillary areas, it provides efficient and comfortable illumination while offering excellent installation flexibility.

The integrated multi-wattage functionality allows the output to be selected between 20W and 30W, while CCT selection provides a choice of 3000K, 4000K or 6500K colour temperatures. This enables installers to configure the panel to suit different room requirements without needing multiple luminaire variants.

Delivering between 2700 and 3800 lumens at 4000K with an efficacy of up to 130lm/W, the Pace panel provides energy-efficient illumination across commercial and educational environments. Its UGR<19 design helps minimise uncomfortable glare, while SDCM 3 colour consistency provides uniform white tones across multiple fittings.

The APAC1/60/2/DM3 also incorporates emergency functionality and DALI control, making it particularly suitable for projects requiring both emergency lighting provision and flexible lighting management.

Key Features

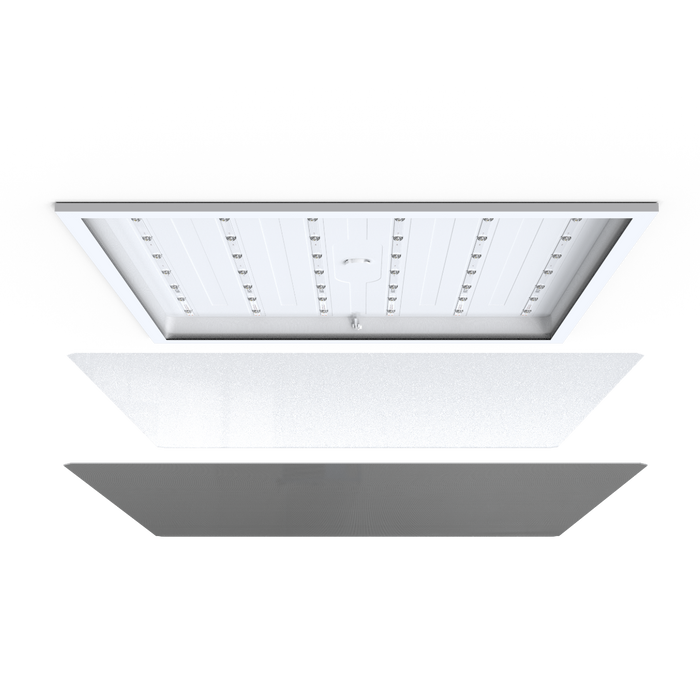

• 600x600 backlit LED panel for education, commercial and ancillary applications
• Integrated emergency functionality
• DALI dimming capability
• UGR<19 design helps reduce glare for improved visual comfort
• Multi-wattage output selectable between 20W and 30W
• Selectable 3000K, 4000K or 6500K colour temperature
• Delivers 2700-3800 lumens at 4000K
• High efficiency of up to 130lm/W at 4000K
• Slimline 34mm depth for installation in shallow ceiling voids
• SDCM 3 colour consistency for minimal variation in white tones
• TPa rated as standard
• IP44 rated
• 90° symmetrical light distribution
• Compatible with self-test panel pod or sensor pod
• Suitable for internal commercial lighting applications

Dimensions

• Length: 595mm
• Width: 595mm
• Depth: 34mm

Specification

• Brand: Ansell Lighting
• Range: Pace
• Product Code: APAC1/60/2/DM3
• Product Type: Backlit LED Panel
• Colour / Finish: White
• Materials: Aluminium, PS and steel
• Emergency: Yes
• Dimming: DALI
• Wattage: 20W-30W selectable
• Colour Temperature: 3000K / 4000K / 6500K selectable
• Delivered Lumens: 2700-3800lm at 4000K
• Luminous Efficacy: Up to 130lm/W at 4000K
• UGR: <19
• CRI: 80
• Beam Angle: 90°
• Light Distribution: Symmetrical
• IP Rating: IP44
• Protection Class: Class II
• Application: Internal
• Input Voltage: 220-240V
• Frequency: 50/60Hz
• Operating Temperature: 0°C to +40°C
