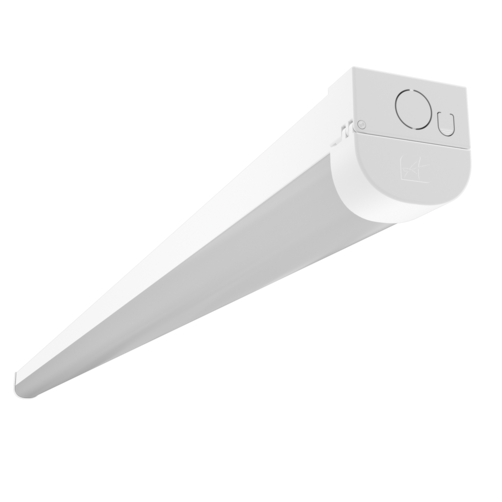

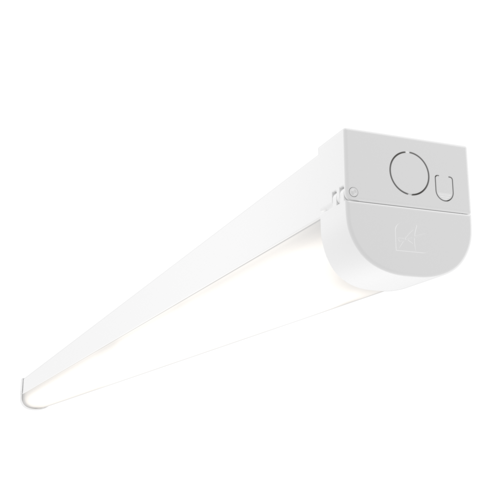

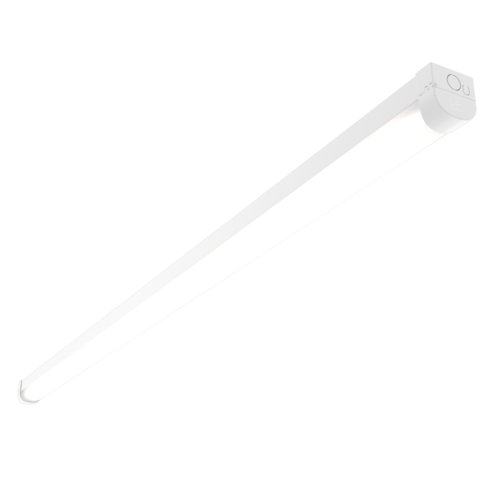

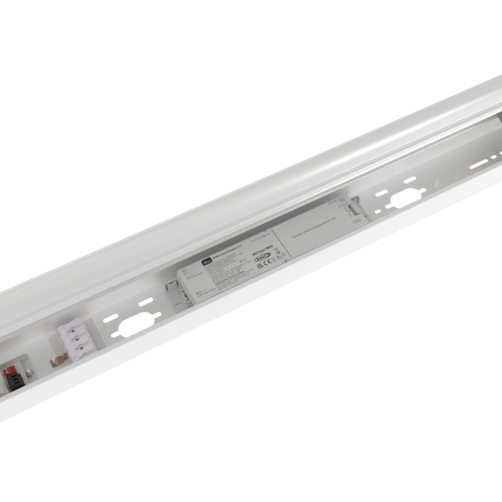

Ansell ANOU6/3/SM3 NouLine XPRESS 6ft 1800mm IP40 CCT LED Batten with Self-Test Emergency
The Ansell ANOU6/3/SM3 NouLine XPRESS LED Batten is a premium 1800mm lighting solution designed for commercial, industrial and ancillary applications. With selectable power outputs of 28W, 34W, 40W and 47W together with three selectable colour temperatures of 3000K, 4000K and 6500K, this versatile LED batten delivers exceptional performance while allowing installers to tailor light output to suit individual projects.
Supplied with a prefitted 3-hour XPRESS Self-Test Emergency module, this luminaire provides dependable emergency illumination with automatic testing to reduce maintenance requirements. Delivering up to 155 lumens per watt, it features a high-transmittance polycarbonate diffuser for uniform light distribution, while push-fit terminals, multiple conduit entry points, BESA fixing positions and a hinged body ensure fast installation and easy servicing. The fitting is also compatible with Ansell XPRESS microwave sensors for enhanced lighting control.
Key Features
- 6ft (1800mm) LED batten designed for commercial, industrial and ancillary environments
- Selectable power outputs: 28W, 34W, 40W or 47W
- Selectable colour temperatures: 3000K, 4000K and 6500K (3CCT)

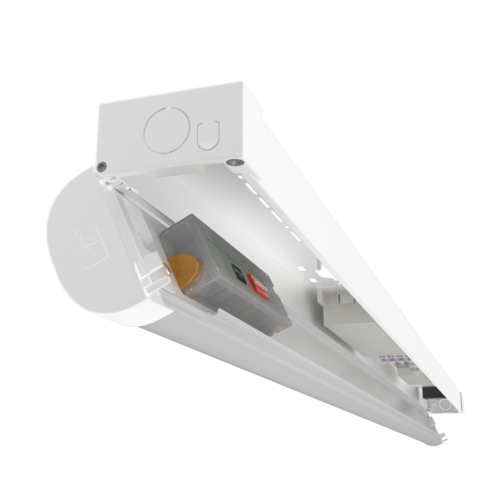

- Prefitted with 3-hour XPRESS Self-Test Emergency module
- High efficacy of up to 155lm/W
- High-transmittance polycarbonate diffuser provides excellent light uniformity
- Instant full light output with unlimited switching cycles

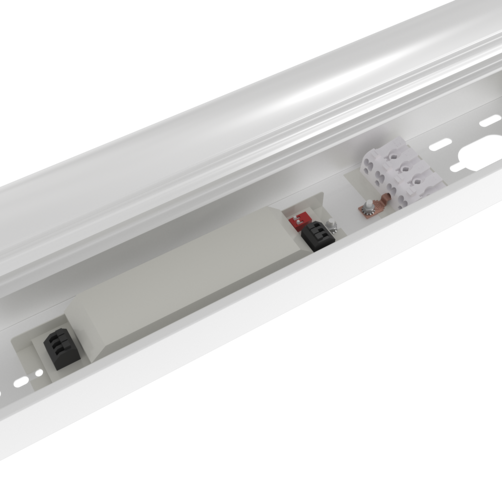

- Push-fit terminals for quick and efficient installation

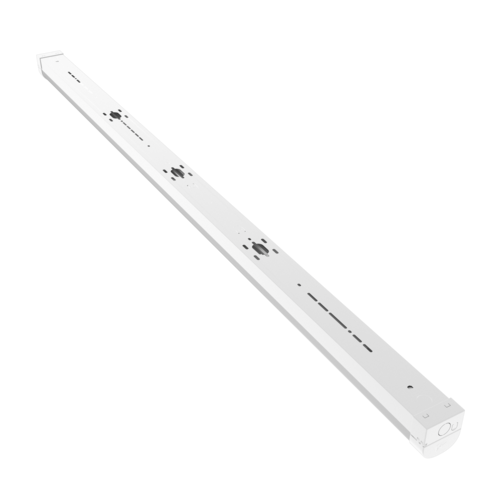

- Multiple conduit entry points and BESA fixing locations

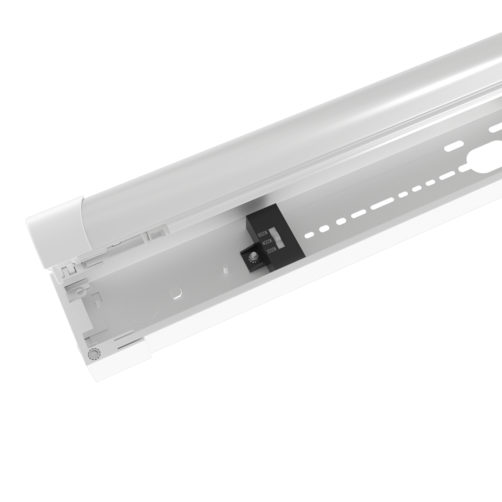

- Hinged body for simplified installation and maintenance
- Compatible with Ansell XPRESS microwave sensor accessories

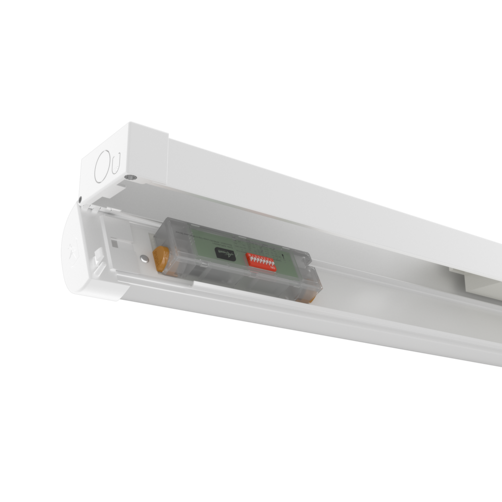

- Selectable Self-Test or Manual Test emergency operation
- IP40 rated for indoor commercial installations
Technical Specifications
| Manufacturer |
Ansell Lighting |
| Model |
ANOU6/3/SM3 |
| Product Range |
NouLine XPRESS |
| Length |
1800mm (6ft) |
| Dimensions |
1800 × 64 × 64mm |
| Power |
28W / 34W / 40W / 47W Selectable |
| Colour Temperature |
3000K / 4000K / 6500K Selectable |
| Luminous Output |
4900lm – 6900lm (4000K) |
| Efficiency |
Up to 155lm/W |
| Colour Rendering Index |
CRI 80 |
| Input Voltage |
220–240V AC |
| Emergency Function |
Prefitted 3-Hour XPRESS Self-Test Emergency |
| Operating Temperature |
0°C to +40°C |
| IP Rating |
IP40 |
Ideal Applications
The Ansell NouLine XPRESS Self-Test Emergency LED Batten is ideal for warehouses, factories, workshops, production facilities, service corridors, storage areas, educational buildings, retail stockrooms and other commercial premises where dependable emergency lighting and high-efficiency illumination are essential.
Downloads
Data Sheet:
Download Data Sheet
Instruction Manual:
Download Instruction Manual
