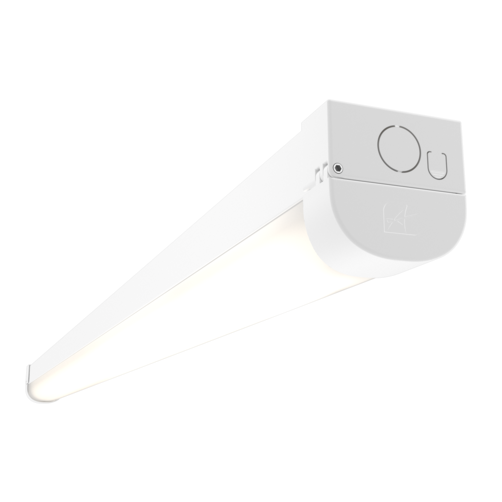

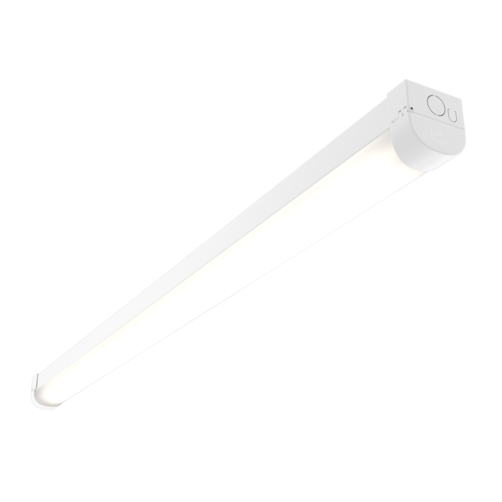

Ansell ANOU4/3/SM3 NouLine XPRESS 4ft 1200mm IP40 CCT LED Batten with Self-Test Emergency

The Ansell ANOU4/3/SM3 NouLine XPRESS LED Batten is a versatile, high-performance 1200mm luminaire designed for commercial, industrial and ancillary applications. Featuring selectable wattages of 18W, 23W, 28W or 32W and three selectable colour temperatures of 3000K, 4000K and 6500K, it provides excellent flexibility for a wide range of lighting requirements.

This model comes prefitted with a 3-hour XPRESS Self-Test Emergency module, providing reliable emergency illumination and automatic testing for simplified maintenance. Delivering up to 155 lumens per watt, the batten features a high-transmittance polycarbonate diffuser for uniform light distribution, while its hinged body, push-fit terminals and multiple fixing options ensure quick installation and easy servicing.

Key Features

• 4ft (1200mm) LED batten for commercial and industrial environments
• Selectable power outputs: 18W, 23W, 28W or 32W
• Selectable colour temperatures: 3000K, 4000K and 6500K

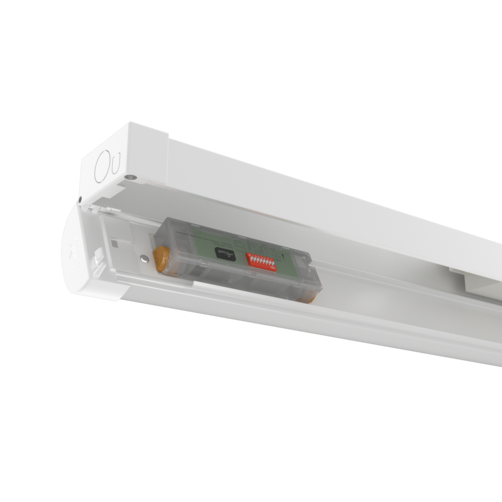

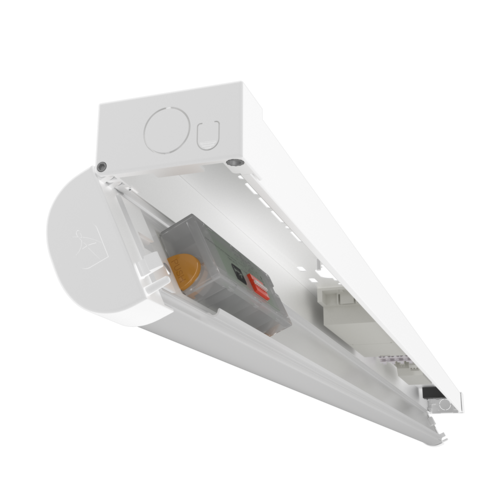

• Prefitted with 3-hour XPRESS Self-Test Emergency module
• High efficiency of up to 155lm/W
• Excellent light uniformity with high-transmittance polycarbonate diffuser
• Instant full light output with unlimited switching cycles

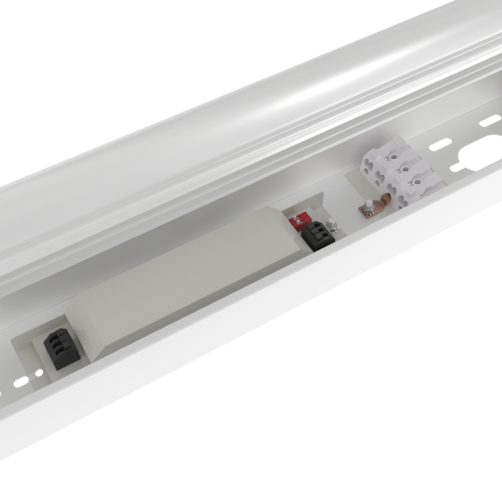

• Push-fit terminals for fast and straightforward installation
• Multiple conduit entry points and BESA fixing positions
• Hinged body simplifies installation and maintenance
• Compatible with XPRESS microwave sensor accessories
• Selectable Self-Test or Manual Test emergency operation
• IP40 rated for indoor installations

Technical Specifications

Ideal Applications

The Ansell NouLine XPRESS Self-Test Emergency LED Batten is ideal for warehouses, workshops, factories, corridors, plant rooms, service areas, educational facilities, retail back-of-house environments and commercial buildings where reliable emergency lighting and energy-efficient illumination are required.
