Ansell ALUP/2/WH/DM3 Luppa CCT XPRESS IP66 13W/23W DALI Emergency LED Bulkhead White

The Ansell ALUP/2/WH/DM3 Luppa CCT XPRESS LED Bulkhead is a robust emergency luminaire designed for education, commercial, industrial and demanding indoor or outdoor applications. Finished in white, it combines a durable die-cast aluminium body with an opal polycarbonate diffuser for reliable and evenly distributed illumination.

Offering selectable 13W or 23W output and 3000K or 4000K colour temperature, the Luppa provides flexible lighting performance from a single fitting. At 4000K, the range delivers between 1750 and 3200 lumens with an efficiency of up to 140lm/W.

This DM3 version includes a pre-installed XPRESS DALI 3-hour emergency system, providing integrated emergency lighting functionality for compatible installations. The main luminaire is non-dimmable.

With an IP66 ingress protection rating and IK08 impact resistance, the fitting is suitable for demanding internal and external environments. The installer-friendly XPRESS design positions the gear tray on the diffuser, allowing the base to be installed first before connection. Removable conduit entries and discreet side and top cable entry points further simplify installation.

Key Features

• Selectable 13W or 23W LED output
• Selectable 3000K or 4000K colour temperature
• Pre-installed XPRESS DALI 3-hour emergency system
• Integrated emergency lighting functionality
• Main luminaire is non-dimmable
• Up to 3200 lumens delivered at 4000K
• Efficiency of up to 140lm/W at 4000K
• IP66 rated for demanding indoor and outdoor applications
• IK08 impact resistance
• Die-cast aluminium body with opal polycarbonate diffuser
• 107° symmetrical beam distribution
• CRI 80 colour rendering
• Removable eyelid trim design

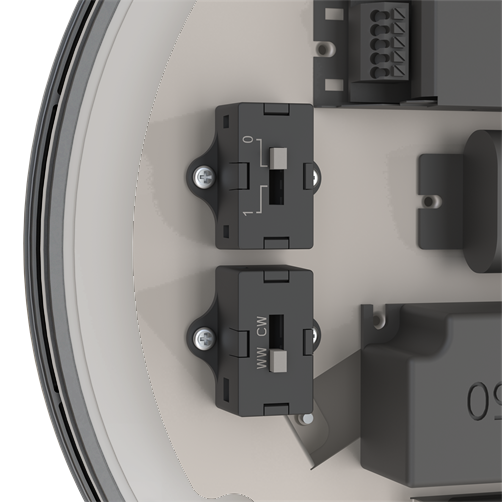

• Integrated LED board switch allows the section behind the eyelid to be deactivated for improved energy efficiency
• Gear tray located on the diffuser for quick and simple installation
• Removable conduit entries on the base
• Discreet side and top conduit entry points
• Tamper-proof stainless steel Allen key screws
• Suitable for ceiling, surface and wall mounting

Specification

• Product Code: ALUP/2/WH/DM3
• Range: Luppa CCT XPRESS
• Colour / Finish: White
• Material: Aluminium and polycarbonate
• Wattage: 13W / 23W selectable
• Lumens Delivered: 1750lm - 3200lm at 4000K
• Efficiency: 135lm/W - 140lm/W at 4000K
• CCT: 3000K / 4000K selectable
• CRI: 80
• Beam Angle: 107°
• Distribution: Symmetrical
• Emergency: Yes
• Emergency Duration: 3 hours
• Emergency Type: XPRESS DALI Emergency
• Dimmable: No
• IP Rating: IP66
• IK Rating: IK08
• Protection Class: Class I
• Input Voltage: 220-240V
• Frequency: 50/60Hz
• Operating Temperature: +5°C to +40°C
• Mounting: Ceiling, surface or wall
• Application: Internal / external

Dimensions

• Diameter: 298mm
• Depth: 99mm

Applications

Ideal for schools, corridors, stairwells, communal areas, commercial premises and industrial buildings where a durable IP66 LED bulkhead with selectable wattage, adjustable colour temperature and integrated DALI 3-hour emergency functionality is required.
