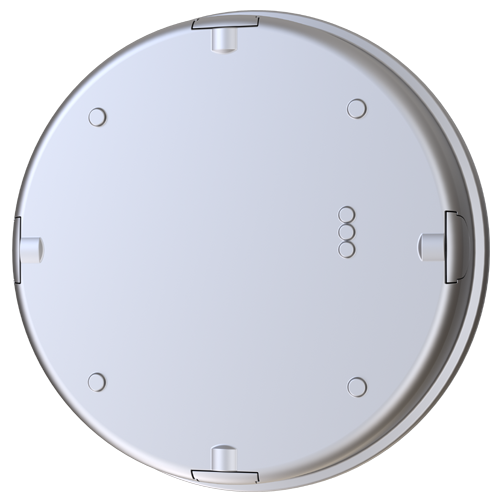

Ansell ALUP/2/GR/MWS Luppa CCT XPRESS IP66 13W/23W Microwave Sensor LED Bulkhead Grey

The Ansell ALUP/2/GR/MWS Luppa CCT XPRESS LED Bulkhead is a robust, energy-efficient luminaire featuring an integrated microwave sensor with corridor function. Designed for education, commercial, industrial and demanding indoor or outdoor applications, it combines intelligent lighting control with a durable grey die-cast aluminium body and opal polycarbonate diffuser.

Offering selectable 13W or 23W output and 3000K or 4000K colour temperature, the Luppa allows the lighting performance to be configured to suit the installation. At 4000K, it delivers between 1750 and 3200 lumens with an efficiency of up to 140lm/W.

This MWS version includes a pre-installed XPRESS microwave sensor with corridor function. The integrated sensor provides automatic lighting control, while the corridor function enables controlled light levels for areas where full illumination may only be required when movement is detected.

With an IP66 ingress protection rating and IK08 impact resistance, the fitting is suitable for demanding internal and external environments. Installer-friendly features include a gear tray located on the diffuser, removable conduit entries and discreet side and top cable entry points for quick and straightforward installation.

Key Features

• Selectable 13W or 23W LED output
• Selectable 3000K or 4000K colour temperature
• Pre-installed XPRESS microwave sensor
• Corridor function included as standard
• Automatic sensor-controlled lighting operation
• Up to 3200 lumens delivered at 4000K
• Efficiency of up to 140lm/W at 4000K
• IP66 rated for demanding indoor and outdoor applications
• IK08 impact resistance
• Die-cast aluminium body with opal polycarbonate diffuser
• 107° symmetrical beam distribution
• CRI 80 colour rendering
• Removable eyelid trim design
• Integrated LED board switch allows the section behind the eyelid to be deactivated for improved energy efficiency
• Gear tray located on the diffuser for quick and simple installation
• Removable conduit entries on the base
• Discreet side and top conduit entry points
• Tamper-proof stainless steel Allen key screws
• Suitable for ceiling, surface and wall mounting

Specification

• Product Code: ALUP/2/GR/MWS
• Range: Luppa CCT XPRESS
• Colour / Finish: Grey
• Material: Aluminium and polycarbonate
• Wattage: 13W / 23W selectable
• Lumens Delivered: 1750lm - 3200lm at 4000K
• Efficiency: 135lm/W - 140lm/W at 4000K
• CCT: 3000K / 4000K selectable
• Sensor: Pre-installed XPRESS microwave sensor
• Sensor Function: Corridor function
• CRI: 80
• Beam Angle: 107°
• Distribution: Symmetrical
• Emergency: No
• IP Rating: IP66
• IK Rating: IK08
• Protection Class: Class I
• Input Voltage: 220-240V
• Frequency: 50/60Hz
• Operating Temperature: -20°C to +40°C
• Mounting: Ceiling, surface or wall
• Application: Internal / external

Dimensions

• Diameter: 298mm
• Depth: 99mm

Applications

Ideal for corridors, stairwells, communal areas, schools, apartment blocks, commercial premises, industrial buildings and external walkways where an IP66 LED bulkhead with automatic microwave sensing and corridor functionality is required.

Data Sheet:

Click Here for Data Sheet
