Ansell ALUP/2/BK/PC Luppa CCT XPRESS IP66 13W/23W Photocell LED Bulkhead Black 3000K/4000K

The Ansell ALUP/2/BK/PC Luppa CCT XPRESS LED Bulkhead is a durable and energy-efficient luminaire supplied with a pre-installed XPRESS photocell for automatic light control. Designed for education, commercial, industrial and demanding indoor or outdoor environments, it combines flexible lighting performance with robust construction and installer-friendly features.

Offering selectable 13W or 23W output and 3000K or 4000K colour temperature, the Luppa can be configured to suit different lighting requirements from a single fitting. At 4000K, it delivers between 1750 and 3200 lumens with an efficiency of up to 140lm/W.

This PC version includes a pre-installed XPRESS photocell, providing automatic lighting operation according to ambient light levels. This makes it particularly suitable for external areas, communal spaces and other applications where automatic dusk-to-dawn style lighting control is required.

Manufactured from die-cast aluminium with an opal polycarbonate diffuser, the fitting provides IP66 ingress protection and IK08 impact resistance. The XPRESS installation design incorporates a gear tray on the diffuser, removable conduit entries and discreet side and top cable entry points for quick and straightforward installation.

Key Features

• Selectable 13W or 23W LED output
• Selectable 3000K or 4000K colour temperature
• Pre-installed XPRESS photocell
• Automatic operation according to ambient light levels
• Up to 3200 lumens delivered at 4000K
• Efficiency of up to 140lm/W at 4000K
• IP66 rated for demanding indoor and outdoor environments
• IK08 impact resistance
• Die-cast aluminium body with opal polycarbonate diffuser
• 107° symmetrical beam distribution
• CRI 80 colour rendering
• Removable eyelid trim design
• Integrated LED board switch allows the section behind the eyelid to be deactivated for improved energy efficiency
• Gear tray located on the diffuser for quick and simple installation
• Removable conduit entries on the base
• Discreet side and top conduit entry points

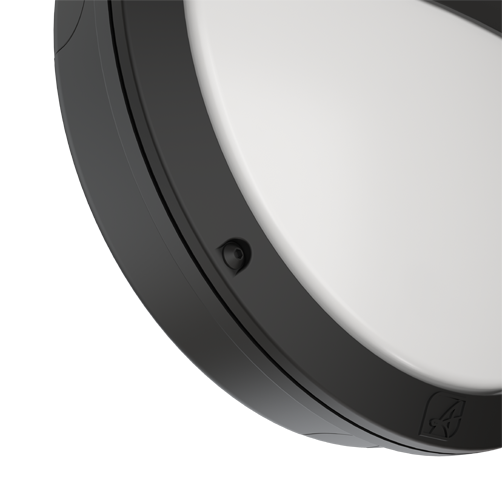

• Tamper-proof stainless steel Allen key screws
• Suitable for ceiling, surface and wall mounting
• Non-dimmable

Specification

• Product Code: ALUP/2/BK/PC
• Range: Luppa CCT XPRESS
• Colour / Finish: Black
• Material: Aluminium and polycarbonate
• Wattage: 13W / 23W selectable
• Lumens Delivered: 1750lm - 3200lm at 4000K
• Efficiency: 135lm/W - 140lm/W at 4000K
• CCT: 3000K / 4000K selectable
• Photocell: Pre-installed XPRESS photocell
• CRI: 80
• Beam Angle: 107°
• Distribution: Symmetrical
• Dimmable: No
• Emergency: No
• IP Rating: IP66
• IK Rating: IK08
• Protection Class: Class I
• Input Voltage: 220-240V
• Frequency: 50/60Hz
• Operating Temperature: -20°C to +40°C
• Mounting: Ceiling, surface or wall
• Application: Internal / external

Dimensions

• Diameter: 298mm
• Depth: 99mm

Applications

Ideal for external walkways, entrances, communal areas, apartment blocks, schools, commercial premises and industrial buildings where a durable IP66 LED bulkhead with automatic photocell control is required.

Data Sheet:

Click Here for Data Sheet
