Ansell ALUP/2/BK/OCTO Luppa CCT XPRESS IP66 13W/23W OCTO Smart LED Bulkhead Black

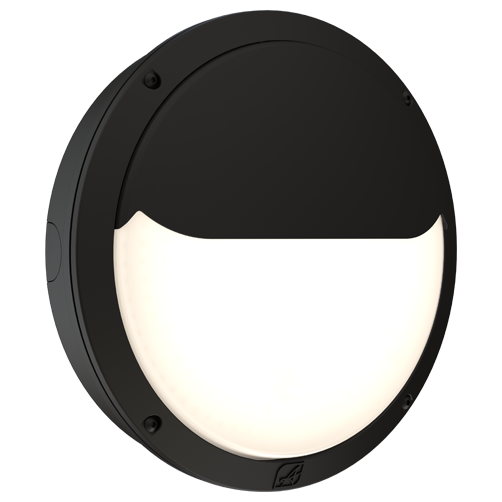

The Ansell ALUP/2/BK/OCTO Luppa CCT XPRESS LED Bulkhead is a robust and versatile smart-controlled luminaire designed for education, commercial, industrial and demanding indoor or outdoor applications. Finished in black, it combines a durable die-cast aluminium body with an opal polycarbonate diffuser for reliable and evenly distributed illumination.

Featuring selectable 13W or 23W output and 3000K or 4000K colour temperature, the Luppa provides flexibility to configure the lighting performance to suit the installation. At 4000K, it delivers between 1750 and 3200 lumens with an efficiency of up to 140lm/W.

This OCTO version includes OCTO Smart Control, providing intelligent lighting control for compatible installations. It is also compatible with XPRESS Emergency and Photocell options, making it suitable for projects requiring additional lighting functionality.

With an IP66 ingress protection rating and IK08 impact resistance, the fitting is designed for demanding internal and external environments. Installer-friendly features include a gear tray located on the diffuser, removable conduit entries, discreet side and top cable entry points and a built-in spirit level for easier alignment during installation.

Key Features

• Selectable 13W or 23W LED output
• Selectable 3000K or 4000K colour temperature
• Includes OCTO Smart Control
• Up to 3200 lumens delivered at 4000K
• Efficiency of up to 140lm/W at 4000K
• IP66 rated for demanding indoor and outdoor environments
• IK08 impact resistance
• Die-cast aluminium body with opal polycarbonate diffuser
• 107° symmetrical beam distribution
• CRI 80 colour rendering
• Removable eyelid trim design
• Integrated LED board switch allows the section behind the eyelid to be deactivated for improved energy efficiency
• Compatible with XPRESS Emergency and Photocell options
• Gear tray located on the diffuser for quick and simple installation
• Built-in spirit level for easier and more accurate installation
• Removable conduit entries on the base
• Discreet side and top conduit entry points
• Tamper-proof stainless steel Allen key screws
• Suitable for ceiling, surface and wall mounting

Specification

• Product Code: ALUP/2/BK/OCTO
• Range: Luppa CCT XPRESS
• Colour / Finish: Black
• Material: Aluminium and polycarbonate
• Wattage: 13W / 23W selectable
• Lumens Delivered: 1750lm - 3200lm at 4000K
• Efficiency: 135lm/W - 140lm/W at 4000K
• CCT: 3000K / 4000K selectable
• Smart Control: OCTO
• CRI: 80
• Beam Angle: 107°
• Distribution: Symmetrical
• Emergency: No
• IP Rating: IP66
• IK Rating: IK08
• Protection Class: Class I
• Input Voltage: 220-240V
• Frequency: 50/60Hz
• Operating Temperature: -20°C to +40°C
• Mounting: Ceiling, surface or wall
• Application: Internal / external

Dimensions

• Diameter: 298mm
• Depth: 99mm

Applications

Ideal for schools, corridors, communal areas, commercial premises, industrial buildings, external walkways and other installations requiring a durable IP66 LED bulkhead with flexible output, selectable colour temperature and OCTO smart lighting control.

Data Sheet:

Click Here for Data Sheet
