Ansell ALUP/2/BK/DD3 Luppa CCT XPRESS IP66 23W DALI LED Bulkhead Black 3000K/4000K

The Ansell ALUP/2/BK/DD3 Luppa CCT XPRESS LED Bulkhead is a robust and versatile DALI dimmable luminaire designed for education, commercial, industrial and demanding indoor or outdoor environments. Finished in black, it features a durable die-cast aluminium body with an opal polycarbonate diffuser for reliable and evenly distributed illumination.

Featuring a selectable 3000K or 4000K colour temperature, the Luppa provides flexible lighting to suit different applications. At 4000K, the luminaire delivers between 1750 and 3200 lumens with an efficiency of up to 140lm/W, providing powerful illumination while maintaining energy efficiency.

This DD3 version features DALI dimming, making it suitable for installations requiring integration with compatible digital lighting control systems. Its IP66 protection and IK08 impact resistance make it suitable for both internal and external locations.

The installer-friendly XPRESS design positions the gear tray on the diffuser, allowing the base to be fitted before the diffuser is connected. Removable conduit entries and discreet side and top entry points help simplify installation, while tamper-proof stainless steel Allen key screws provide additional security.

Key Features

• 23W LED bulkhead with DALI dimming
• Selectable 3000K or 4000K colour temperature
• Up to 3200 lumens delivered at 4000K
• Efficiency of up to 140lm/W at 4000K
• IP66 rated for demanding indoor and outdoor applications
• IK08 impact resistance
• Die-cast aluminium body with opal polycarbonate diffuser
• 107° symmetrical beam distribution
• CRI 80 colour rendering

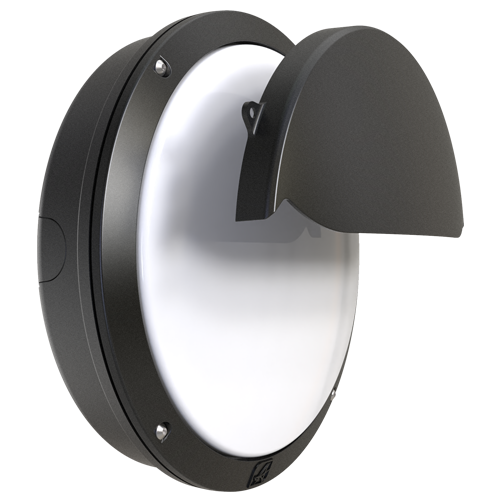

• Removable eyelid trim design
• Integrated LED board switch allows the section behind the eyelid to be deactivated to improve energy efficiency
• Gear tray located on the diffuser for quick and simple installation
• Removable conduit entries on the base
• Discreet side and top conduit entry points

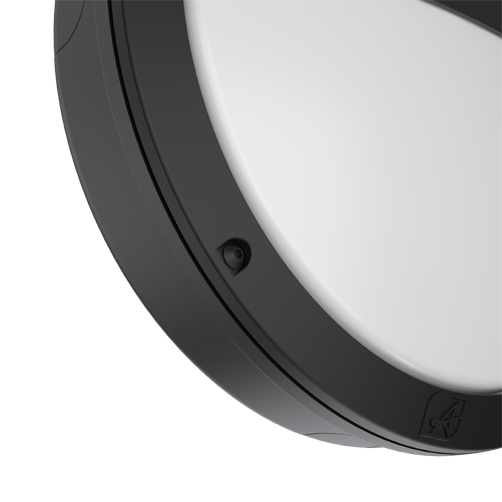

• Tamper-proof stainless steel Allen key screws
• Suitable for ceiling, surface and wall mounting

Specification

• Product Code: ALUP/2/BK/DD3
• Range: Luppa CCT XPRESS
• Colour / Finish: Black
• Material: Aluminium and polycarbonate
• Wattage: 23W
• Lumens Delivered: 1750lm - 3200lm at 4000K
• Efficiency: 135lm/W - 140lm/W at 4000K
• CCT: 3000K / 4000K selectable
• CRI: 80
• Beam Angle: 107°
• Distribution: Symmetrical
• Dimmable: Yes
• Dimming Type: DALI
• Emergency: No
• IP Rating: IP66
• IK Rating: IK08
• Protection Class: Class I
• Input Voltage: 220-240V
• Frequency: 50/60Hz
• Operating Temperature: -20°C to +40°C
• Mounting: Ceiling, surface or wall
• Application: Internal / external

Dimensions

• Diameter: 298mm
• Depth: 99mm

Applications

Ideal for schools, corridors, communal areas, commercial premises, industrial buildings, external walkways and other installations requiring a durable IP66 LED bulkhead with DALI lighting control and selectable colour temperature.

Data Sheet:

Click Here for Data Sheet
