Ansell ADIS2/2/SM3 Disco EVO 2 XPRESS IP65 8W-16W CCT Adjustable LED Bulkhead with Self-Test Emergency

The Ansell ADIS2/2/SM3 Disco EVO 2 XPRESS is a high-performance IP65-rated LED bulkhead featuring an integrated 3-hour self-test emergency module. Designed for residential, commercial and industrial environments, it combines selectable wattage and colour temperature within a single luminaire, providing outstanding flexibility, energy efficiency and reliable emergency lighting.

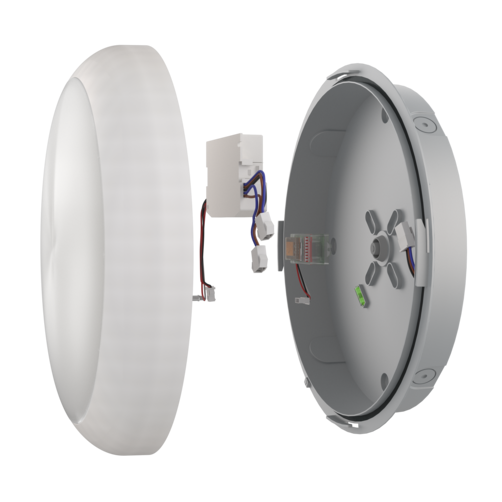

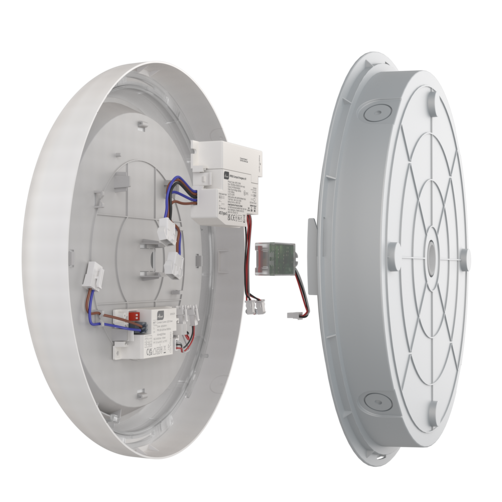

Manufactured from durable all-polycarbonate with an opal diffuser, the fitting is supplied with a white trim ring and can be customised using optional chrome, satin chrome or graphite trim ring accessories. The integrated gear tray bezel, built-in spirit level and four 20mm conduit entries enable quick installation, while selectable self-test or manual emergency testing simplifies ongoing maintenance.

Key Features

• IP65-rated LED bulkhead for indoor and outdoor applications

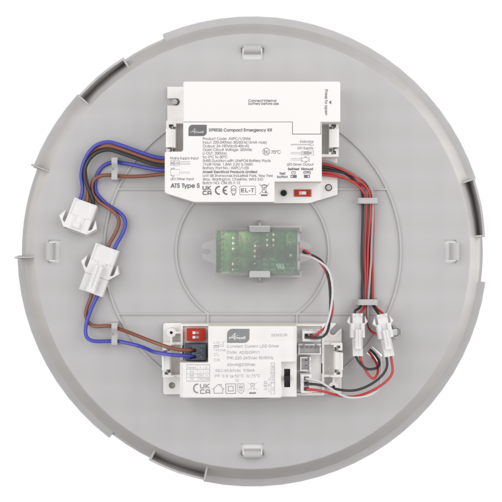

• Integrated XPRESS 3-hour emergency module
• Selectable self-test or manual emergency test modes
• Compatible with Ansell XPRESS microwave sensors
• Power selectable: 8W, 12W or 16W
• Colour temperature selectable: 3000K, 4000K or 6500K
• Delivers up to 2,300 lumens
• High efficiency of up to 145 lumens per watt
• All-polycarbonate construction with opal diffuser
• White trim supplied as standard with optional chrome, satin chrome or graphite trim rings available separately
• Instant full light output with unlimited switching cycles
• Built-in spirit level and four 20mm conduit entries for quick installation

Technical Specifications

• Product Code: ADIS2/2/SM3
• Power: Selectable 8W / 12W / 16W
• Colour Temperature: 3000K / 4000K / 6500K (Selectable)
• Lumen Output (4000K): 1,200lm (8W), 1,800lm (12W), 2,300lm (16W)
• Efficiency: 135-145 lm/W (4000K), up to 145 lm/W maximum
• CRI: Ra 80
• Voltage: 220-240V AC
• IP Rating: IP65
• Emergency Duration: 3 Hours
• Operating Temperature: 0°C to +40°C
• Diameter: 325mm
• Height: 85mm

Ideal Applications

The Ansell Disco EVO 2 XPRESS Self-Test Emergency Bulkhead is ideal for escape routes, communal corridors, stairwells, entrance areas, warehouses, industrial facilities, offices, educational buildings and commercial premises where reliable emergency lighting and flexible LED performance are required.

Data Sheet:

Download Data Sheet

Instruction Manual:

Download Instruction Manual
