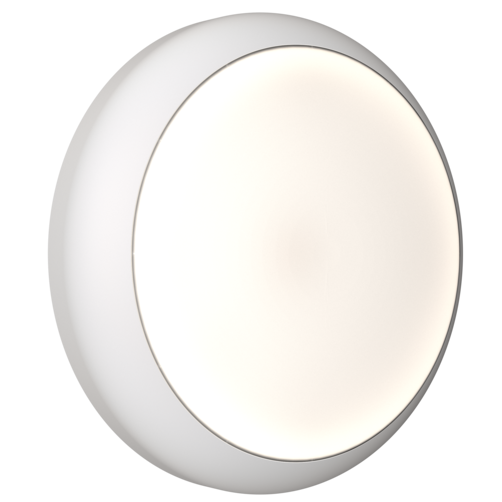

Ansell ADIS2/2/MWS/SM3 Disco EVO 2 XPRESS IP65 8W-16W CCT Adjustable LED Bulkhead with Self-Test Emergency & Microwave Sensor

The Ansell ADIS2/2/MWS/SM3 Disco EVO 2 XPRESS is a premium IP65-rated LED bulkhead that combines an integrated 3-hour self-test emergency module with a programmable XPRESS microwave sensor. Offering selectable wattage and colour temperature in one fitting, it provides exceptional flexibility, energy efficiency and dependable emergency lighting for residential, commercial and industrial environments.

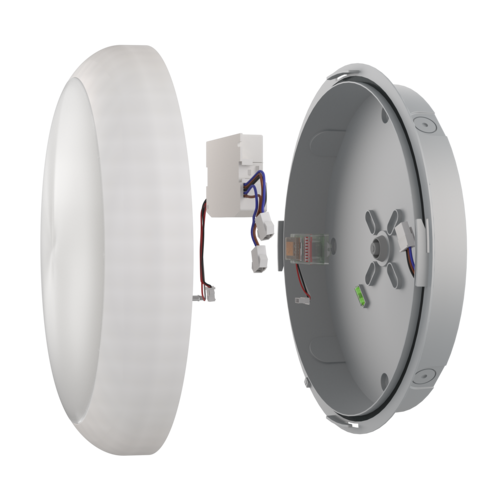

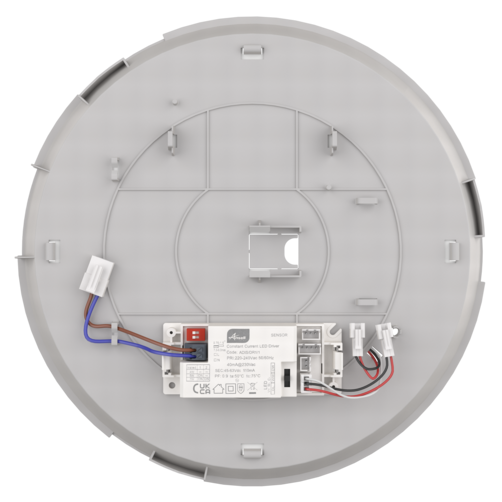

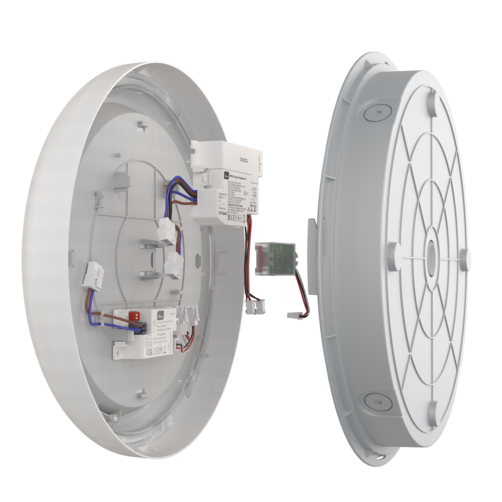

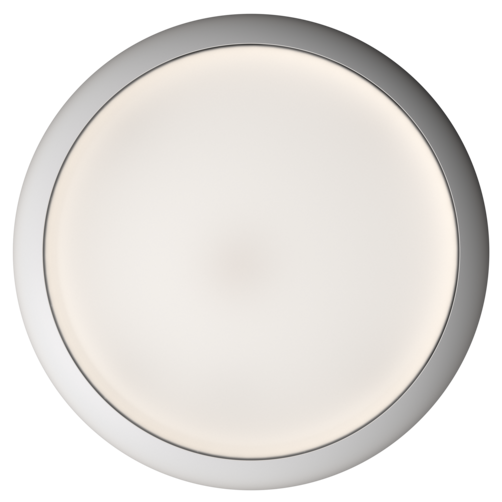

Manufactured from durable all-polycarbonate with an opal diffuser, the luminaire is supplied with a white trim ring and is compatible with optional chrome, satin chrome or graphite trim accessories. The integrated gear tray bezel, built-in spirit level and four 20mm conduit entries allow for fast installation, while the microwave sensor with corridor function helps minimise energy consumption.

Key Features

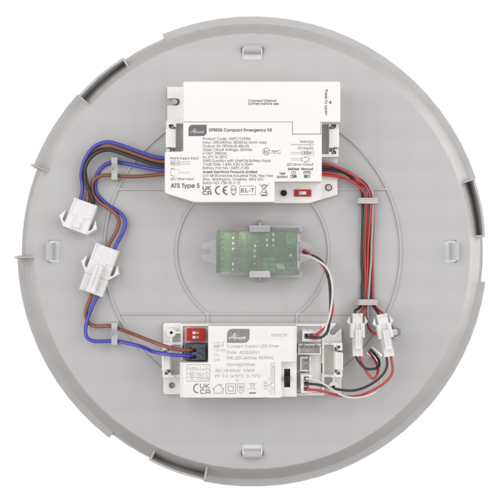

• IP65-rated LED bulkhead with integrated 3-hour self-test emergency module
• Pre-installed XPRESS microwave sensor with programmable corridor function
• Selectable self-test or manual emergency test modes
• Power selectable: 8W, 12W or 16W
• Colour temperature selectable: 3000K, 4000K or 6500K
• Delivers up to 2,300 lumens at 4000K
• High efficiency of up to 145 lumens per watt
• Durable all-polycarbonate construction with opal diffuser
• White trim supplied as standard with optional chrome, satin chrome or graphite trim rings available separately
• Instant full light output with unlimited switching cycles

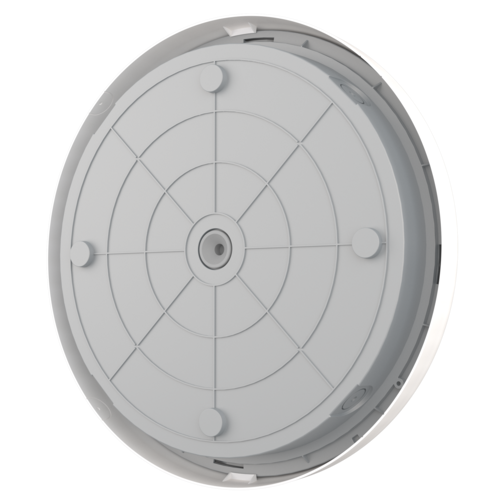

• Built-in spirit level and four 20mm conduit entries for quick installation

Technical Specifications

• Product Code: ADIS2/2/MWS/SM3
• Power: Selectable 8W / 12W / 16W
• Colour Temperature: 3000K / 4000K / 6500K (Selectable)
• Lumen Output (4000K): 1,200lm (8W), 1,800lm (12W), 2,300lm (16W)
• Efficiency: 135-145 lm/W (4000K), up to 145 lm/W maximum
• CRI: Ra 80
• Voltage: 220-240V AC
• IP Rating: IP65
• Emergency Duration: 3 Hours
• Operating Temperature: 0°C to +40°C
• Diameter: 325mm

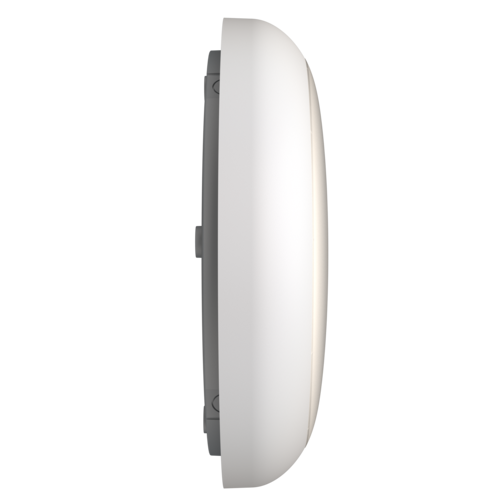

• Height: 85mm

Ideal Applications

The Ansell Disco EVO 2 XPRESS Emergency Bulkhead is ideal for escape routes, communal corridors, stairwells, entrance areas, warehouses, industrial facilities, educational buildings, offices and commercial premises where intelligent occupancy sensing and compliant emergency lighting are essential.
