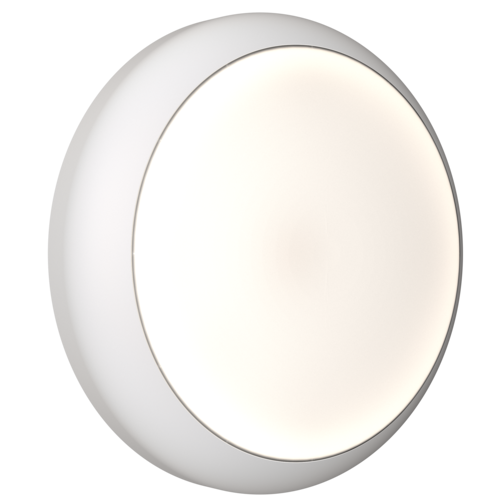

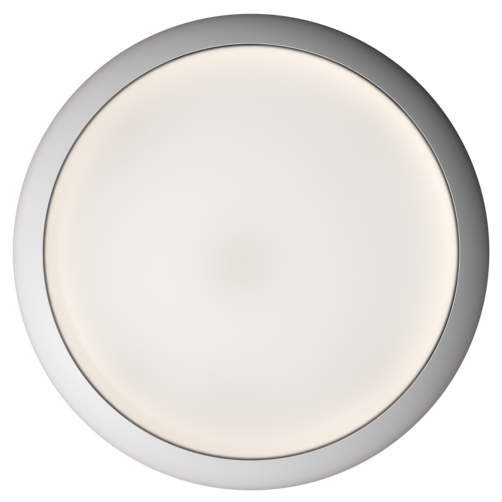

Ansell ADIS2/2/MWS Disco EVO 2 XPRESS IP65 8W-16W CCT Adjustable LED Bulkhead with Microwave Sensor

The Ansell ADIS2/2/MWS Disco EVO 2 XPRESS is a slim, modern IP65 LED bulkhead supplied with an integrated XPRESS microwave sensor for automatic lighting control. Designed for residential, commercial and industrial environments, it combines selectable wattage and CCT options in one fitting, helping reduce stock requirements while providing flexible, energy-efficient illumination.

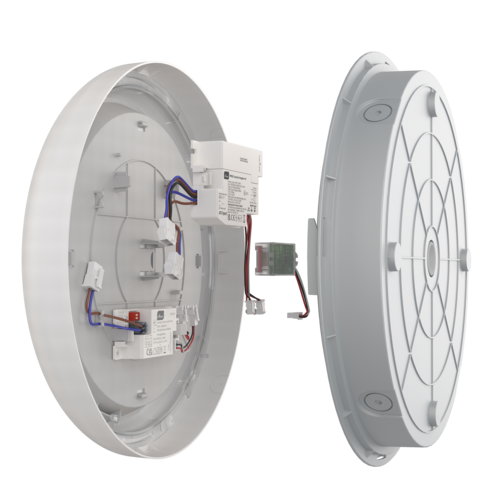

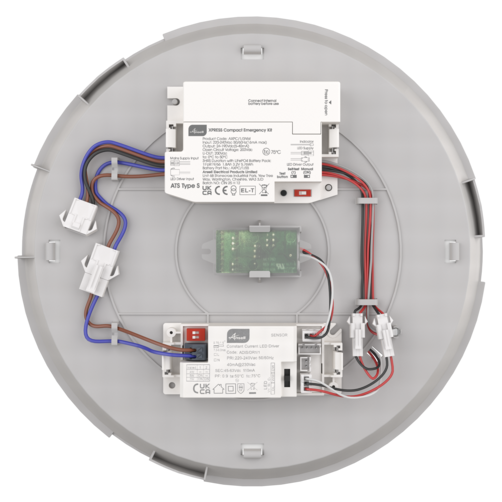

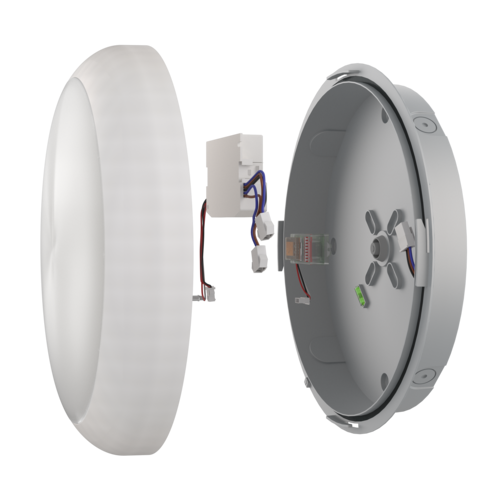

Built from durable all-polycarbonate with an opal diffuser and white trim as standard, this Disco EVO 2 bulkhead offers a clean appearance and robust performance. The pre-installed microwave sensor includes corridor function and is fully programmable via DIP switches, while the gear tray bezel, built-in spirit level and four 20mm conduit entries support quick installation.

Key Features

• IP65-rated LED bulkhead with integrated XPRESS microwave sensor
• Power selectable: 8W, 12W or 16W
• Colour temperature selectable: 3000K, 4000K or 6500K
• Delivers up to 2,300 lumens at 4000K
• High efficiency of up to 145 lumens per watt
• Programmable microwave sensor with corridor function
• Compatible with Ansell XPRESS emergency conversion packs
• All-polycarbonate construction with opal diffuser
• White trim supplied as standard with optional chrome, satin chrome or graphite trim rings available separately
• Instant light output with unlimited switching
• Built-in spirit level and four 20mm conduit entries for fast installation

Technical Specifications

• Product Code: ADIS2/2/MWS
• Power: Selectable 8W / 12W / 16W
• Colour Temperature: 3000K / 4000K / 6500K selectable
• Lumen Output at 4000K: 1,200lm, 1,800lm or 2,300lm
• Efficiency at 4000K: 135-145 lm/W
• Maximum Efficiency: Up to 145 lm/W
• CRI: Ra 80
• Input Voltage: 220-240V AC
• IP Rating: IP65
• Operating Temperature: -20°C to +40°C
• Diameter: 325mm
• Height: 85mm

Ideal Applications

The Ansell ADIS2/2/MWS Disco EVO 2 XPRESS bulkhead is ideal for corridors, stairwells, communal areas, entrance halls, utility spaces, warehouses, commercial premises and industrial buildings where dependable LED lighting with automatic occupancy detection is required.

Data Sheet:

Download Data Sheet

Instruction Manual:

Download Instruction Manual
