Ansell ADIS2/2 Disco EVO 2 XPRESS IP65 8W-16W CCT Adjustable LED Bulkhead

The Ansell ADIS2/2 Disco EVO 2 XPRESS is a high-performance IP65 LED bulkhead designed for residential, commercial and industrial applications. Combining selectable wattage and colour temperature in a single luminaire, it provides outstanding installation flexibility while delivering reliable, energy-efficient illumination of up to 2,300 lumens.

Manufactured from durable all-polycarbonate with an opal diffuser, the fitting is supplied with a white trim ring and can be customised using optional chrome, satin chrome or graphite trim ring accessories. The integrated gear tray bezel, built-in spirit level and four 20mm conduit entries enable quick and straightforward installation, while compatibility with Ansell XPRESS emergency modules and microwave sensors allows future upgrades.

Key Features

• IP65-rated LED bulkhead suitable for indoor and outdoor applications
• Power selectable: 8W, 12W or 16W
• Colour temperature selectable: 3000K, 4000K or 6500K
• Delivers up to 2,300 lumens
• High efficiency of up to 145 lumens per watt

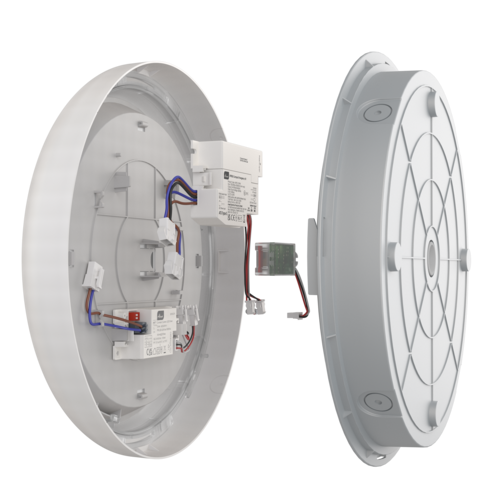

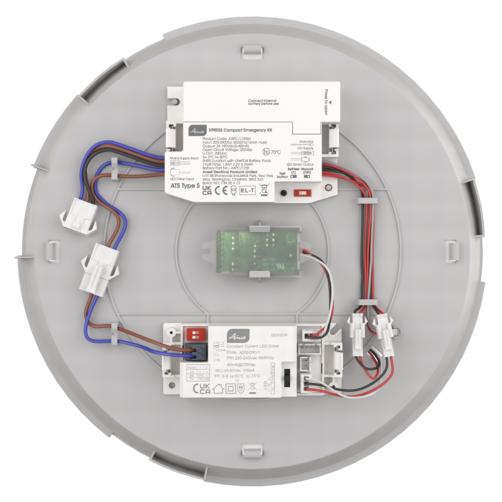

• Compatible with Ansell XPRESS emergency conversion packs and microwave sensors
• Durable all-polycarbonate construction with opal diffuser
• White trim supplied as standard with optional chrome, satin chrome or graphite trim rings available separately
• Instant full light output with unlimited switching cycles
• Built-in spirit level and four 20mm conduit entries for faster installation
• Ideal for residential, commercial, industrial and ancillary areas

Technical Specifications

• Product Code: ADIS2/2
• Power: Selectable 8W / 12W / 16W
• Colour Temperature: 3000K / 4000K / 6500K (Selectable)
• Lumen Output (4000K): 1,200lm (8W), 1,800lm (12W), 2,300lm (16W)
• Efficiency: 135-145 lm/W (4000K), up to 145 lm/W maximum
• CRI: Ra 80
• Voltage: 220-240V AC
• IP Rating: IP65
• Operating Temperature: -20°C to +40°C
• Diameter: 325mm
• Height: 85mm

Ideal Applications

The Ansell Disco EVO 2 XPRESS is ideal for communal areas, corridors, stairwells, entrance lobbies, utility rooms, warehouses, industrial buildings, educational facilities, commercial premises and other locations requiring a robust, energy-efficient LED bulkhead with flexible lighting options.

Data Sheet:

Download Data Sheet

Instruction Manual:

Download Instruction Manual
