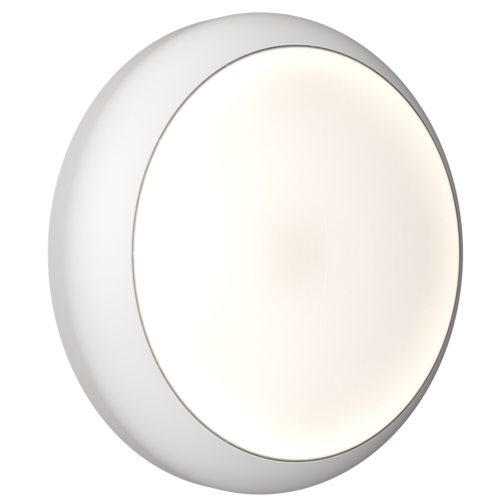

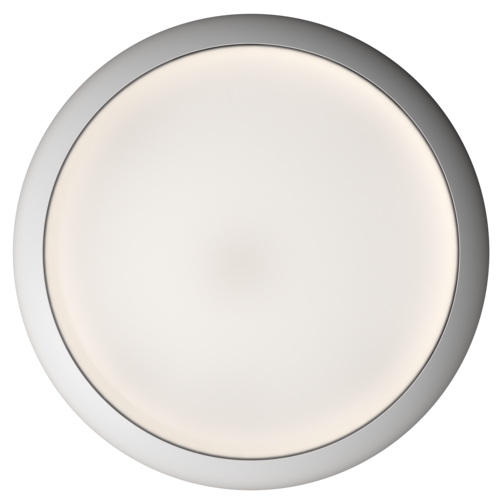

Ansell ADIS1/2/SM3 Disco EVO 1 XPRESS IP65 4W-7W CCT Adjustable LED Bulkhead with Self-Test Emergency

The Ansell ADIS1/2/SM3 Disco EVO 1 XPRESS is a slim, modern LED bulkhead with an integrated 3-hour self-test emergency module, making it an ideal solution for residential, commercial and industrial environments. Combining selectable wattage and colour temperature within a single fitting, it provides exceptional installation flexibility while delivering reliable, energy-efficient illumination.

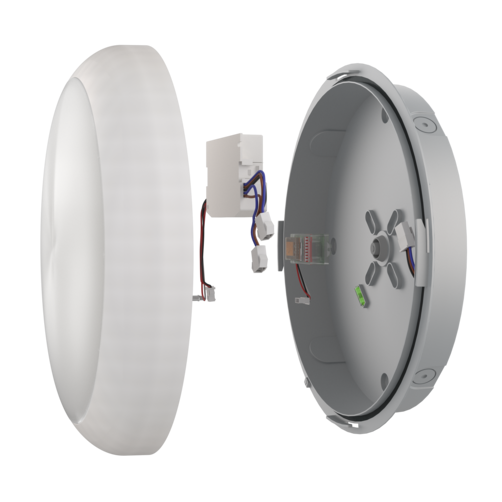

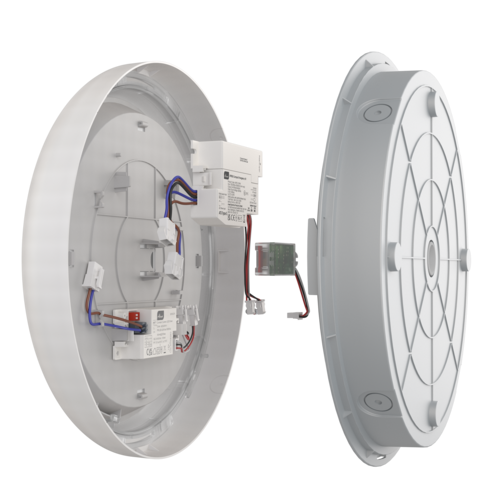

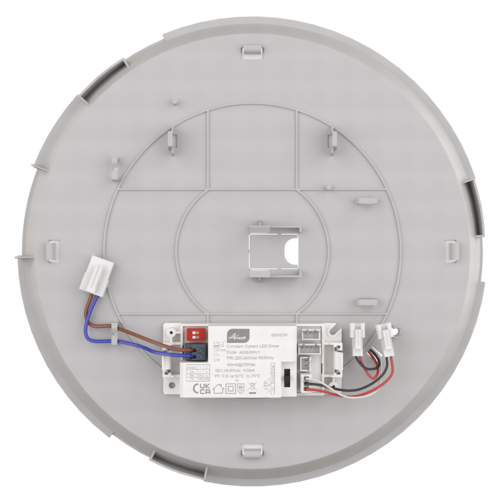

Manufactured from durable all-polycarbonate with an opal diffuser and white trim as standard, the fitting also supports optional chrome, satin chrome and graphite trim rings to suit a variety of interior and exterior applications. The integrated gear tray bezel and four 20mm conduit entries simplify installation, while selectable self-test or manual emergency testing ensures convenient ongoing maintenance.

Key Features

• IP65-rated LED bulkhead for indoor and outdoor installations

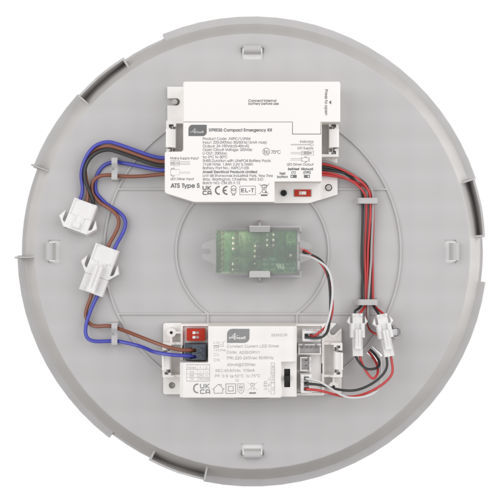

• Integrated 3-hour XPRESS emergency module
• Selectable self-test or manual emergency test modes
• Compatible with Ansell XPRESS microwave sensors
• Power selectable: 4W, 5W or 7W
• Colour temperature selectable: 3000K, 4000K or 6500K
• Delivers up to 910 lumens
• High efficiency of up to 145 lumens per watt
• Durable all-polycarbonate construction with opal diffuser
• White trim supplied as standard with optional chrome, satin chrome or graphite trim rings available separately
• Instant full light output with unlimited switching cycles

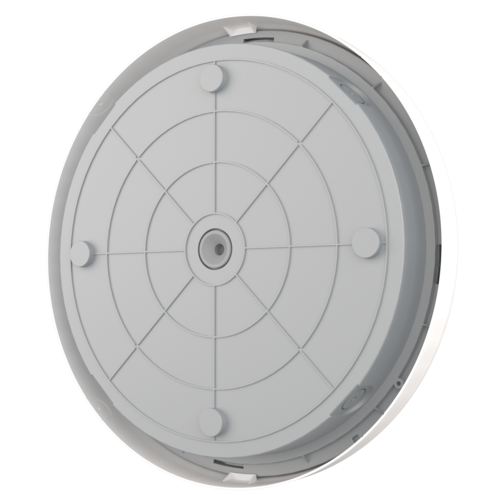

• Built-in spirit level and four 20mm conduit entries for fast installation

Technical Specifications

• Product Code: ADIS1/2/SM3
• Power: Selectable 4W / 5W / 7W
• Colour Temperature: 3000K / 4000K / 6500K (Selectable)
• Lumen Output (4000K): 480lm (4W), 650lm (5W), 910lm (7W)
• Efficiency: 110-130 lm/W (4000K), up to 145 lm/W maximum
• CRI: Ra 80
• Voltage: 220-240V AC
• IP Rating: IP65
• Emergency Duration: 3 Hours
• Operating Temperature: 0°C to +40°C
• Diameter: 275mm

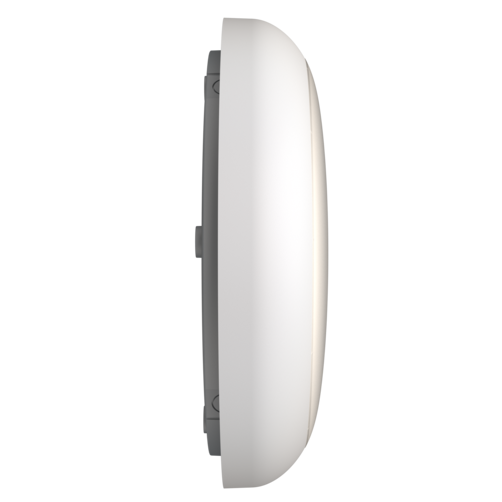

• Height: 84mm

Ideal Applications

The Ansell Disco EVO 1 XPRESS Self-Test Emergency Bulkhead is ideal for communal corridors, stairwells, escape routes, entrance areas, utility rooms, warehouses, industrial premises and commercial buildings where reliable emergency lighting and flexible performance are essential.

Data Sheet:

Download Data Sheet

Instruction Manual:

Download Instruction Manual
