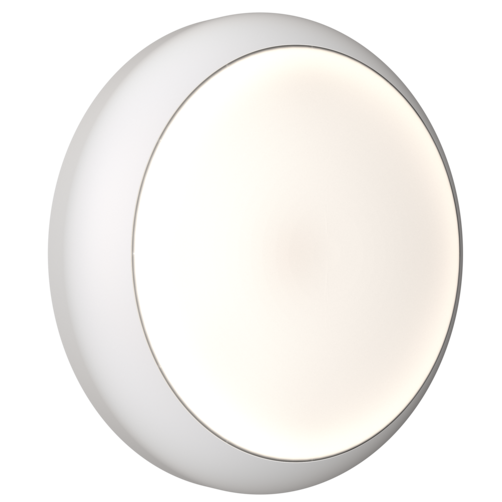

Ansell ADIS1/2/MWS/SM3 Disco EVO 1 XPRESS IP65 4W-7W CCT Adjustable LED Bulkhead with Self-Test Emergency & Microwave Sensor

The Ansell ADIS1/2/MWS/SM3 Disco EVO 1 XPRESS is a versatile IP65-rated LED bulkhead that combines an integrated 3-hour self-test emergency module with a programmable XPRESS microwave sensor. Designed for residential, commercial and industrial applications, this all-in-one fitting offers selectable wattage and colour temperature, delivering exceptional flexibility, energy efficiency and compliance for emergency lighting installations.

Constructed from durable all-polycarbonate with an opal diffuser and white trim as standard, the fitting also accepts optional chrome, satin chrome and graphite trim rings to complement different environments. The integrated gear tray bezel and four 20mm conduit entries provide fast, hassle-free installation, while the built-in microwave sensor with corridor function helps reduce energy consumption.

Key Features

• IP65-rated LED bulkhead suitable for indoor and outdoor applications
• Integrated 3-hour XPRESS self-test emergency module
• Pre-installed programmable XPRESS microwave sensor with corridor function
• Selectable self-test or manual emergency test modes
• Power selectable: 4W, 5W or 7W
• Colour temperature selectable: 3000K, 4000K or 6500K
• Delivers up to 910 lumens
• High efficiency of up to 145 lumens per watt

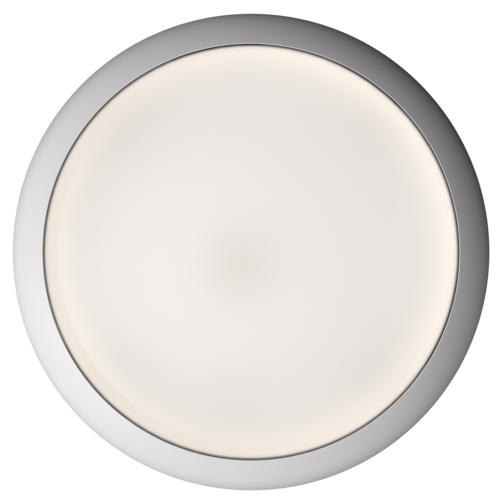

• All-polycarbonate construction with opal diffuser
• White trim supplied as standard with optional chrome, satin chrome or graphite trim rings available separately
• Instant full light output with unlimited switching cycles

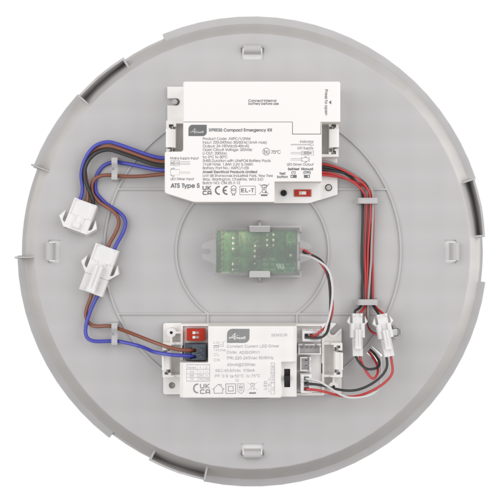

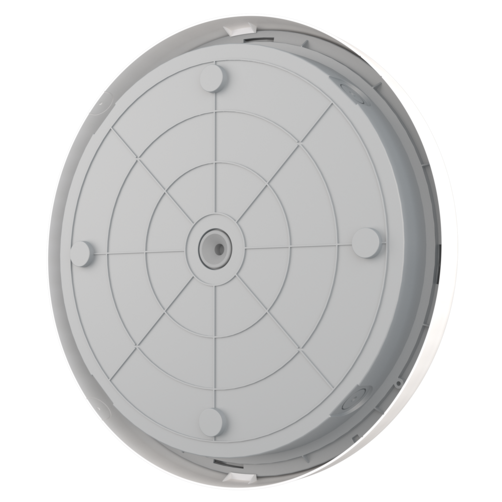

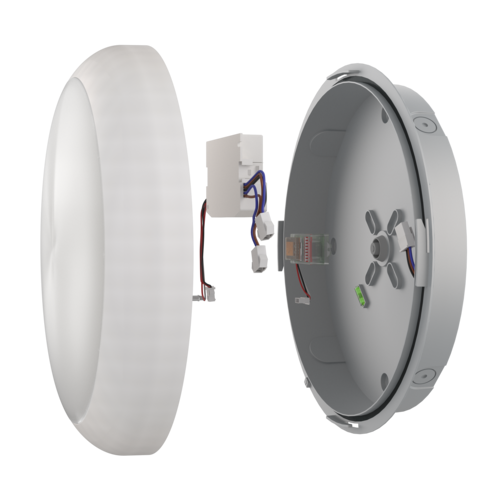

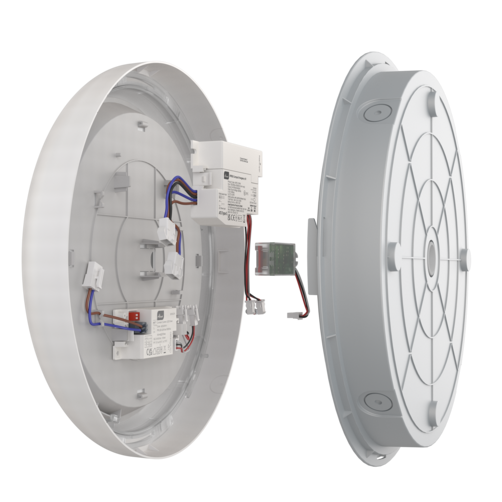

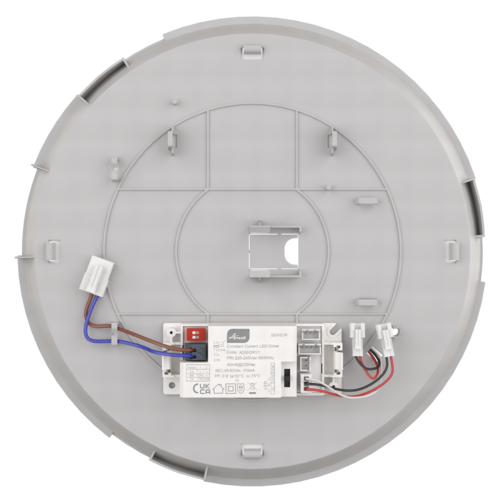

• Gear tray bezel and four 20mm conduit entries for quick installation

Technical Specifications

• Product Code: ADIS1/2/MWS/SM3
• Power: Selectable 4W / 5W / 7W
• Colour Temperature: 3000K / 4000K / 6500K (Selectable)
• Lumen Output (4000K): 480lm (4W), 650lm (5W), 910lm (7W)
• Efficiency: 110-130 lm/W (4000K), up to 145 lm/W maximum
• CRI: Ra 80
• Voltage: 220-240V AC
• IP Rating: IP65
• Emergency Duration: 3 Hours
• Operating Temperature: 0°C to +40°C
• Diameter: 275mm

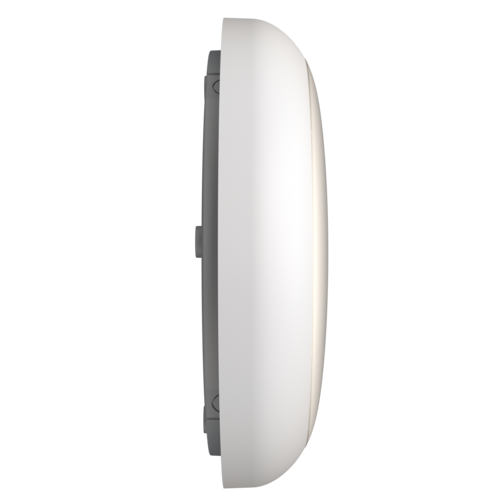

• Height: 84mm

Ideal Applications

The Ansell Disco EVO 1 XPRESS Emergency Bulkhead is ideal for communal corridors, stairwells, entrance areas, escape routes, warehouses, industrial facilities, commercial buildings and other locations requiring dependable emergency lighting with intelligent occupancy sensing and selectable light output.
