Ansell ADIS1/2/MWS Disco EVO 1 XPRESS IP65 4W-7W CCT Adjustable LED Bulkhead with Microwave Sensor

The Ansell ADIS1/2/MWS Disco EVO 1 XPRESS is a high-performance LED bulkhead featuring an integrated XPRESS microwave sensor for intelligent, energy-efficient lighting control. Designed for residential, commercial and industrial environments, this slim IP65-rated luminaire combines selectable wattage and colour temperature with advanced occupancy sensing to provide maximum flexibility and reduced energy consumption.

Manufactured from durable all-polycarbonate with an opal diffuser and white trim as standard, the fitting also supports optional chrome, satin chrome and graphite trim rings to suit a variety of installations. The pre-installed programmable microwave sensor includes a corridor function, while the gear tray bezel and four 20mm conduit entries ensure fast, straightforward installation.

Key Features

• IP65-rated LED bulkhead suitable for indoor and outdoor installations
• Integrated XPRESS microwave sensor with programmable corridor function
• Power selectable: 4W, 5W or 7W
• Colour temperature selectable: 3000K, 4000K or 6500K
• Delivers up to 910 lumens
• High efficiency of up to 145 lumens per watt
• Programmable microwave sensor via integrated DIP switches

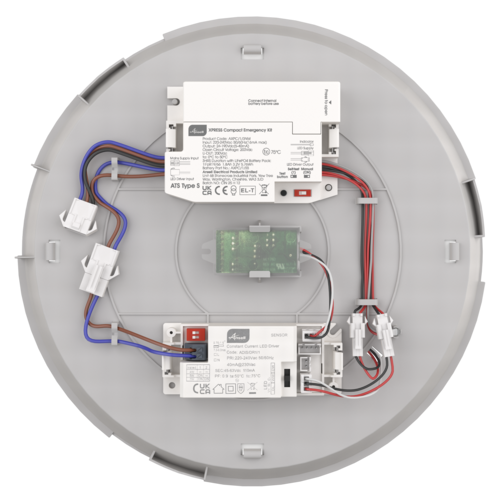

• Compatible with Ansell XPRESS emergency conversion packs
• All-polycarbonate construction with durable opal diffuser
• White trim supplied as standard with optional chrome, satin chrome or graphite trim rings available separately
• Instant full light output with unlimited switching cycles
• Four 20mm conduit entries for quick installation

Technical Specifications

• Product Code: ADIS1/2/MWS
• Power: Selectable 4W / 5W / 7W
• Colour Temperature: 3000K / 4000K / 6500K (Selectable)
• Lumen Output (4000K): 480lm (4W), 650lm (5W), 910lm (7W)
• Efficiency: 110-130 lm/W (4000K), up to 145 lm/W maximum
• CRI: Ra 80
• Voltage: 220-240V AC
• IP Rating: IP65
• Operating Temperature: -20°C to +40°C
• Diameter: 275mm
• Height: 84mm

Ideal Applications

The Ansell Disco EVO 1 XPRESS with integrated microwave sensor is ideal for communal corridors, stairwells, entrance halls, walkways, utility areas, warehouses, industrial buildings, commercial premises and other locations where automatic occupancy detection helps reduce energy usage while maintaining safe illumination.

Data Sheet:

Download Data Sheet

Instruction Manual:

Download Instruction Manual
