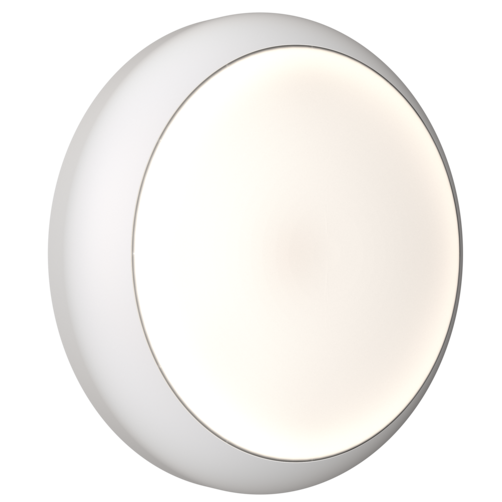

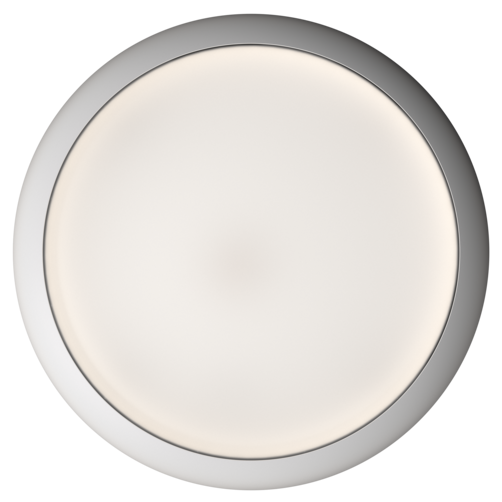

Ansell ADIS1/2 Disco EVO 1 XPRESS IP65 4W-7W CCT Adjustable LED Bulkhead

The Ansell ADIS1/2 Disco EVO 1 XPRESS is a slim, modern LED bulkhead designed for residential, commercial and industrial environments. Featuring selectable wattage and colour temperature in a single fitting, it offers exceptional installation flexibility while delivering reliable, energy-efficient illumination.

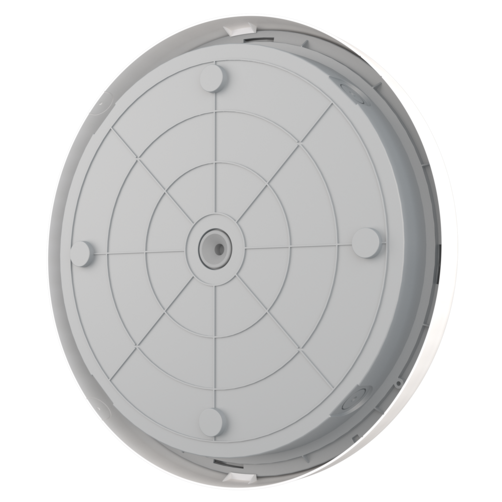

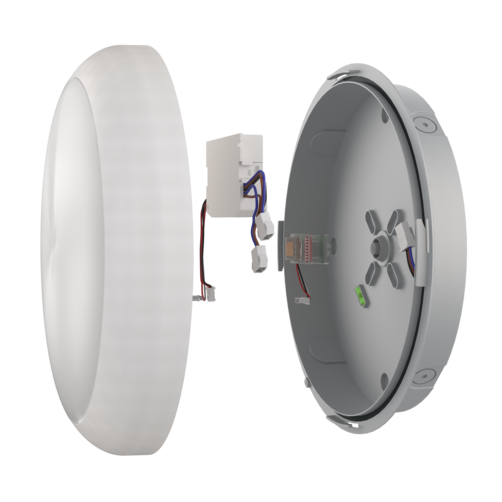

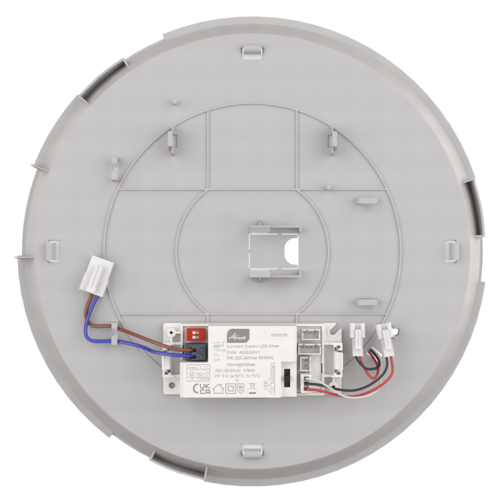

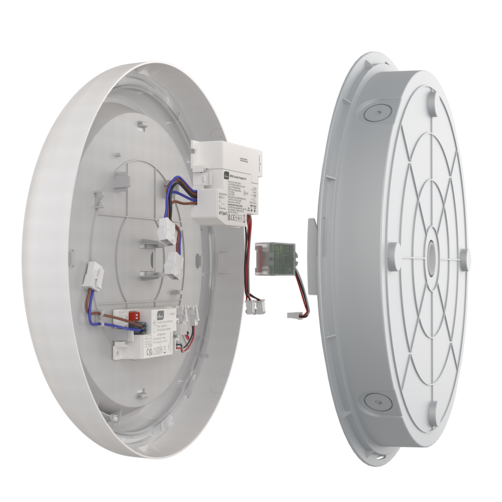

Constructed from durable polycarbonate with an opal diffuser and white trim as standard, the fitting also supports optional chrome, satin chrome and graphite trim rings to complement a wide range of interiors. The integrated gear tray bezel, built-in spirit level and four 20mm conduit entries enable quick and straightforward installation.

Key Features

• IP65-rated LED bulkhead for indoor and outdoor applications
• Power selectable: 4W, 5W or 7W
• Colour temperature selectable: 3000K, 4000K or 6500K
• Delivers up to 910 lumens
• High-efficiency performance of up to 145 lumens per watt
• Durable all-polycarbonate construction with opal diffuser
• White trim supplied as standard with optional chrome, satin chrome or graphite trim rings available separately

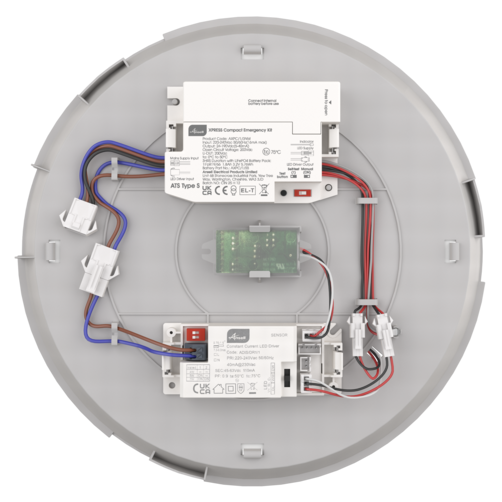

• Compatible with Ansell XPRESS emergency conversion packs and microwave sensors
• Instant full light output with unlimited switching cycles
• Built-in spirit level and four 20mm conduit entries for faster installation
• Suitable for residential, commercial, industrial and ancillary areas

Technical Specifications

• Product Code: ADIS1/2
• Power: Selectable 4W / 5W / 7W
• Colour Temperature: 3000K / 4000K / 6500K (Selectable)
• Lumen Output (4000K): 480lm (4W), 650lm (5W), 910lm (7W)
• Efficiency: 110-130 lm/W (4000K), up to 145 lm/W maximum
• CRI: Ra 80
• Voltage: 220-240V AC
• IP Rating: IP65
• Operating Temperature: -20°C to +40°C
• Diameter: 275mm

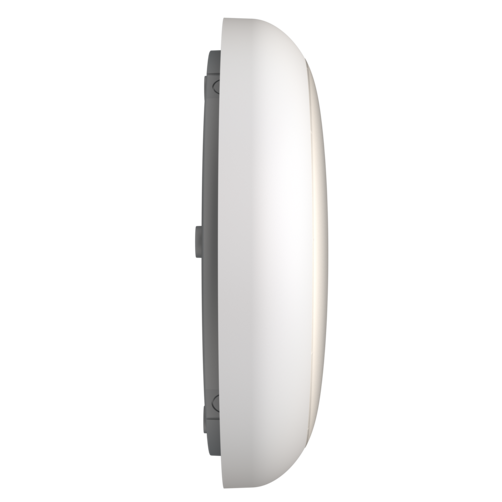

• Height: 84mm

Ideal Applications

The Ansell Disco EVO 1 XPRESS bulkhead is ideal for communal areas, corridors, stairwells, entrances, utility rooms, warehouses, industrial buildings, commercial premises and other indoor or outdoor locations requiring a robust, efficient and adaptable lighting solution.

Data Sheet:

Download Data Sheet

Instruction Manual:

Download Instruction Manual
