Ansell ABEA/1/B Beacon 2.5W IP20 LED Emergency Downlight Non-Maintained 5000K - Black

Product Overview

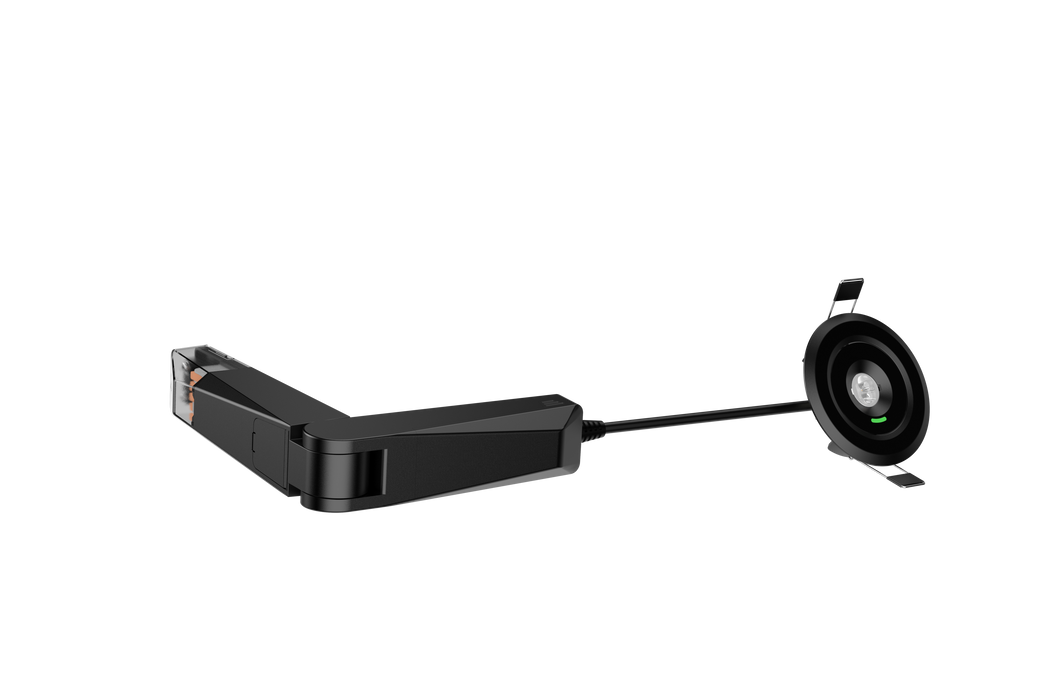

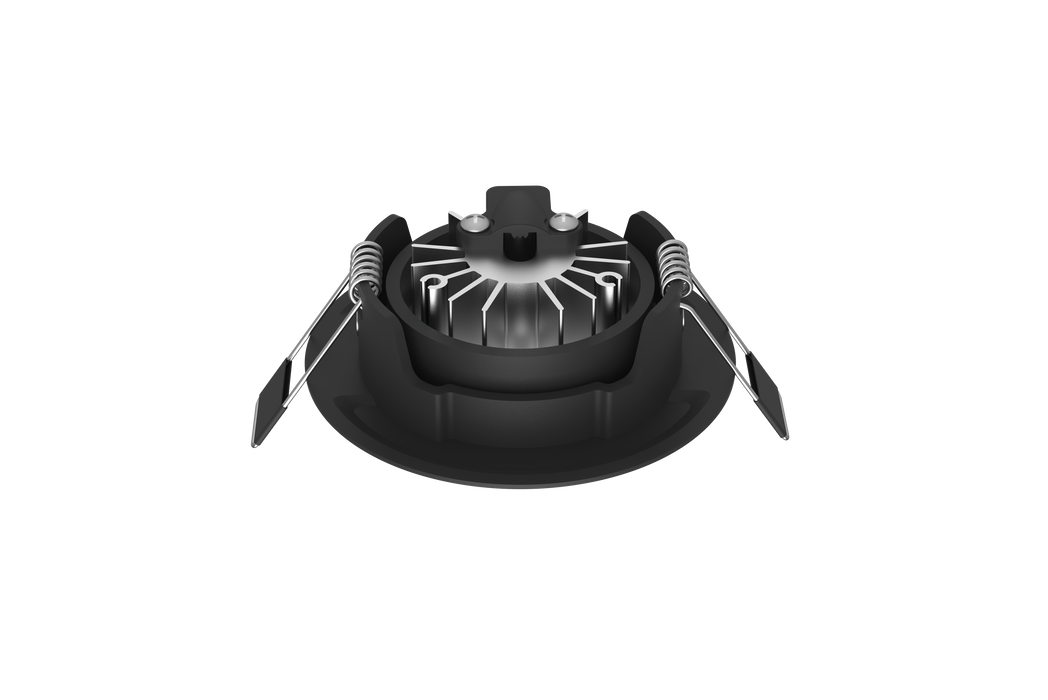

The Ansell ABEA/1/B Beacon is a compact 2.5W non-maintained LED emergency downlight designed for recessed installation in internal commercial and public environments. Finished in black and manufactured from durable polycarbonate, this adjustable emergency fitting delivers 250 lumens with a crisp 5000K colour temperature.

Featuring a long-life LiFePO4 lithium battery, the Beacon provides dependable emergency illumination while helping to enhance overall product lifetime. It is supplied with interchangeable open-area and escape-route lenses, allowing the light distribution to be configured to suit different emergency lighting applications. Selectable self-test and manual test functionality is provided as standard for convenient inspection and maintenance.

Key Features

• 2.5W non-maintained LED emergency downlight
• 250 lumen light output with 5000K colour temperature
• Selectable self-test and manual test functionality as standard
• LiFePO4 lithium battery for enhanced product lifetime and reliable performance
• Supplied with interchangeable open-area and escape-route lenses
• Open-area lens provides a wide 140° beam angle
• Escape-route lens provides a 160° x 40° beam distribution
• Adjustable polycarbonate construction
• Recessed mounting for a neat, discreet installation
• IP20 rated for internal applications
• IK06 impact resistance
• Class II protection
• Black finish

Dimensions

• Diameter: 80mm
• Height: 30mm

Specification

• Manufacturer: Ansell Lighting
• Product Range: Beacon
• Product Code: ABEA/1/B
• Colour / Finish: Black
• Material: Polycarbonate
• Emergency Function: Non-Maintained
• Testing: Selectable Self-Test / Manual Test
• Wattage: 2.5W
• Lumens Delivered: 250lm
• Colour Temperature: 5000K
• CRI: 70
• Beam Angle: Open Area - 140°; Escape Route - 160° x 40°
• Light Distribution: Symmetrical
• IP Rating: IP20
• IK Rating: IK06
• Mounting: Recessed
• Protection Class: Class II
• Application: Internal
• Input Voltage: 220-240V AC
• Frequency: 50/60Hz
• Operating Temperature: 0°C to +45°C

Data Sheet

Download Data Sheet

Instruction Manual

Download Instruction Manual
