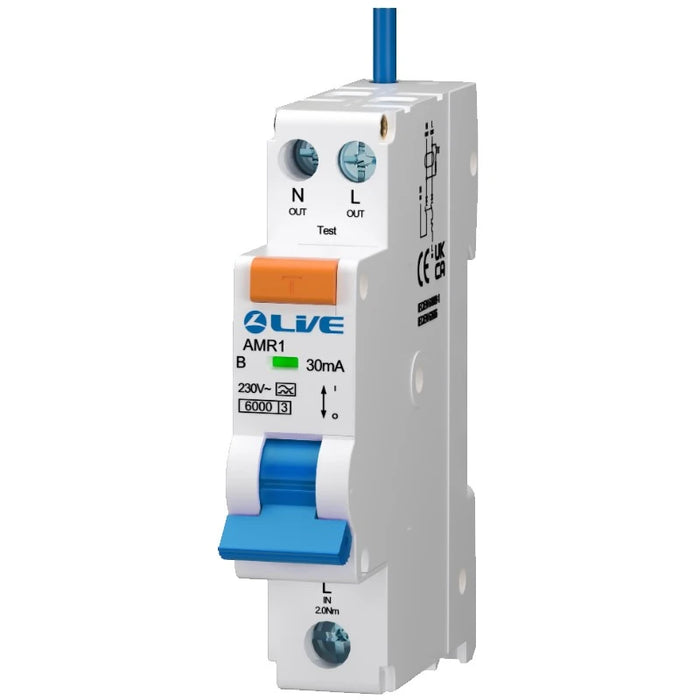

LIVE Electrical AMR140B-030 Single Module 40A B Curve 30mA Type A Bidirectional Mini RCBO
Product Description
Type A RCBO with Switched Neutral Line
AMR is a range of MCB sized RCBOs, apply to circuit of AC50/60Hz. Rated voltage to 230V, and current up to 40 A, bring higher levels of safety to an electrical installation and its users because they include switched neutral as standard, which will guarantee that healthy circuits remain in service and that only a faulty circuit is switched off .
Specification:
- Rated current (In): 40A.
- Rated voltage (Ue): 230V AC.
- Breaking capacity (Icn): 6kA.
- Rated residual current: 30mA.
- 1P+N.
- Tripping characteristic: B.
- Switching and isolation.
- Overload and short circuit protection.
- Type A detects and respond both AC and pulsating DC.
- Indirect and direct contacts protection.
- Protection against fire hazard caused by insulation faults.
- Bidirectional.
- Electrical endurance: 400 cycles.
- Mechanical endurance: 100000 cycles.
- Complies with BS EN 61009-1.
- Type: A.
- Terminal cable capacity maximum: IN:16mm2, OUT:10mm2.
