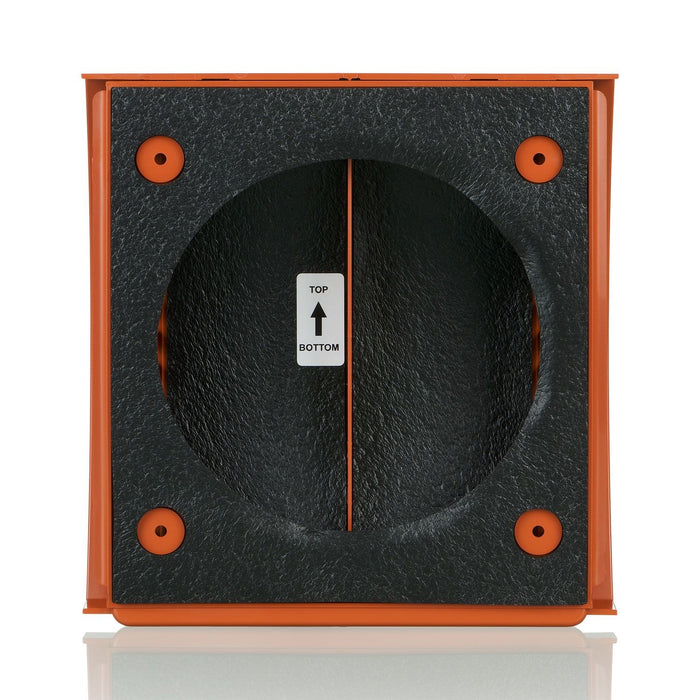

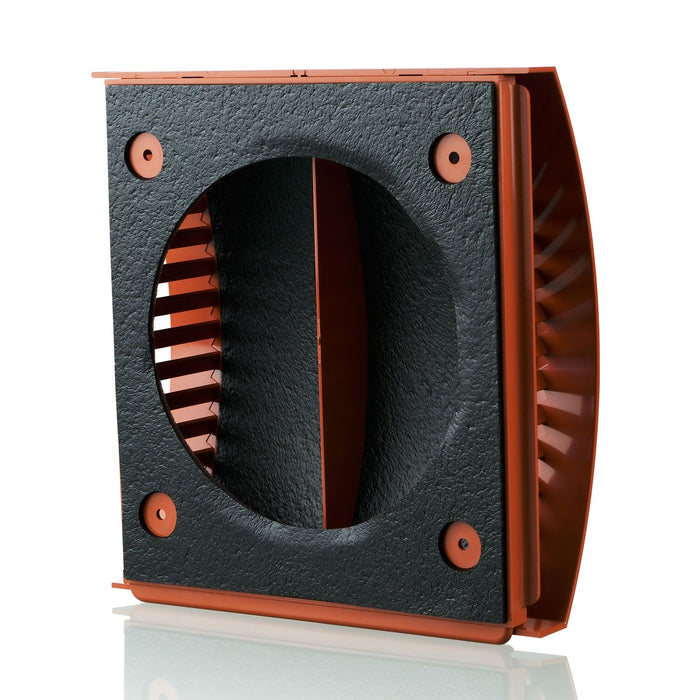

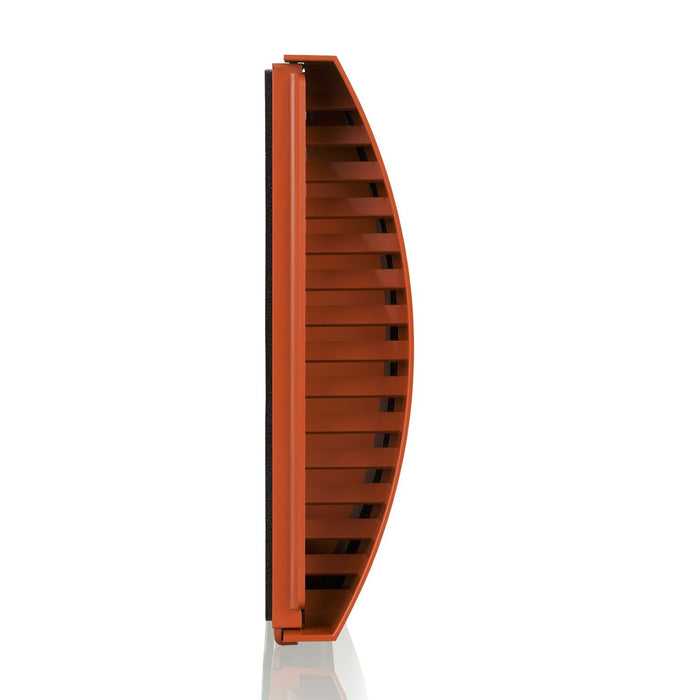

Blauberg AH-10-150-TERRACOTTA External Wall Wind Sound Baffle Vent Cover Draft 6" 150mm

Product Description
A brilliantly designed external wall vent that meets the needs of any ventilation system. They look great, reduce internal and external noise, and are easy to fit onto any external wall.
The Blauberg AH-10 vent cover will flush fit to an external wall and will also accept a 150mm 6" diameter duct depending on which size you order.
When used and an air intake vent serving a heat recovery system (MVHR), positive input ventilation (PIV), mechanical extract system (MEV) or single room heat recovery unit, air is drawn in from opposite sides of the vent through louverd vents. Air also passes over a sound adsorbing lining to dampen airborne noise. This ensures weatherproofing and reduced noise without the need of a mechanical shutter or noisy back draft flap.
As an air extract vent, expelling dirty air from a heat recovery system, bathroom extractor fan or kitchen cooker hood, air passes over an airflow splitter and noise dampening liner. Extract air is then pushed horizontally out of either side of the grille and slotted louvred vents.
When used with a Blauberg single room heat recovery unit, the airflow splitter within the vent acts to separate intake and extract airflow. Both airflow's are then forced horizontally out of either side of the vent and through louvred vent to stop any cross contamination.
The stylish outer cowl is aesthetically pleasing and will suite any modern building or blend into a traditional house. A small drip tray is also included to direct any condensated water away from a wall or window.

Features

• Modern, wind and sound reducing wall mounted baffle vent with UV protection.
• Suitable for any ventilation system when terminating intake or extract ducts to outside.
• Flush fitting, and will accept 150mm 6" diameter ducts.
• Use for kitchen cooker hoods, extractor fans & tumble dryers.
• Preferred choice for MVHR, MEV, dMEV & heat recovery systems.
• Removable hood for easy cleaning with drip tray.
• Finished in UV protected terracotta PVC.

Data Sheet:

Click Here for Data Sheet

Data Sheet:

Click Here for Installation Guide
