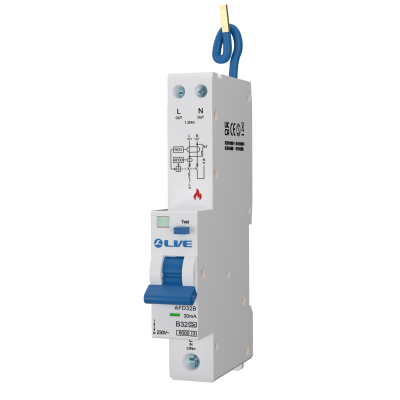

LIVE Electrical AFD32B 32A B Curve Type A Arc Fault Detection Device AFDD with RCBO

Name: LIVE Electrical AFD32B 32A B Curve Type A Arc Fault Detection Device AFDD with RCBO
Brand: LIVE Electrical
SKU: AFD32B
Price: 86.47 GBP
Availability: InStock

LIVE Electrical AFD32B 32A B Curve Type A Arc Fault Detection Device AFDD with RCBO

Availability:

IN STOCK

SKU AFD32B

£87.62

£87.62 - £87.62

£87.62

£72.06

Exc VAT

£86.47

Inc VAT

£86.47 - £86.47

£86.47

£72.06 - £72.06

£86.47

Product Description

Customer Reviews

LIVE Electrical AFD32B 32A B Curve Type A Arc Fault Detection Device AFDD with RCBO

Product Description

6kA Arc Fault Detection Device With RCBO

The AFD series arc fault protector combines arc fault detection with RCBO protection. The AFD series arc fault protector has the functions of short circuit protection, overload protection, leakage protection and arc fault protection.

AFD series arc fault protection devices are designed for use on circuits rated up to 32A and below to protect against arc faults, overloads, short circuits and leakage. When the AFD series arc fault protection devices detect the presence of arc faults in the line, they will automatically trip and isolate the circuit.

Specification:

Rated working voltage (Ue): AC230V
Rated operating frequency: ±50Hz 2%
Rated insulation voltage (Ui): 400V
Rated impulse withstand voltage (Uimp): 4kV
Rated current (In): 32A
Number of N poles: 1P+N
Protection Curve B
Operating short-circuit capacity (Ics): 6kA
Rated residual operating currentI?n: 30mA
RCD Type: A
Insulation material group: ?a
Ambient Temperature range: -5~40^oC
Storage Temperature range: -25^oC ~ +55^oC

Data Sheet:

Click Here for Data Sheet

LIVE Electrical Catalogue:

Click Here for LIVE Electrical Catalogue:
