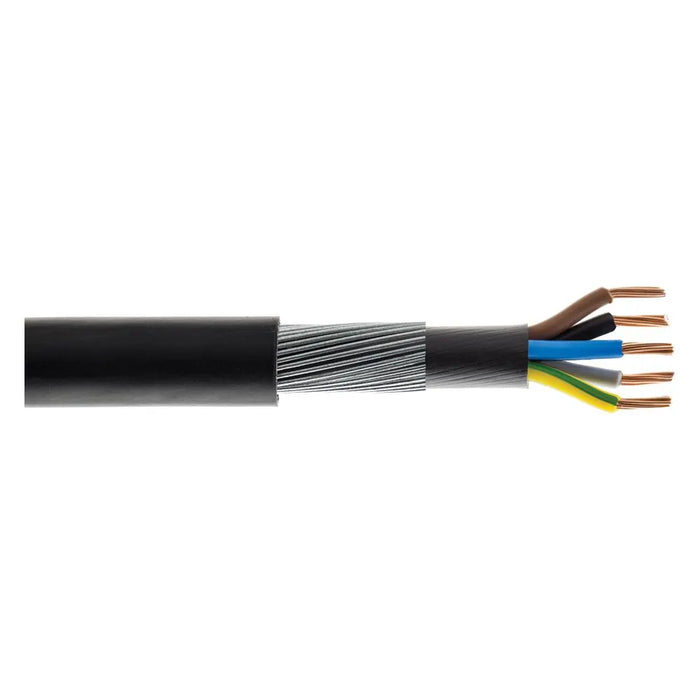

6945B 5 Core Steel Wire Armoured SWA LSZH 10.0mm Black Cable - Cut to Length sold per 1 metre

Product Overview

The 6945B 5 Core Steel Wire Armoured (SWA) 10.0mm Black Cable is a high-performance power and control cable engineered to withstand heavy mechanical stress and challenging environments. It is suitable for underground installations and outdoor use, providing strong protection against damage. This cable is designed for direct burial and can also be installed on cable trays, baskets, surface clips, or in free air runs.

With its robust construction and reliable performance, this SWA cable is perfect for industrial electrical systems, outdoor power distribution, and demanding high-load applications.

Certifications & Standards

• CE Marked
• BASEC Approved
• ISO 9001 Certified
• Complies with BS EN 5467
• LSZH sheath for enhanced fire safety

Key Specifications

• Cable Code: 6945B
• Type: 5 Core Steel Wire Armoured (SWA) LSZH
• Core Size: 10.0mm
• Outer Sheath Colour: Black
• Inner Core Colours: Green/Yellow, Blue, Brown, Black & Grey
• Number of Cores: 5
• Material: LSZH (Low Smoke Zero Halogen) Sheath, XLPE (Cross-linked Polyethylene) Insulation, Copper conductor
• Profile: Round
• Voltage Rating: 600/1000V
• Operating Temperature Range: -20°C to +90°C
• Short Circuit Temperature: 250°C
• Length: Supplied cut to length per metre
• Typical Application: Outdoor power distribution, industrial machinery, and heavy-duty circuits
