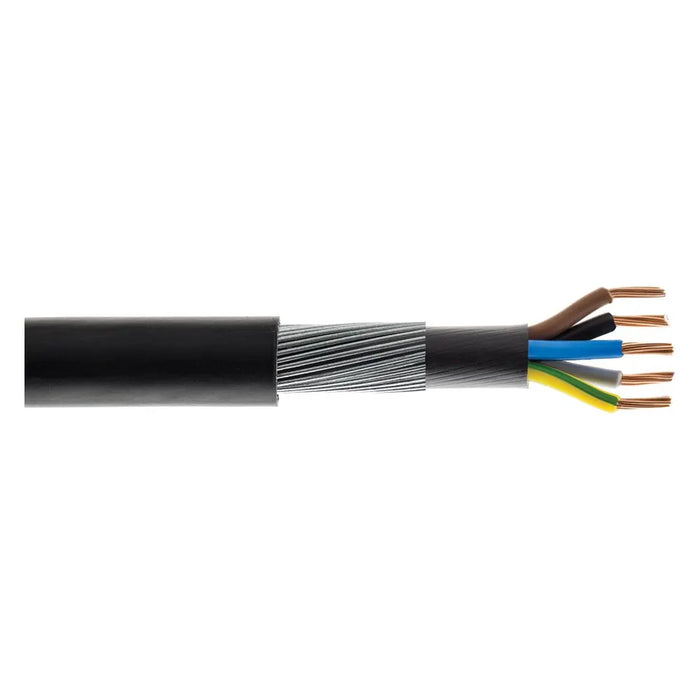

6945B 5 Core Steel Wire Armoured SWA LSZH 1.5mm Black Cable - Cut to Length sold per 1 metre

Product Overview

The 6945B 5 Core Steel Wire Armoured (SWA) 1.5mm Black Cable is a durable power and auxiliary control cable, designed for installations where there is a high risk of mechanical stress or damage. Ideal for both underground installations and outdoor applications, this SWA cable is suitable for direct burial as well as surface mounting on cable trays, baskets, clips, or free air runs.

Manufactured to the highest standards, this cable provides excellent protection and reliability for demanding environments, making it a trusted choice for outdoor lighting, power distribution and other heavy-duty uses.

Certifications & Standards

• CE Marked
• BASEC Approved
• ISO 9001 Quality Standard
• Complies with BS EN 5467
• LSZH sheath for enhanced fire safety

Key Specifications

• Cable Code: 6945B
• Type: 5 Core Steel Wire Armoured (SWA) LSZH
• Core Size: 1.5mm
• Outer Sheath Colour: Black
• Inner Core Colours: Green/Yellow, Blue, Brown, Black & Grey
• Number of Cores: 5
• Material: LSZH (Low Smoke Zero Halogen) Sheath, XLPE (Cross-linked Polyethylene) Insulation, Copper conductor
• Profile: Round
• Voltage Rating: 600/1000V
• Operating Temperature: -20°C to +90°C
• Short Circuit Temperature: 250°C
• Length: Supplied cut to length per metre
• Typical Application: Outdoor lighting and general power distribution
