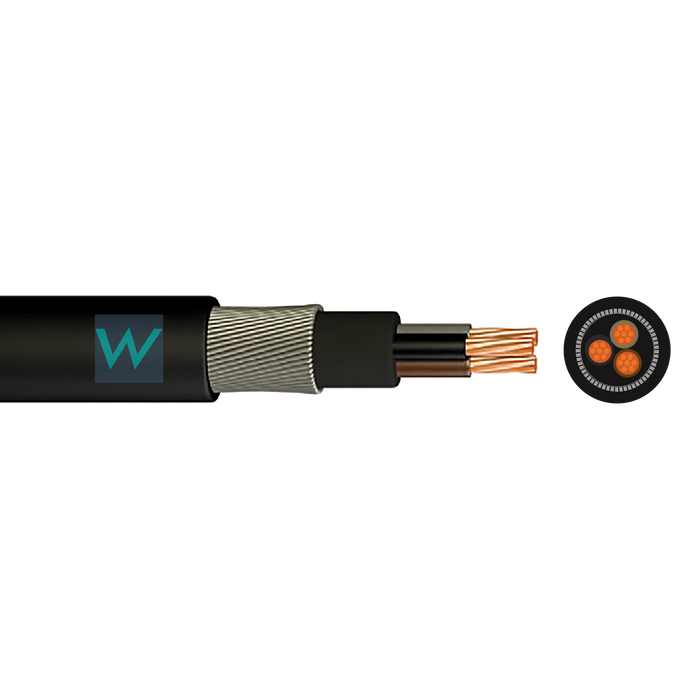

6943B 3 Core Steel Wire Armoured SWA LSZH 16.0mm Black Cable - Cut to Length sold per 1 metre

Product Overview

The 6943B 3 Core Steel Wire Armoured (SWA) 16.0mm Black Cable is a heavy-duty power and auxiliary control cable designed for maximum durability in demanding conditions. It provides excellent resistance to mechanical stress, impact, and environmental damage, making it ideal for underground installations and outdoor use.

Suitable for direct burial as well as installation on cable trays, baskets, clips, or in free air runs, this armoured cable ensures long-term reliability. It is widely used in industrial applications, high-load power distribution, and heavy machinery supplies.

Certifications & Standards

• CE Marked
• BASEC Approved
• ISO 9001 Certified
• Manufactured to BS EN 5467
• LSZH sheath for enhanced fire safety

Key Specifications

• Cable Code: 6943B
• Type: 3 Core Steel Wire Armoured (SWA) LSZH
• Core Size: 16.0mm
• Outer Sheath Colour: Black
• Inner Core Colours: Brown, Black & Grey
• Number of Cores: 3
• Material: LSZH (Low Smoke Zero Halogen) Sheath, XLPE (Cross-linked Polyethylene) Insulation, Copper conductor
• Profile: Round
• Voltage Rating: 600/1000V
• Operating Temperature Range: -20°C to +90°C
• Short Circuit Temperature: 250°C
• Length: Supplied cut to length per metre
• Typical Application: Outdoor power networks, industrial systems, and high-capacity electrical installations
