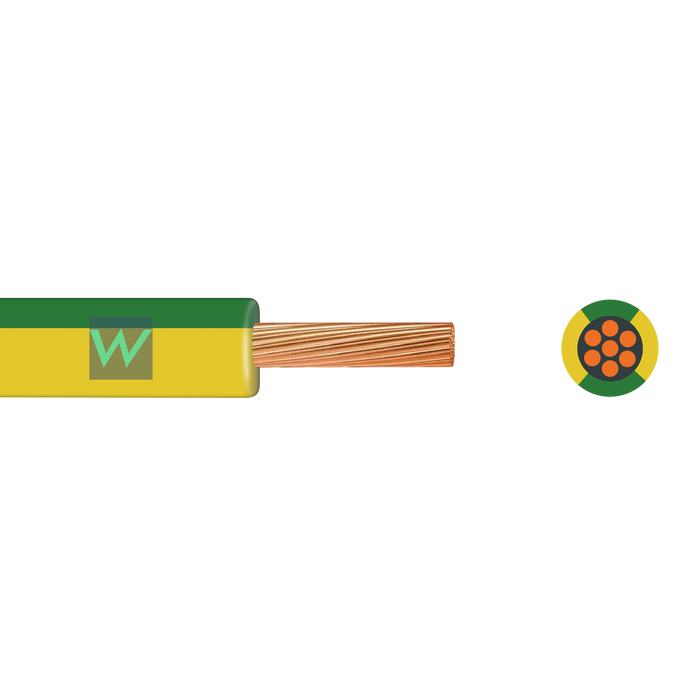

6491X Single Core 16.0mm Green/Yellow Cable - 25m

Product Overview

The 6491X Single Core 16.0mm² Green/Yellow Cable (H07V-R stranded) is designed for earth bonding, grounding, and protective conductor applications in electrical installations. It is suitable for use in semi-flush exposed conduits, embedded conduits, and enclosed trunking systems, making it ideal for power and lighting circuits as well as internal wiring of appliances, switchgear, and control gear.

Complying with BS EN 50525-2-31 standards, this cable provides excellent flexibility, durability, and safety. It is CE marked, BASEC approved, UKCA certified, and ISO 9001 compliant, ensuring quality performance and reliability for professional electrical use.

Key Features

• Cable Type: 6491X H07V-R Single Core Cable
• Conductor Size: 16.0mm²
• Cable Length: 25m
• Conductor Type: Stranded copper for flexibility and high conductivity
• Outer Sheath Colour: Green/Yellow (for use as Earth bonding or grounding)
• Insulation Material: PVC insulation offering strong mechanical and thermal resistance
• Cable Profile: Round
• Current Rating: 98A
• Resistance: 1.15 Ω/km
• Voltage Rating: 450/750V
• Standard: BS EN 50525-2-31 / BS6004 compliant
• Certifications: CE Marked, BASEC Approved, UKCA, ISO 9001 Certified

Applications

The 6491X 16.0mm² Green/Yellow Cable is primarily used for earth bonding and grounding connections to ensure electrical safety and protection. It is also suitable for use in switchgear, lighting, and appliance wiring, and for installation in conduits, trunking, or enclosed electrical systems across commercial, industrial, and domestic environments.
