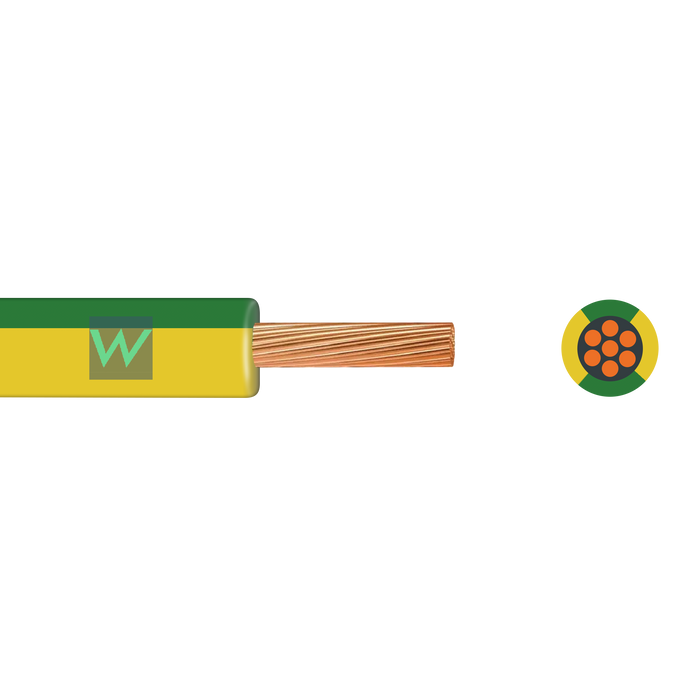

6491X Single Core 16.0mm Green/Yellow Cable - 100m Drum

Product Overview

The 6491X Single Core 16.0mm² Green/Yellow Cable (H07V-R stranded) is a high-performance cable designed for earth bonding, power, and lighting circuits within electrical installations. It is suitable for use in semi-flush exposed conduits, embedded conduits, and enclosed trunking systems. This cable is also widely used for the internal wiring of appliances, switchgear, and control gear.

Compliant with BS EN 50525-2-31 and manufactured to the highest quality standards, this cable ensures safe, reliable, and efficient electrical connections. It is CE marked, BASEC approved, UKCA certified, and ISO 9001 compliant, offering complete assurance for professional installations.

Key Features

• Cable Type: 6491X H07V-R Single Core Cable
• Conductor Size: 16.0mm²
• Cable Length: 100m drum
• Conductor Type: Stranded copper for excellent flexibility and conductivity
• Outer Sheath Colour: Green/Yellow (for use as Earth bonding or grounding)
• Insulation Material: PVC insulation providing high durability and heat resistance
• Cable Profile: Round
• Current Rating: 98A
• Resistance: 1.15 Ω/km
• Voltage Rating: 450/750V
• Standard: BS EN 50525-2-31 / BS6004 compliant
• Certifications: CE Marked, BASEC Approved, UKCA, ISO 9001 Certified

Applications

The 6491X 16.0mm² Green/Yellow Cable is primarily used for earth bonding and grounding applications, ensuring electrical safety and fault protection. It is also suitable for fixed installations in conduits, trunking, switchgear, and control panels, as well as internal wiring of appliances and apparatus in both domestic and commercial environments.
