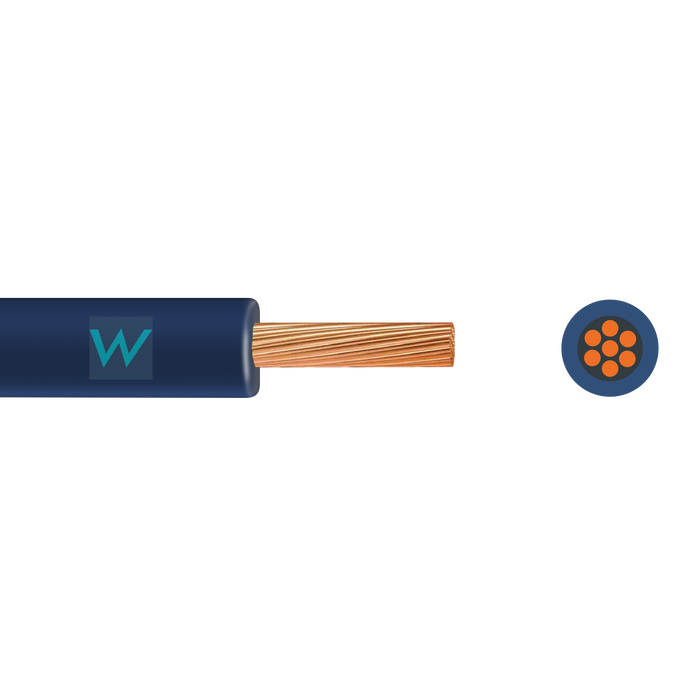

6491X Single Core 16.0mm Blue Cable - 100m Drum

Product Overview

The 6491X Single Core 16.0mm² Blue Cable (H07V-R stranded) is a high-quality, BASEC-approved cable designed for power and lighting circuits, building wiring, and internal electrical installations. Suitable for use in semi-flush exposed conduits, embedded conduits, and closed installation ducts, it’s also ideal for internal wiring of appliances, switchgear, and control gear.

Manufactured to BS EN 50525-2-31 standards, this cable offers excellent flexibility, conductivity, and insulation performance. It is CE marked, BASEC approved, UKCA certified, and ISO 9001 compliant, ensuring reliability and compliance for professional installations.

Key Features

• Cable Type: 6491X H07V-R Single Core Cable
• Conductor Size: 16.0mm²
• Cable Length: 100m drum
• Conductor Type: Stranded copper for enhanced flexibility and performance
• Outer Sheath Colour: Blue (typically used for neutral conductors)
• Insulation Material: PVC insulation for durability and electrical safety
• Cable Profile: Round
• Current Rating: 98A
• Resistance: 1.15 Ω/km
• Voltage Rating: 450/750V
• Standard: BS EN 50525-2-31 / BS6004 compliant
• Certifications: CE Marked, BASEC Approved, UKCA, ISO 9001 Certified

Applications

The 6491X 16.0mm² Blue Cable is widely used in electrical distribution systems for lighting and power circuits, as well as in switchgear, control panels, and internal appliance wiring. It’s suitable for fixed installations in conduits, trunking, or other enclosed systems, making it a versatile solution for both domestic and commercial wiring projects.
