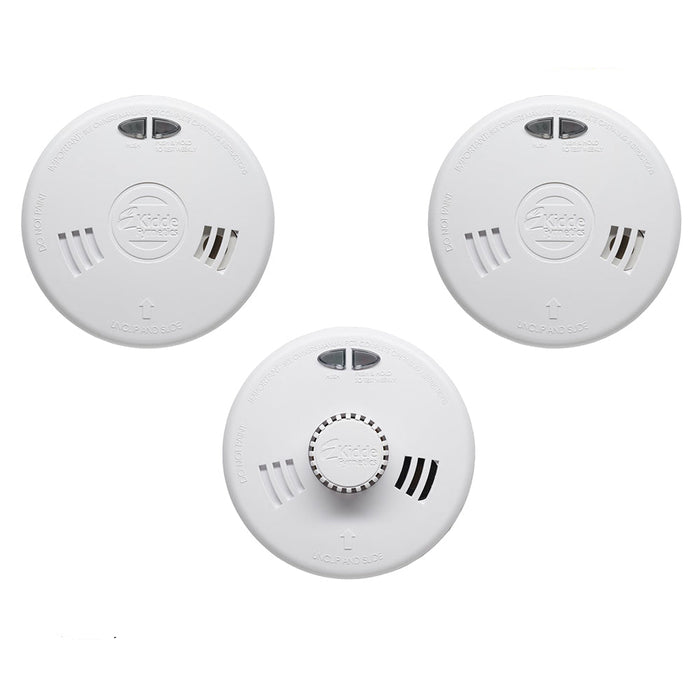

Kidde Slick 2x 2SFWR Optical Smoke & 1x 3SFWR Heat Alarm Kit Mains Powered with Sealed-In Rechargeable Battery Back-Up

Kidde Slick 2x 2SFWR Optical Smoke & 1x 3SFWR Heat Alarm Kit Mains Powered with Sealed-In Rechargeable Battery Back-Up

FULLY COMPLY WITH THE NEW 2022 SCOTTISH & WELSH REGULATIONS

2x Mains Powered Optical Smoke Alarm (2SFWR):

Mains Optical Smoke Alarm Features:

Mains-powered Optical smoke alarm from the ‘Slick’ range of fast-fit alarms that can be interconnected with up to 23 other Kidde and Firex mains alarms.
Optional wireless capability using Wireless Alarm Base (RF-SFTP) for wire-free interconnection.
The ‘Slick’ range requires installation by a professionally qualified electrician and complies with UK Building Regulations for new housing and associated standards (Grade D, BS5839, Part 6).

• Unique fast-fit system with separate base plate, for ease of fitting and maintenance
• Integral, double-decker screwless terminal block for fast, push-fit connection
• Auto reset after activation
• Separate Test and Hush buttons to test and temporarily silence nuisance alarms
• Sealed-in rechargeable Lithium cell for 6 months continuous operation in event of mains failure
• Interconnectable with other Kidde mains smoke and heat alarms and Kidde mains CO alarms using ‘Smart Interconnect’ technology
• Tamper-resistant locking device – prevents unauthorised removal without the use of a tool
• Wireless capability – use with optional Wireless Alarm Base (RF-SFTP) for RF interlink function
• Deep Base – allows easier wiring
• Tamper-proof batteries – sealed-in to prevent removal

Mains Optical Smoke Alarm Specification:

• Model 2SFWR
• Power Supply 230V mains powered with rechargeable sealed-in Lithium cells
• Temperature Range 0ºC to +40ºC
• Humidity Range Up to 93% Relative Humidity (RH) non-condensing
• Storage and Transport -20ºC to +60ºC and 5–95% relative humidity (RH) non-condensing
• Alarm Dimensions 135 x 135 x 60mm (including ‘Slick’ mounting base)
• Alarm Weight 247g
• Warranty 10 years (including batteries)
• Approvals BSI certified to BS EN14604:2005
• CE tested and certified
• Associated Standard BS 5839 Part 6 Grade D
• Sensor Optical chamber with insect-resistant width slot entry inlet portals
• Chamber Size 41mm outside diameter x 16mm approximate depth (external)
• Sensitivity Complies with BS EN14604:2005
• Detection Band infrared light wavelength
• Button Test Simulates the effect of smoke within the sensing chamber, checks electronics and sounder
• Automatic Self-test Circuitry is tested every 40 seconds and unit beeps if fault is detected
• Supply Voltage 230V AC, 50 Hz (nominal UK voltage)
• Power Consumption Maximum 80mA
• Battery Back-up Non user-replaceable 4 x 3V rechargeable Lithium cells (ML 2430)
• Battery Monitoring Battery is monitored and unit emits a single chirp every 40 seconds if a fault is present
• Low Battery Warning 30-day low battery indicator
• Power-on Indicator Continuous green LED
• Alarm Sounder Electronic piezo-electric sounder (T3 pattern sound - three pulses - space - three pulses)
• Sound Output 85dB (A) minimum at 3 metres
• Alarm Frequency 3.2 kHz typical
• Alarm Status Red LED flashes rapidly, typically once every 2/3 seconds = unit sensing a fire event
• Red LED flashes once every 10 seconds = unit in hush condition, auto reset after 7 minutes
• Red LED flashes once every 35 seconds = normal quiescent operation
• Interconnection Up to 24 units (smoke, heat and CO) can be hardwire interconnected using SMART® interconnect system with optional control (see below)
• Up to 15 units can be wireless interconnected using appropriate Wireless Base RF-SFTP
• Optional Controls Wireless Base Remote Test and Hush Unit (KN-RTH-RF) when used with Wireless Base
• Fixing ‘Slick’ mounting deep base as supplied
• Base Cable Connect. Screwless Terminal Block with slot release feature for conductors

1x Mains Powered Heat Alarm (3SFWR):

Mains Heat Alarm Features:

Mains powered heat alarm from the ‘Slick’ range of fast-fit alarms that can be interconnected with up to 23 other Kidde and Firex mains alarms.
Optional wireless capability using Wireless Alarm Base (RF-SFTP) for wire-free interconnection.
Ionisation alarms are for use in areas where there is danger from fast-flaming fires.
The ‘Slick’ range requires installation by a professionally qualified electrician and complies with UK Building Regulations for new housing and associated standards (Grade D, BS5839, Part 6).

• Unique fast-fit system with separate base plate, for ease of fitting and maintenance
• Integral, double-decker screwless terminal block for fast, push-fit connection
• Auto reset after activation with latching LED allowing the initiating alarm to be identified
• Separate Test and Hush buttons to test and temporarily silence nuisance alarms
• Sealed-in rechargeable Lithium cell for 6 months continuous operation in event of mains failure
• Interconnectable with other Kidde mains smoke and heat alarms and Kidde mains CO alarms using ‘Smart Interconnect’ technology
• Tamper-resistant locking device – prevents unauthorised removal without the use of a tool
• Wireless capability – use with optional Wireless Alarm Base (RF-SFTP) for RF interlink function
• Deep Base – allows easier wiring
• Tamper-proof batteries – sealed-in to prevent removal

Mains Heat Alarm Specification:

• Model 3SFWR
• Power Supply 230V mains powered with rechargeable sealed-in Lithium cell
• Temperature Range 0ºC to +40ºC
• Humidity Range Up to 93% Relative Humidity (RH) non-condensing
• Storage and Transport -20oC to +60oC and 5 – 95% relative humidity (RH) non-condensing
• Alarm Dimensions 135 x 135 x 60mm (including ‘Slick’ mounting base)
• Alarm Weight 240g
• Warranty 10 years (including battery
• Approvals BSI certified to BS5446 Part 2:2003
• CE tested and certified
• Associated Standard BS 5839 Part 6 Grade D
• Sensor Thermistor (Thermal resistor) within detection unit
• Sensitivity Complies with BS 5446 Part2:2003, as a Class A2 device, alarms between 54ºC and 70ºC
• Button Test Simulates the effect of heat at the sensor, checks electronics and sounder
• Automatic Self-test Circuitry is tested every 40 seconds and unit beeps if fault is detected
• Supply Voltage 230V AC, 50 Hz (nominal UK voltage)
• Power Consumption Maximum 80mA
• Battery Back-up Non user-replaceable Lithium Polymer Cell
• Battery Monitoring Battery is monitored and unit emits a single chirp every 40 seconds if a fault is present
• Low Battery Warning 30-day low battery indicator
• Power-on Indicator Continuous green LED
• Alarm Sounder Electronic piezo-electric sounder (T3 pattern sound - three pulses - space - three pulses)
• Sound Output 85dB (A) minimum at 3 metres
• Alarm Frequency 3.2 kHz typical
• Alarm Status Red LED flashes rapidly, typically once every 2/3 seconds = unit sensing a fire event
• Red LED double flashes every 30 seconds = unit is triggering unit (press test button to unlatch)
• Red LED flashes once every ten seconds = in hush condition (auto-reset after 7 minutes)
• Red LED flashes once every 35 seconds = normal quiescent operation
• Interconnection Up to 24 units (smoke, heat and CO) can be hardwire interconnected using SMART® interconnect system with optional control (see below)
• Up to 15 units can be wireless interconnected using appropriate Wireless Base RF-SFTP
• Optional Controls Wireless Base Remote Test and Hush Unit (KN-RTH-RF) when used with Wireless Base
• Fixing ‘Slick’ mounting deep base as supplied
• Base Cable Connect. Screwless Terminal Block with slot release feature for conductor

Please note: Alarms are sold individually.

Data Sheet:

Instruction Manual:
