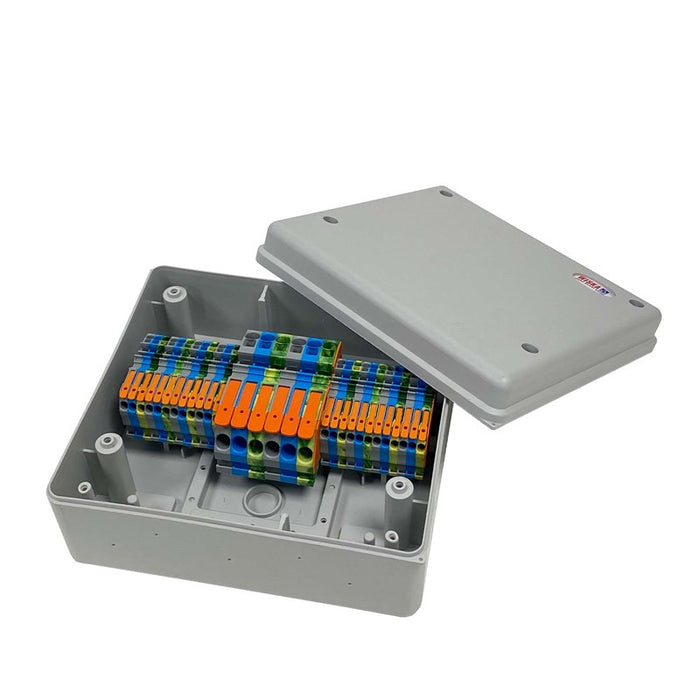

Wiska 10111966 818CUR/L 215 x 200 x 95mm, Polycarbonate Consumer Unit Relocation Kit Complete with Lever Terminals, Light Grey

Description

The Consumer Unit Relocator (CUR) is our latest solution offering the perfect solution when relocating a consumer unit in a domestic dwelling. Complete with WAGO Conductor DIN-rail terminals with Lever and Push-in.

The enclosure comes complete with the following WAGO connectors:

• 2102-1201 - Grey 2 conductor DIN-rail terminal with Lever and Push-in up to 4mm
• 2102-1204 - Blue 2 conductor DIN-rail terminal with Lever and Push-in up to 4mm
• 2102-1207 - Green/Yellow 2 conductor DIN-rail terminal with Lever and Push-in up to 4mm
• 2102-1292 - Orange Endplate for 2102
• 2110-1201 - Grey 2 conductor DIN-rail terminal with Lever and Push-in up to 16mm
• 2110-1204 - Blue 2 conductor DIN-rail terminal with Lever and Push-in up to 16mm
• 2110-1207 - Green/Yellow 2 conductor DIN-rail terminal with Lever and push-in up to 16mm
• 2110-1292 - Orange Endplate for 2110

Features

• Type: 818 CUR/L
• Material: Polycarbonate
• Temp. range min: -25 ^oC
• Temp. range max: 85 ^oC
• Protection class: IP65
• Glow wire test: 650 ^oC
• Impact resistance: IK08
• External dimensions LxWxH: 215x200x95mm
