Wiska 10109900 COMBI 206 Junction Box + 3x 3-pole WAGO 221-413 Connectors - Black
SKU 10109900
Availability:
IN STOCK
Original price
£5.79
-
Original price
£5.79
Original price
£5.79
Inc VAT
£4.83
Exc VAT
£5.79
-
£5.79
Current price
£4.83
£4.83
-
£4.83
Current price
£4.83

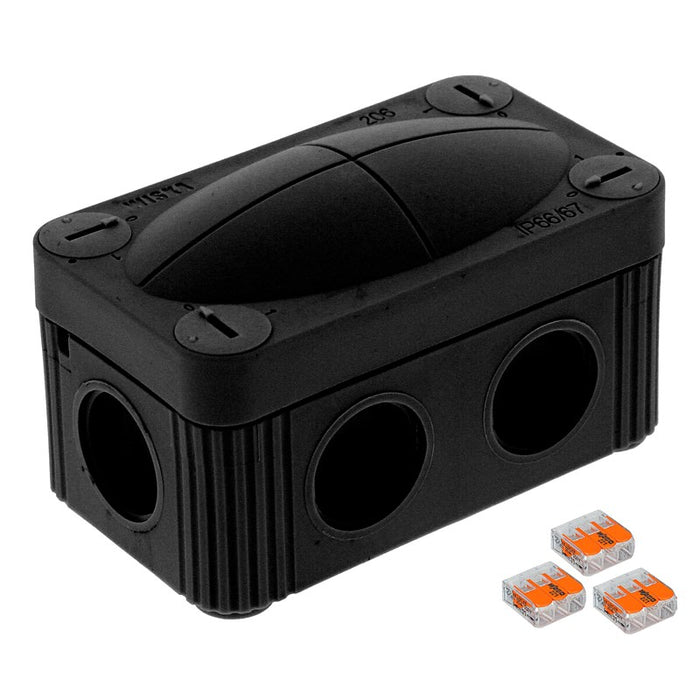

Wiska 10109900 COMBI 206 Junction Box + 3x 3-pole WAGO 221-413 Connectors - Black
Features
- Type: COMBI 206/3-221-413
- Colour: Black
- Terminal Type: 3x 3-pole WAGO 221
- Material: Polypropylene
- Material sealing gasket: TPE
- Temp. range min: -30 °C
- Temp. range max: 100 °C
- Temperatures during install: -5 °C - 60 °C
- Protection class: IP66 / IP67
- Glow wire test: 750 °C
- Voltage: 400 V
- Rated cross section: 1,5 mm²
- Terminals/poles: 4 mm²
- Fixing: 4 internal openings
- Ø cable diameter min: 3 mm
- Ø cable diameter max: 12 mm
- External dimensions LxWxH: 85 x 49 x 51mm
- ETIM-Classification: EC002600
IP66: using the membrane entry
IP67: using the threaded entry together with ESKV cable gland
Equipment:
6 M20 threaded membrane entries
2 membrane cable entries through rear
4 captive cover screws
including 3x WAGO 221-413 enclosed loose
Fixing:
With 4 internal openings outside of the sealing area
Data Sheet:
Data Sheet:
Click Here for Data Sheet
