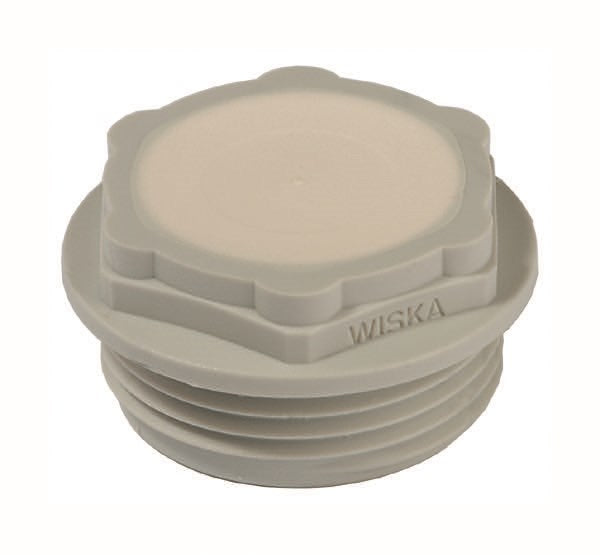

Wiska 10062567 QUIXX EMS 16 IP66 M16x1.5mm Membrane Screw- Light Grey

Wiska 10062567 QUIXX EMS 16 IP66 M16x1.5mm Membrane Screw - Light Grey

Innovative two-component cable entry made of high-quality plastics. This is inserted from the outside into a metric hole without thread, no assembly tool or locknut required. Can be used in enclosures with wall thicknesses of 0.2 mm or more. The cable is inserted through the soft membrane and securely sealed, also suitable for special cables or the insertion of several cables.

Features

• Type: EMS 16 LG
• Material: Polypropylene
• Material membrane: TPE
• Temp. range min: -30 °C
• Temp. range max: 80 °C
• Protection class: IP66
• Thread type: M
• Ø Connection thread D: 16
• Lead: 1.5
• Length screw-in thread L: 9 mm
• Ø cable diameter min: 1 mm
• Ø cable diameter max: 9 mm
• Key width SW: 17 mm
• Collar diameter (E): 20 mm
• Total length TL: 15 mm
