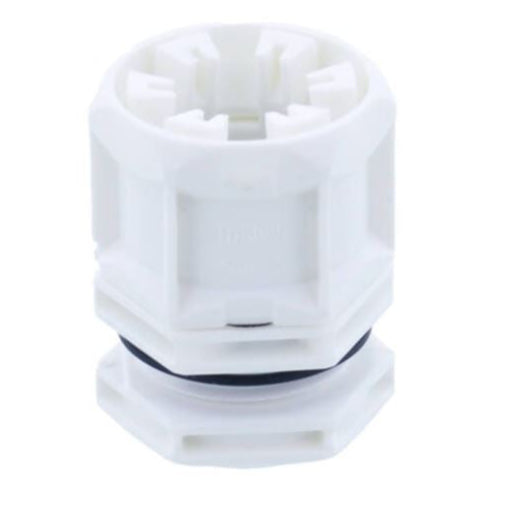

Wiska 10112913 TRISHOT ETKV-SET 20mm Cable Gland and Locknut White
SKU 10112913
Availability:
Dispatch in 2-3 Days
Original price
£0.46
Original price
£0.46
-
Original price
£0.46
Original price
£0.46
Current price
£0.34
Inc VAT
Current price
£0.28
Exc VAT
£0.34
-
£0.34
Current price
£0.28
£0.28
-
£0.28
Current price
£0.28
Wiska 10112913 TRISHOT ETKV-SET 20mm Cable Gland and Locknut White
Product Description
Introducing TriShot: the future of cable glands!
The TriShot cable gland is more than just a new cable gland. It is the result of our continued drive to push boundries and possibilities. To be a pioneer and lead the way through 3 core principles: Innovation, Sustainability and Performance.
Features
- Material cable gland: Polypropylene, Polyamide
- Material sealing gasket: TPE
- Protection class: IP68
- Temp. range min: -40 oC
- Temp. range max: 100 oC
- Glow wire test: 650 oC
- Thread type: M
- Ø Connection thread D: 20
- Lead: 1,5
- Length screw-in thread L: 10 mm
- Ø cable diameter min: 6 mm
- Ø cable diameter max: 14 mm
- Key width SW: 24 mm
- Collar diameter (E): 27 mm
- Total length TL: 32 mm
- Equipment: incl. locknut
- Type: TriShot ETKV-SET 20 WH
- Product Color: RAL 9001
Data Sheet:
Click Here for Data Sheet
