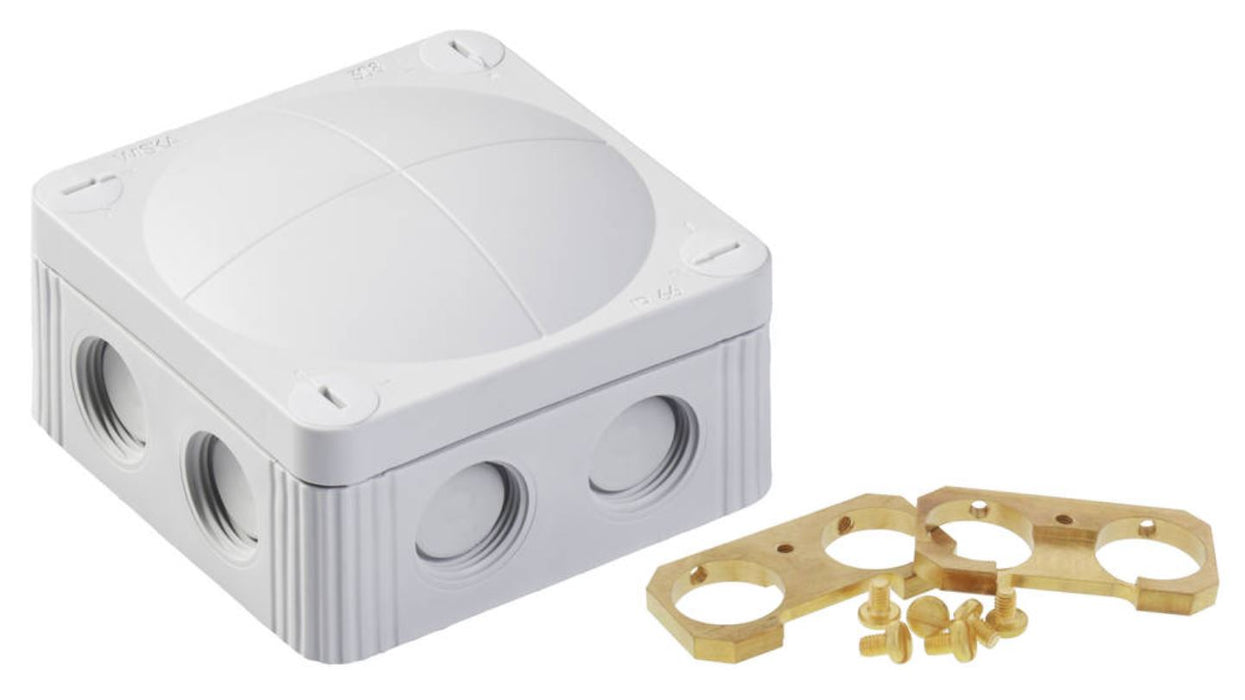

Wiska 308/5/EC/W COMBI A.C.E Kit 308/5 Junction Box + Earthing Bar - White
SKU 308/5/EC/W
Availability:
IN STOCK
Original price
£10.37
-
Original price
£10.37
Original price
£10.37
Inc VAT
£8.64
Exc VAT
£10.37
-
£10.37
Current price
£8.64
£8.64
-
£8.64
Current price
£8.64
Wiska 308/5/EC/W COMBI A.C.E Kit 308/5 Junction Box + Earthing Bar - White
Features
- Type: COMBI A.C.E Kit 308/5
- Colour: White
- Terminal Type: 5-pole
- Material: Polypropylene
- Material sealing gasket: TPE
- Temp. range min: -30 °C
- Temp. range max: 100 °C
- Temperatures during install: -5 °C - 60 °C
- Protection class: IP66 / IP67
- Glow wire test: 750 °C
- Voltage: 400 V
- Rated current / A (Terminal): 32 A
- Rated cross section: 4 mm²
- Terminals/poles: 5-pole, 4,0 mm²
- Fixing: 4 internal openings
- Ø cable diameter min: 3 mm
- Ø cable diameter max: 12 mm
- External dimensions LxWxH: 85 x 85 x 51mm
- ETIM-Classification: EC002600
IP66: using the membrane entry
IP67: using the threaded entry together with ESKV cable gland
Equipment:
8 M20 threaded membrane entries
4 captive cover screws
including mounting clip
including terminal block 5-poles, 4mm²
including earthing bar
Fixing:
With mounting clip or 4 internal openings outside of the sealing area
Data Sheet:
Click Here for Data Sheet
