Wiska 10111773 818CUR Consumer Unit Relocation Kit
SKU 10111773
Availability:
IN STOCK
Original price
£71.71
-
Original price
£71.71
Original price
£71.71
Inc VAT
£59.76
Exc VAT
£71.71
-
£71.71
Current price
£59.76
£59.76
-
£59.76
Current price
£59.76
Wiska 10111773 818CUR Consumer Unit Relocation Kit
Description

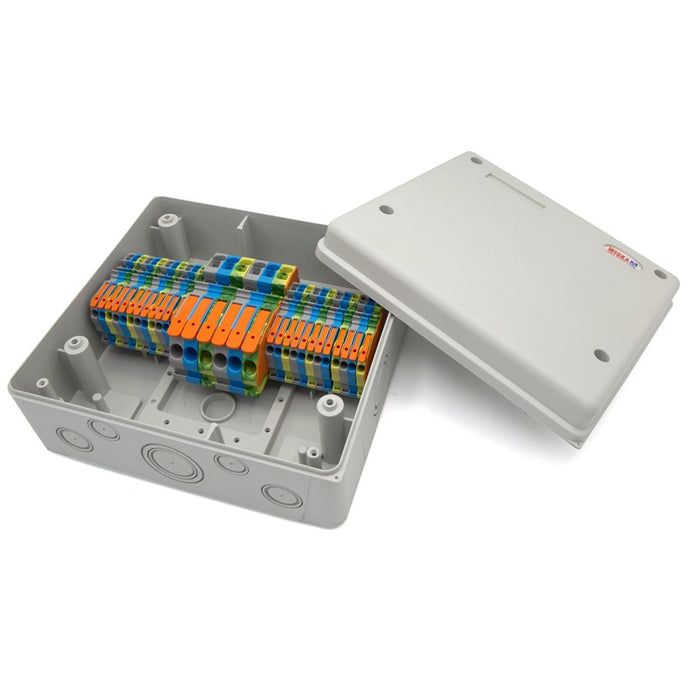

The Consumer Unit Relocator (CUR) is our latest solution offering the perfect solution when relocating a consumer unit in a domestic dwelling. Complete with WAGO Conductor DIN-rail terminals with Lever and Push-in.
The enclosure comes complete with the following WAGO connectors:
- 2202-1201 - Grey 2 conductor DIN-rail terminal with button push-in up to 4mm (x8)
- 2202-1204 - Blue conductor DIN-rail terminal with button push-in up to 4mm (x8)
- 2202-1207 - Green/Yellow 2 conductor DIN-rail terminal with button push-in up to 4mm (x8)
- 2002-1292 - Orange Endplate for 2202 (x1)
- 2210-1201 - Grey 2 conductor DIN-rail terminal with button push-in up to 16mm (x2)
- 2210-1204 - Blue 2 conductor DIN-rail terminal with button push-in up to 16mm (x2)
- 2210-1207 - Green/Yellow 2 conductor DIN-rail terminal with button push-in up to 16mm (x2)
- 2010-1292 - Orange Endplate for 2210 (x1)
- 2202-1207 - Green/Yellow 2 conductor DIN-rail terminal with button push-in up to 4mm (x8)
Features
- Type: CUR 818
- Material: Polycarbonate
- Temp. range min: -25 °C
- Temp. range max: 85 °C
- Protection class: IP65
- Glow wire test: 650 °C
- Impact resistance: IK08
- External dimensions LxWxH: 215x200x95mm
Data Sheet:
Click Here for Data Sheet
