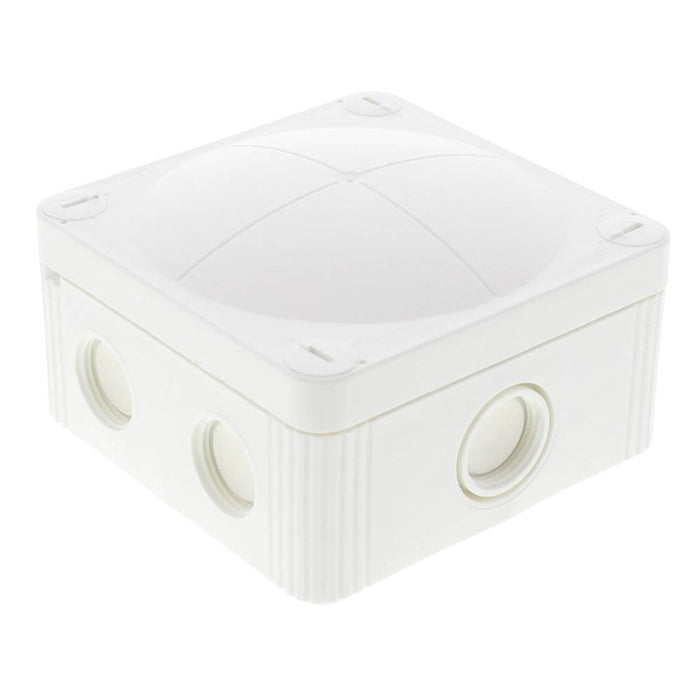

Wiska 10105598 COMBI 407 Empty Junction Box - White

Name: Wiska 10105598 COMBI 407 Empty Junction Box - White
Brand: Wiska
SKU: 10105598
Price: 6.3 GBP
Availability: InStock

SKU 10105598

Availability:

Dispatch in 2-3 Days

£6.30 - £6.30

£6.30

Inc VAT

£5.25

Exc VAT

£6.30 - £6.30

£5.25

£5.25 - £5.25

£5.25

Quantity

Wiska 10105598 COMBI 407 Empty Junction Box - White

Features

Type: COMBI 407/Empty
Colour: White
Terminal Type: None
Material: Polypropylene
Material sealing gasket: TPE
Temp. range min: -30 °C
Temp. range max: 100 °C
Temperatures during install: -5 °C - 60 °C
Protection class: IP66 / IP67
Glow wire test: 750 °C
Voltage: 690 V
Rated cross section: 4 mm²
Fixing: 4 internal openings
Ø cable diameter min: 3 mm
Ø cable diameter max: 12 mm
External dimensions LxWxH: 95 x 95 x 60mm
ETIM-Classification: EC002600

IP66: using the membrane entry

IP67: using the threaded entry together with ESKV cable gland

Equipment:
6x M20 threaded membrane entries and 1 middle M20 threaded membrane entry with knockout to M25
2 membrane cable entries through rear
4 captive cover screws
including mounting clip

Fixing:
With mounting clip or 4 internal openings outside of the sealing area

Data Sheet:

Click Here for Data Sheet
