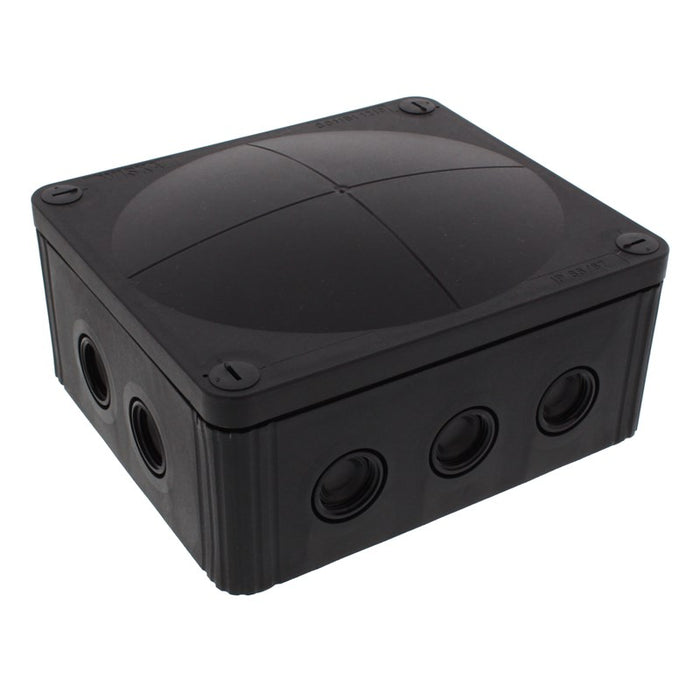

Wiska 10101463 COMBI 1210/5 Junction Box - Black
SKU 10101463
Availability:
IN STOCK
Original price
£20.51
-
Original price
£20.51
Original price
£20.51
Inc VAT
£17.09
Exc VAT
£20.51
-
£20.51
Current price
£17.09
£17.09
-
£17.09
Current price
£17.09
Wiska 10101463 COMBI 1210/5 Junction Box - Black
Features
- Type: COMBI 1210/5
- Colour: Black
- Terminal Type: 5-pole
- Material: Polypropylene
- Material sealing gasket: TPE
- Temp. range min: -30 °C
- Temp. range max: 100 °C
- Temperatures during install: -5 °C - 60 °C
- Protection class: IP66 / IP67
- Glow wire test: 750 °C
- Voltage: 690 V
- Rated current / A (Terminal): 57 A
- Rated cross section: 10 mm²
- Terminals/poles: 5-pole, 10,0 mm²
- Fixing: 4 internal openings
- Ø cable diameter min: 3 mm
- Ø cable diameter max: 12 mm
- External dimensions LxWxH: 160 x 140 x 81mm
- ETIM-Classification: EC002600
IP66: using the membrane entry
IP67: using the threaded entry together with ESKV cable gland
Equipment:
10 M20 threaded membrane entries and M25 knockouts
4 membrane cable entries through rear
4 captive cover screws
inclusive terminal block 5-poles, 10mm²
Mounting:
With 4 internal openings outside of the sealing area
Data Sheet:
Click Here for Data Sheet
