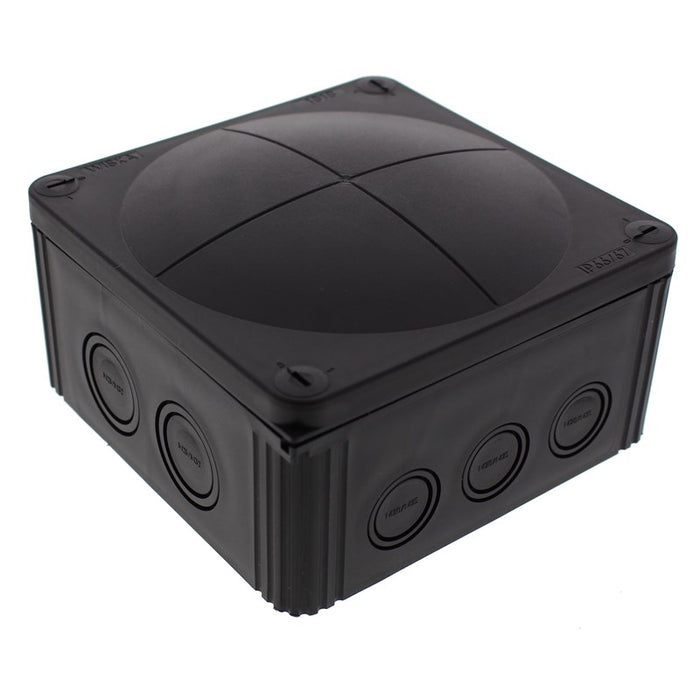

Wiska 10062215 COMBI 1010/5 Junction Box - Black
SKU 10062215
Availability:
Dispatch in 2-3 Days
Original price
£24.35
-
Original price
£24.35
Original price
£24.35
Inc VAT
£20.29
Exc VAT
£24.35
-
£24.35
Current price
£20.29
£20.29
-
£20.29
Current price
£20.29
Wiska 10062215 COMBI 1010/5 Junction Box - Black
Features
- Type: COMBI 1010/5
- Colour: Black
- Terminal Type: 5-pole
- Material: Polypropylene
- Material sealing gasket: TPE
- Temp. range min: -30 °C
- Temp. range max: 100 °C
- Temperatures during install: -5 °C - 60 °C
- Protection class: IP66 / IP67
- Glow wire test: 750 °C
- Voltage: 690 V
- Rated current / A (Terminal): 57 A
- Rated cross section: 10 mm²
- Terminals/poles: 5-pole, 10,0 mm²
- Fixing: 4 internal openings
- Ø cable diameter min: 6 mm
- Ø cable diameter max: 21 mm
- External dimensions LxWxH: 140 x 140 x 82mm
- ETIM-Classification: EC002600
IP66: using the QUIXX self sealing membrane screw
IP67: using the knockout entry together with ESKV cable gland
Equipment:
10 knockouts side 5x M25/M32; 2x M20; 3x M20/M32
4 knockouts in the bottom 2x M25/M32; 2x M20/M25
4 captive cover screws
including QUIXX EMS self-sealing membrane screw 2x M25; 1x M32
including terminal block 5-poles, 10mm²
Mounting:
With 4 internal openings outside of the sealing area
Data Sheet:
Click Here for Data Sheet
