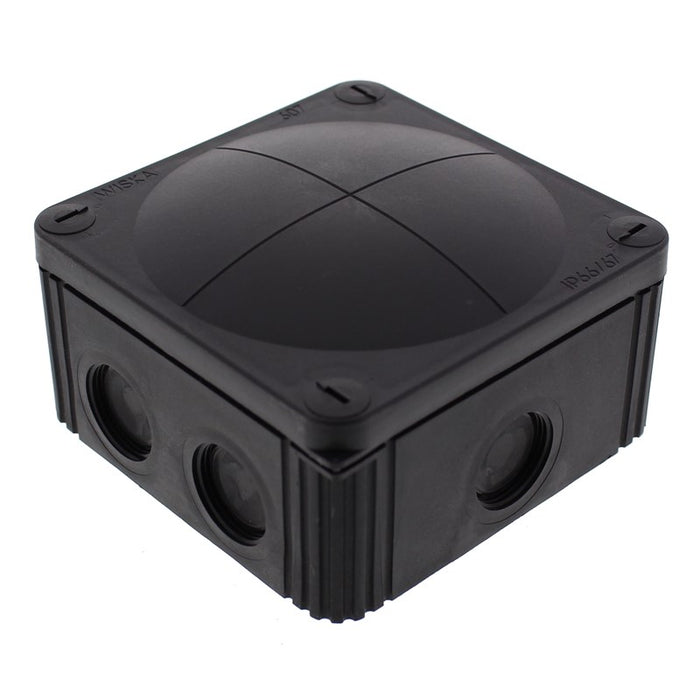

Wiska 10060648 COMBI 607 Empty Junction Box - Black
Features
- Type: COMBI 607/Empty
- Colour: Black
- Terminal Type: None
- Material: Polypropylene
- Material sealing gasket: TPE
- Temp. range min: -30 °C
- Temp. range max: 100 °C
- Temperatures during install: -5 °C - 60 °C
- Protection class: IP66 / IP67
- Glow wire test: 750 °C
- Voltage: 690 V
- Rated cross section: 6 mm²
- Fixing: 4 internal openings
- Ø cable diameter min: 5,2 mm
- Ø cable diameter max: 17 mm
- External dimensions LxWxH: 110 x 110 x 66mm
- ETIM-Classification: EC002600
IP66: using the membrane entry
IP67: using the threaded entry together with ESKV cable gland
Equipment:
7 M20 threaded membrane entries
3 membrane cable entries through rear
4 captive cover screws
Mounting:
4 internal openings outside of the sealing area
Data Sheet:
Click Here for Data Sheet
