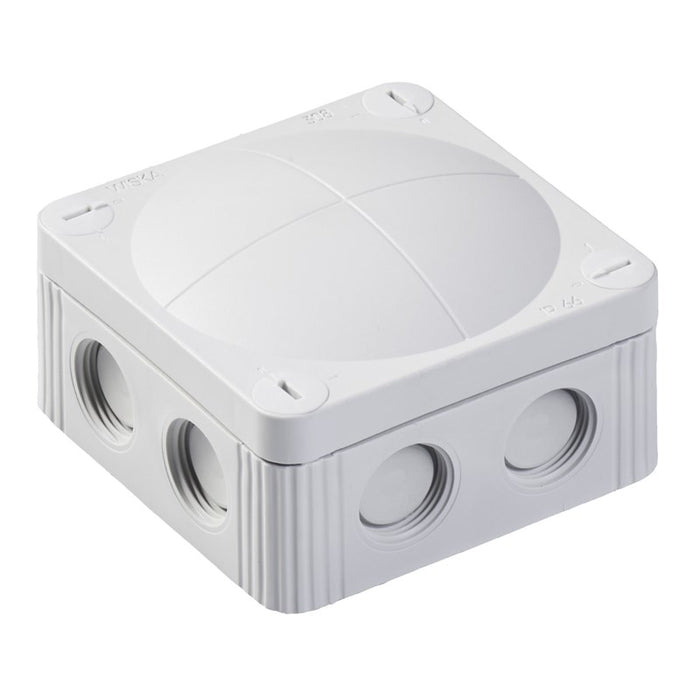

Wiska 10060400 COMBI 308 Empty Junction Box - Light Grey

Name: Wiska 10060400 COMBI 308 Empty Junction Box - Light Grey
Brand: Wiska
SKU: 10060400
Price: 4.51 GBP
Availability: InStock

SKU 10060400

Availability:

IN STOCK

£4.51 - £4.51

£4.51

Inc VAT

£3.76

Exc VAT

£4.51 - £4.51

£3.76

£3.76 - £3.76

£3.76

Quantity

Wiska 10060400 COMBI 308 Empty Junction Box - Light Grey

Features

Type: COMBI 308/Empty
Colour: Light Grey
Terminal Type: None
Material: Polypropylene
Material sealing gasket: TPE
Temp. range min: -30 °C
Temp. range max: 100 °C
Temperatures during install: -5 °C - 60 °C
Protection class: IP66 / IP67
Glow wire test: 750 °C
Voltage: 400 V
Rated cross section: 4 mm²
Fixing: 4 internal openings
Ø cable diameter min: 3 mm
Ø cable diameter max: 12 mm
External dimensions LxWxH: 85 x 85 x 51mm
ETIM-Classification: EC002600

IP66: using the membrane entry

IP67: using the threaded entry together with ESKV cable gland

Equipment:
8 M20 threaded membrane entries
4 captive cover screws
including mounting clip

Fixing:
With mounting clip or 4 internal openings outside of the sealing area

Data Sheet:

Click Here for Data Sheet
