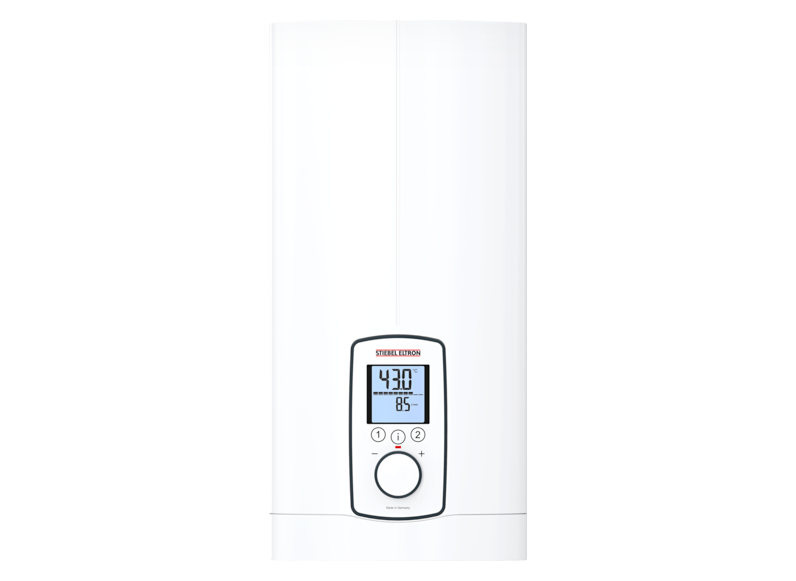

Stiebel Eltron 204285 DHE 27 Set Comfort Instantaneous Water Heater (3 Phase) IP25 27kW

Stiebel Eltron 204285 DHE 27 Set Comfort Instantaneous Water Heater (3 Phase)

Features

• Fully electronic output control with 4i technology
• The temperature can be permanently restricted by the contractor to 55, 50 or 43 °C; the temperature can be further restricted by the user (childproofing)
• Greater convenience when installed undersink, since the appliance cover and the programming unit can be turned the other way up
• Optimum energy efficiency through selectable ECO mode
• Consumption indicator for transparent costs
• Quick temperature selection with two memory buttons
• Safe operation thanks to extensive range of convenience and safety functions
• Easy operation via large, backlit multifunction display

Specifications

• Product Number: 204285
• Rated voltage: 400 V
• Rated output: 27/24.4/27 kW
• Rated current: 39/37.1/39 A
• Fuse protection: 32/32/35 A
• Frequency: 50/50 Hz
• Phases: 3/PE
• IP rating: IP 25
• Temperature setting: Off, 20-60 °C
• Colour: white
• Height: 466 mm
• Width: 225 mm
• Depth: 116 mm
• Weight: 3.10 kg
• Energy efficiency class: A

Data Sheet:

UK ERP Product Datasheet:

EU ERP Product Datasheet:
