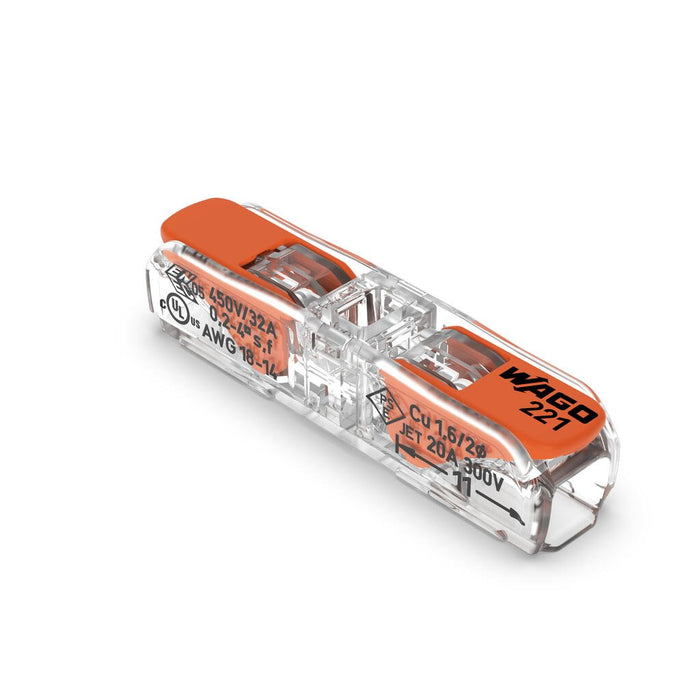

Wago 221-2411 4mm² 221 Inline Compact Connector - Transparent
SKU 221-2411
Availability:
SOLD OUT
Sold out
Original price
£0.40
-
Original price
£0.40
Original price
£0.40
Inc VAT
£0.33
Exc VAT
£0.40
-
£0.40
Current price
£0.33
£0.33
-
£0.33
Current price
£0.33
Wago 221-2411 4mm² 221 Inline Compact Connector - Transparent
Inline splicing connector with lever; for all conductor types; max. 4 mm²; 2-conductor; transparent housing; Transparent cover; Surrounding air temperature: max 85°C (T85); 4.00 mm²; transparent
This connector is suitable for worldwide installations.
Electrical Data:
Ratings per IEC/EN:- Ratings per: EN 60664
- Nominal voltage (II/2): 450V
- Rated surge voltage (II/2): 4kV
- Rated current: 32A
- Legend (ratings): (II / 2) ? Overvoltage category II / Pollution degree 2
- Rated voltage UL (Use Group C): 600V
- Rated current UL (Use Group C): 20A
Connection Data:
- Total number of connection points: 2
Connection 1:
- Connection Technology: CAGE CLAMP
- Actuation type: Lever
- Connectable conductor materials: Copper
- Solid conductor: 0.2 … 4 mm² / 20 … 14 AWG
- Stranded conductor: 0.2 … 2.5 mm² / 18 … 14 AWG
- Fine-stranded conductor: 0.2 … 4 mm² / 18 … 14 AWG
- Strip length: 11 mm / 0.43 inch
Physical Data:
- Width: 8.1 mm / 0.319 inch
- Height: 8.9 mm / 0.35 inch
- Depth: 35.5 mm / 1.398 inch
Material Data:
- Color: Transparent
- Cover color: Transparent
- Flammability class per UL94: V2
- Fire load: 0MJ
- Actuator color: Orange
- Weight of insulation material: 0.84g
- Weight: 2.4g
