WAGO 773-106 6-Way PUSH WIRE® Connector (50 Full Box)

Product Overview

The WAGO 773-106 6-way PUSH WIRE® connector is designed to deliver fast, reliable and maintenance-free electrical connections in surface-mounted and flush-mounted junction boxes. It is ideal for professional electrical installations where multiple conductors must be connected safely within a compact space.

Using PUSH WIRE® spring connection technology, conductors are simply pushed into place without the need for tools. The internal spring mechanism provides a secure, vibration-resistant connection while significantly reducing installation time.

Key Features & Benefits

• 6-way PUSH WIRE® splicing connector
• Suitable for solid and stranded conductors
• Conductor size range: 0.75mm² to 2.5mm²
• Rated current: 24A
• Rated voltage: 400V

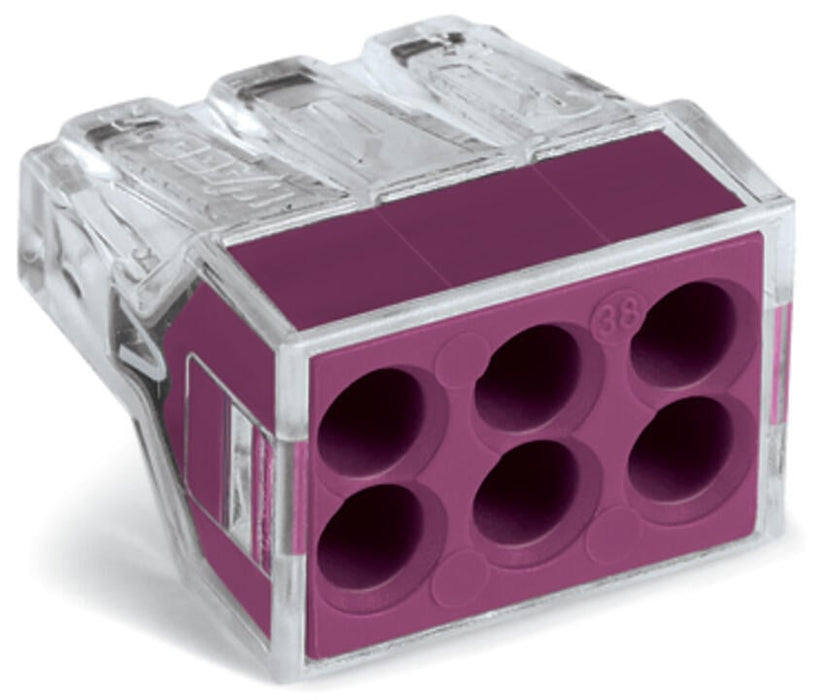

• Transparent housing with violet cover for easy identification
• Tool-free push-in termination for rapid installation
• Ideal for high-load junction box applications

Electrical & Connection Data

• Connection technology: PUSH WIRE®
• Number of conductors: 6
• Number of potentials: 1
• Overvoltage category: III
• Rated impulse withstand voltage: 4kV
• Rated current: 24A
• Wiring direction: Side-entry
• Required strip length: 12mm

Conductor Compatibility

• Solid conductors: 0.75 – 2.5mm²
• Stranded conductors: 1.5 – 2.5mm²
• Connectable conductor materials: Copper

Aluminium conductors may be terminated when used with WAGO Alu-Plus contact paste (249-130). The paste removes oxide layers, prevents corrosion and ensures long-term connection reliability. Reduced nominal currents apply when aluminium conductors are used.

Physical & Material Specifications

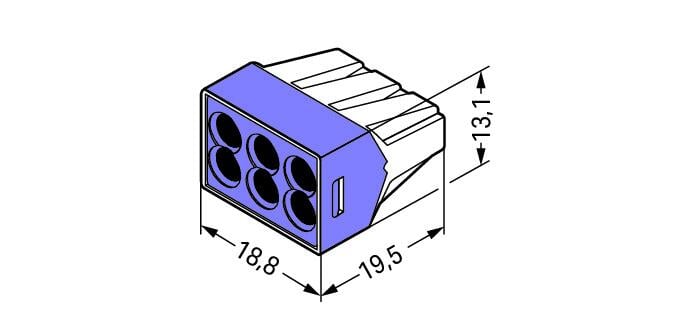

• Dimensions (W x H x D): 18.8 x 13.1 x 19.5mm
• Weight: 3.5g
• Housing material: Polycarbonate (PC)
• Flammability rating: UL94 V2
• Contact material: Electrolytic copper, tin plated
• Spring material: Chrome-nickel spring steel (CrNi)
• Ambient operating temperature: up to +60°C
• Continuous operating temperature: 105°C

Typical Applications

• Junction box wiring
• Lighting and power distribution circuits
• Domestic, commercial and industrial installations
• Fast retrofit and maintenance work
