Wago 773-104 4-Way Push Wire Connector (100 Full Box)
WAGO 773-104 4-Way PUSH WIRE® Connector (100 Full Box)
Product Overview
The WAGO 773-104 4-way PUSH WIRE® connector provides a fast, safe and maintenance-free solution for electrical connections within surface-mounted and flush-mounted junction boxes. Designed for professional installations, it ensures consistent performance across domestic, commercial and industrial environments.
Featuring PUSH WIRE® spring connection technology, conductors are simply pushed into the connector without the need for tools. The internal spring mechanism delivers a secure, vibration-resistant connection while significantly reducing installation time.
Key Features & Benefits
- 4-way PUSH WIRE® splicing connector
- Suitable for solid and stranded conductors
- Conductor size range: 0.75mm² to 2.5mm²
- Rated current: 24A
- Rated voltage: 400V

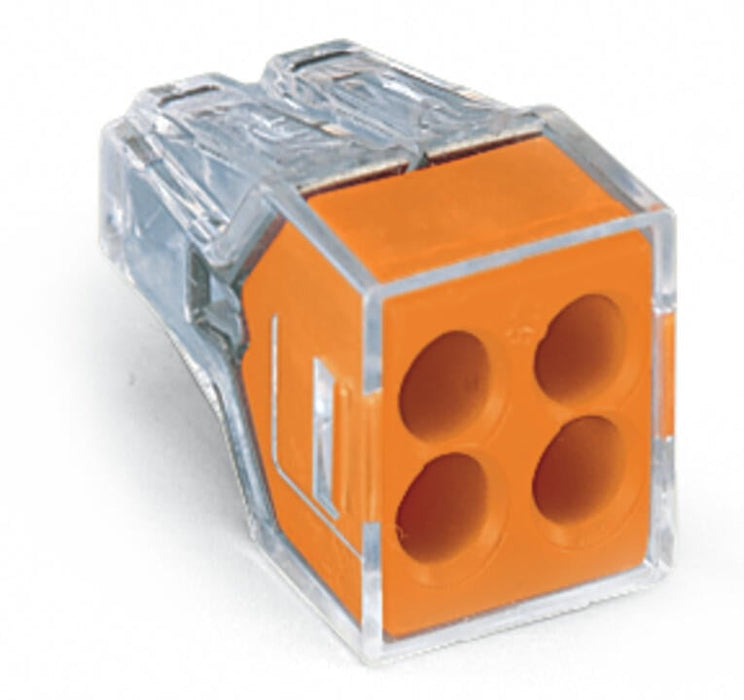

- Transparent housing with orange cover for easy visual inspection
- Tool-free push-in termination for rapid installation
- Ideal for junction box wiring in high-load applications
Electrical & Connection Data
- Connection technology: PUSH WIRE®
- Number of conductors: 4
- Number of potentials: 1
- Overvoltage category: III
- Rated impulse withstand voltage: 4kV
- Rated current: 24A
- Wiring direction: Side-entry
- Required strip length: 12mm
Conductor Compatibility
- Solid conductors: 0.75 – 2.5mm²
- Stranded conductors: 1.5 – 2.5mm²
- Connectable conductor materials: Copper
Aluminium conductors may also be terminated when used with WAGO Alu-Plus contact paste (249-130). This paste removes oxide layers, prevents corrosion and improves long-term connection reliability. Reduced nominal currents apply when aluminium conductors are used.
Physical & Material Specifications

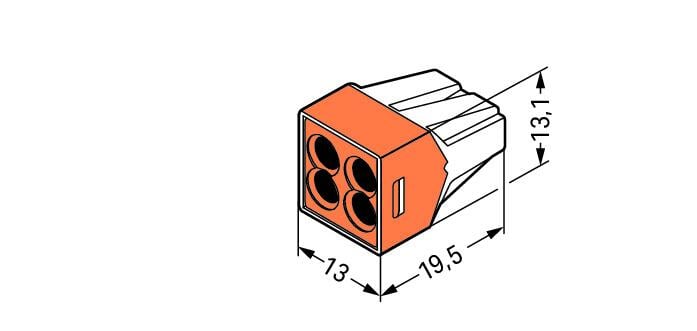

- Dimensions (W x H x D): 13 x 13.1 x 19.5mm
- Weight: 2.5g
- Housing material: Polycarbonate (PC)
- Flammability rating: UL94 V2
- Contact material: Electrolytic copper, tin plated
- Spring material: Chrome-nickel spring steel (CrNi)
- Ambient operating temperature: up to +60°C
- Continuous operating temperature: 105°C
Typical Applications
- Junction box connections
- Lighting and power circuits
- Domestic, commercial and industrial wiring
- Fast retrofit and maintenance installations
