WAGO 773-102 2-Way PUSH WIRE® Connector (100 Full Box)

Product Overview

The WAGO 773-102 2-way PUSH WIRE® connector is a compact and reliable solution for fast, maintenance-free electrical connections. Designed for use in surface-mounted and flush-mounted junction boxes, it enables safe and efficient wiring in domestic, commercial and industrial installations.

Utilising PUSH WIRE® spring connection technology, this connector allows solid and stranded conductors to be inserted directly without tools, significantly reducing installation time while ensuring a secure electrical connection.

Key Features & Benefits

• 2-way PUSH WIRE® splicing connector
• Suitable for solid and stranded copper conductors
• Conductor size range: 0.75mm² to 2.5mm²
• Rated current: 24A
• Rated voltage: 400V

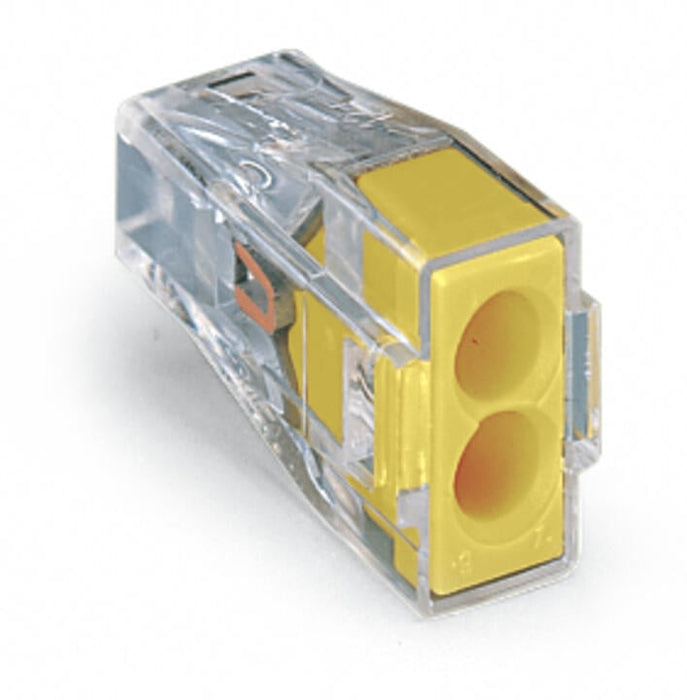

• Transparent housing with yellow cover for easy inspection
• Tool-free, push-in connection for quick installation
• Ideal for surface and flush-mounted junction boxes

Electrical & Connection Data

• Connection technology: PUSH WIRE®
• Number of conductors: 2
• Number of potentials: 1
• Overvoltage category: III
• Rated impulse withstand voltage: 4kV
• Wiring direction: Side-entry
• Strip length: 12mm

Conductor Compatibility

• Solid conductors: 0.75 – 2.5mm²
• Stranded conductors: 1.5 – 2.5mm²
• Connectable conductor material: Copper

Aluminium conductors can also be terminated when used with WAGO Alu-Plus contact paste (249-130). The paste removes oxide layers, prevents corrosion and ensures long-term connection reliability. Reduced nominal currents apply when using aluminium conductors.

Physical & Material Specifications

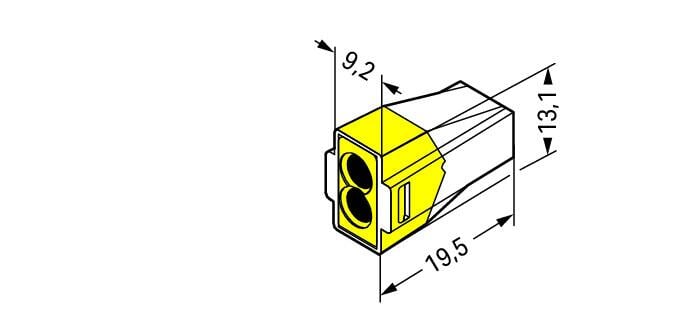

• Dimensions (W x H x D): 9.2 x 13.1 x 19.5mm
• Weight: 1.6g
• Housing material: Polycarbonate (PC)
• Flammability rating: UL94 V2
• Contact material: Electrolytic copper, tin plated
• Spring material: Chrome-nickel spring steel (CrNi)
• Operating ambient temperature: up to +60°C
• Continuous operating temperature: 105°C

Typical Applications

• Junction box wiring
• Lighting circuits
• Domestic and commercial electrical installations
• Fast retrofit and maintenance work
