Wago 221-413 4mm² 3-Way Compact Splicing Connector - Transparent (50 Full Box)

Wago 221-413 4mm² 3-Way Compact Splicing Connector - Transparent (50 Full Box)

COMPACT Splicing Connector; for all conductor types; max. 4 mm²; 3-conductor; with levers; transparent housing; Surrounding air temperature: max 85°C (T85); 4,00 mm²; transparent

Your Benefits:

• Ease of use – pull the lever up, insert a conductor and push the lever back down
• Available as 2-wire, 3-wire and 5-wire connectors
• Easily terminate conductors from 0.14 to 4 mm²
• Connect solid, stranded and fine-stranded conductors
• Save time for installers and device manufacturers
• Quickly install devices with higher power consumption
• Safely install long cable runs with larger conductor cross sections
• Mounting carrier for installation conforms to standards
• Custom carriers are possible

Electrical Data:

• Ratings per: EN 60664
• Nominal voltage (II/2): 450V
• Rated surge voltage (II/2): 4kV
• Rated current: 32A
• Legend (ratings): (II / 2) ? Overvoltage category II / Pollution degree 2

• Approvals per: UL 486C
• Rated voltage UL (Use Group C): 600V
• Rated current UL (Use Group C): 20A

Connection Data:

• Total number of connection points: 3
• Total number of potentials: 1

Connection 1:

• Connection Technology: CAGE CLAMP
• Actuation type: Lever
• Connectable conductor materials: Copper
• Nominal cross-section: 4 mm² / 12 AWG
• Solid conductor: 0.2 … 4 mm² / 24 … 12 AWG
• Stranded conductor: 0.2 … 4 mm² / 24 … 12 AWG
• Fine-stranded conductor: 0.14 … 4 mm² / 24 … 12 AWG
• Strip length: 11 mm / 0.43 inch
• Wiring direction: Side-entry wiring

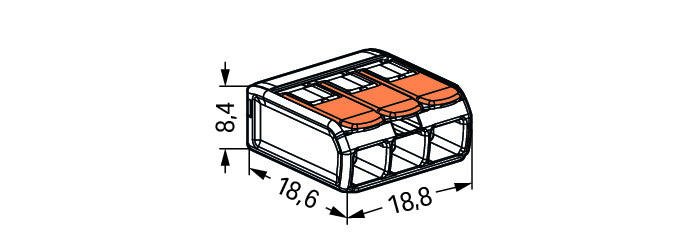

Physical Data:

• Width: 18.8 mm / 0.74 inch
• Height: 8.6 mm / 0.327 inch
• Depth: 18.8 mm / 0.732 inch

Material Data:

• Color: Transparent
• Flammability class per UL94: V2
• Fire load: 0.048MJ
• Actuator color: Orange
• Weight: 2.5g

Environmental Requirements

• Ambient temperature (operation): +85 °C
• Continuous operating temperature: 105 °C
• Temperature marking per EN 60998: T85
