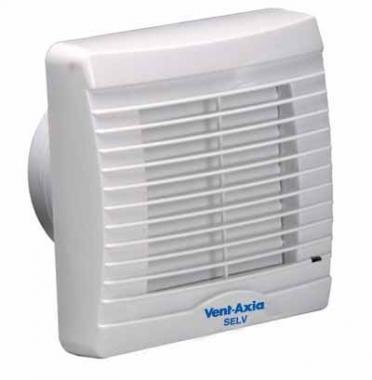

Vent-Axia 258410 VA100SVXT12 100mm IPX7 Rated Extractor Fan with Overrun Timer, Thermoelectric Shutter & Indicator Light

Bathroom and Toilet Ventilation
The VA100 range from Vent-Axia is designed for domestic bathrooms and toilets. Available as window, wall or panel mounted and with options of shutter, timer or humidity controlled versions.
Designed in a clean white finish and suitable for ambient temperatures up to +40°C the unit is fitted with Standard Thermal Overload Protection (S.T.O.P.).
Safety Extra Low Voltage Fans (SELV)
Designed for areas where a fan has to be fitted over or within Zone 1 in a room containing a fixed bath or shower according to IEE wiring regulations (BS 7671), SELV models can be safely installed within the spray area. SELV models are rated IPX7. Control is by mains safety isolating transformer unit with SELV output, which is sited away from any source of spray and out of reach of a person using a fixed bath or shower.

• Indication light
• Panel, ceiling, window or wall mounting
• Available with electric shutter
• Sensors and auto mode controllers save energy by switching the ventilation units on only when needed and when the room is occupied
• Adjustable overrun time option available (5-30 minutes)
• Meets current Building Regulations Approved Document F
• IPX4 rated - IPX7 rated (SELV)
• SELV Transformer to BS EN 60 742

Data Sheet:

Installation Guide:
