LIVE Electrical EMU2M 2 Way IP40 Metal EV Charging Unit with DP 100A Main Switch
LIVE Electrical EMU2M 2-Way IP40 Metal EV Charging Unit with DP 100A Main Switch
Product Overview

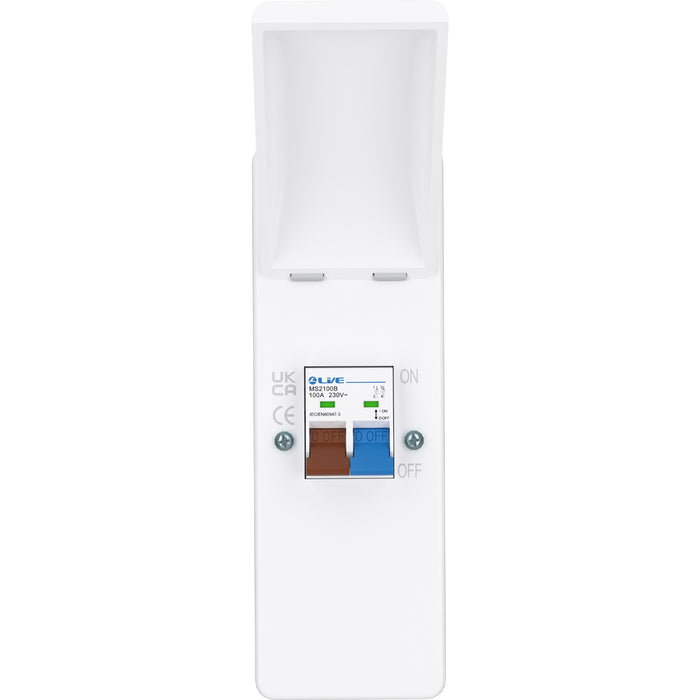

The LIVE Electrical EMU2M 2-Way Metal EV Charging Unit is a compact and reliable enclosure purpose-built for electric vehicle (EV) charging installations. It provides a safe and convenient connection point for EV chargers and small sub-circuits. Supplied pre-fitted with a 100A double pole main switch (MS2100B), it offers full circuit isolation and compliance with the latest wiring regulations for EV installations.
Constructed from high-quality steel with a fully enclosed IP40-rated body, the EMU2M provides excellent protection against dust and accidental contact. Its durable white polyester powder-coated finish (RAL 9010) gives a modern, professional look suitable for domestic garages, carports, or commercial charging setups. Compact and easy to install, this EV distribution unit ensures performance, safety, and long service life.
Key Features & Benefits
- Application: Designed for EV charger installations and small sub-distribution circuits.

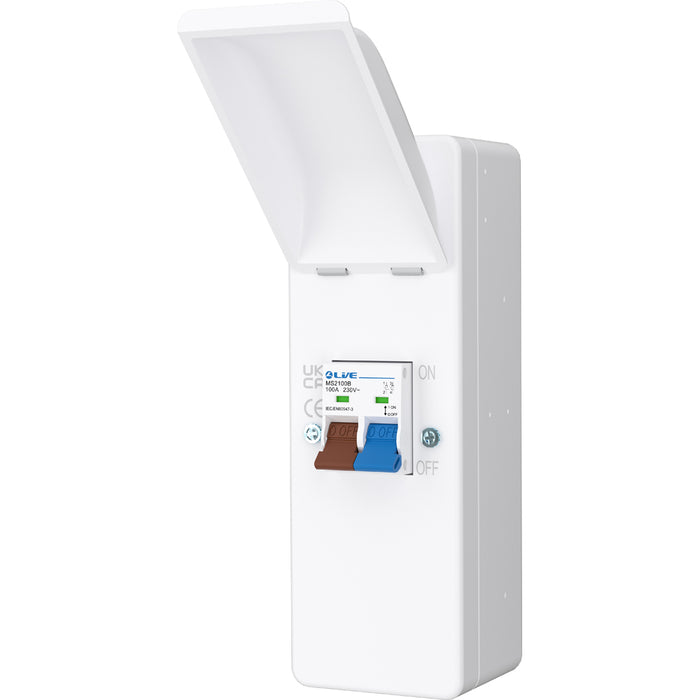

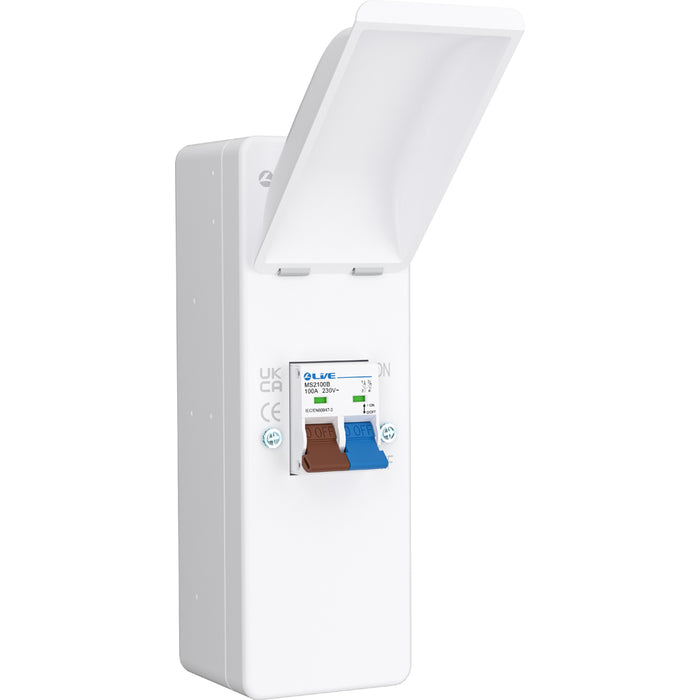

- Construction: Fully enclosed metal body with a drop-down lid for easy access and protection.
-
Pre-fitted with:
- 100A Double Pole Main Switch (MS2100B) for complete circuit isolation.
- Protection rating: IP40 – suitable for indoor installations and resistant to dust ingress.
- Mounting: Surface-mounted for straightforward wall installation.
- Finish: White polyester powder coating to RAL 9010 – durable, clean, and corrosion-resistant.
- Dimensions: 79mm (W) × 230mm (H) × 96mm (D).
- Compliance: Manufactured in accordance with BS EN 61439-3 for safety and reliability.
Typical Applications
- EV charging unit connection
- Residential garage and carport installations
- Commercial EV charging systems
- Sub-distribution for small electrical loads
