LIVE Electrical EMU2-R 2 Way IP40 Metal EV Charging Unit with 40A Type A DP RCBO C Curve
LIVE Electrical EMU2-R 2-Way IP40 Metal EV Charging Unit with 40A Type A DP RCBO (C Curve)
Product Overview

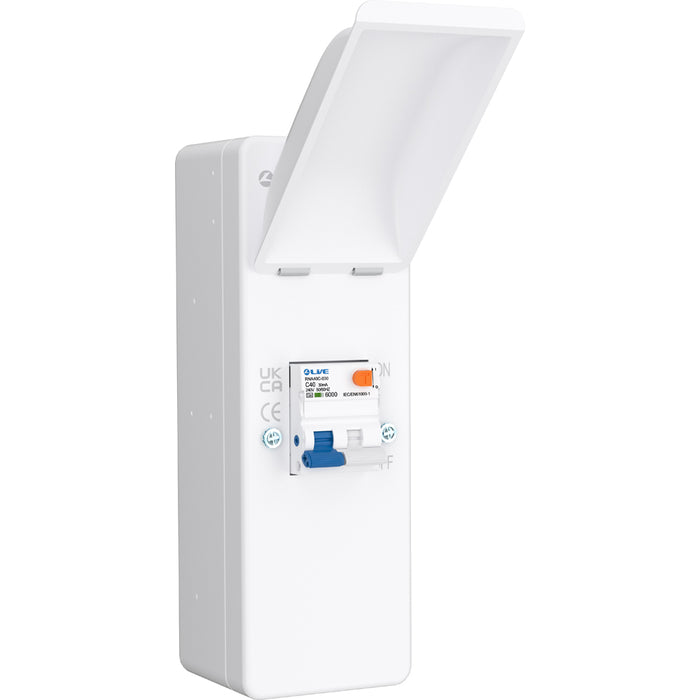

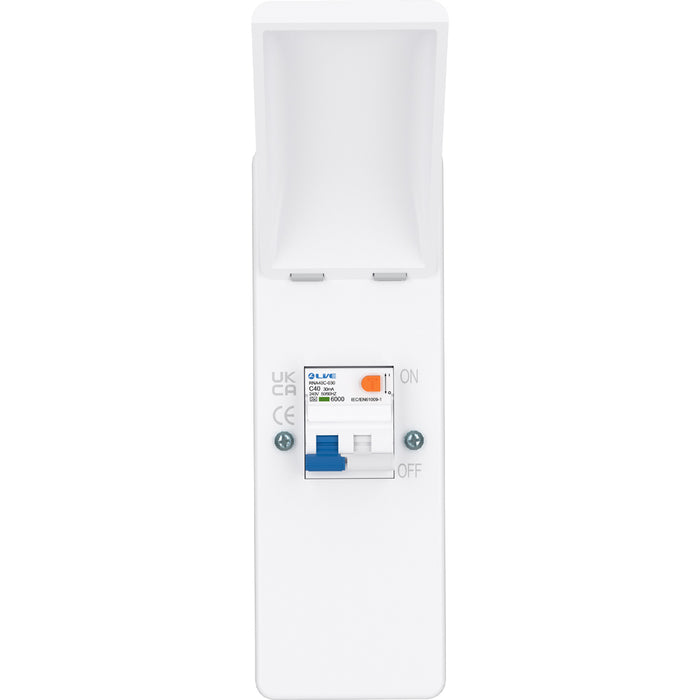

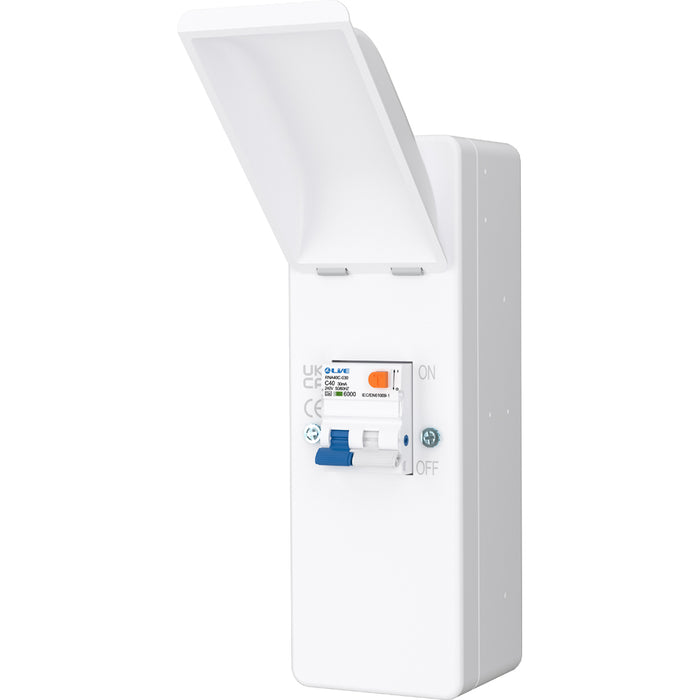

The LIVE Electrical EMU2-R EV Charging Unit is a purpose-built, compact distribution solution for electric vehicle (EV) charger installations. Designed for performance and protection, it comes pre-fitted with a 40A 30mA Type A double pole RCBO (C Curve) to provide comprehensive circuit, overload, and residual current protection for EV charging points.
Constructed from fully enclosed metal and rated to IP40, the EMU2-R ensures durability and electrical safety in indoor environments. The unit features a drop-down metal lid for easy access and maintenance while maintaining a clean, professional finish. With a white polyester powder coating (RAL 9010) and a compact design, this enclosure is ideal for both domestic garages and commercial EV installations where reliability and compliance are essential.
Key Features & Benefits
- Application: Specifically designed for electric vehicle charger connections.
- Construction: Fully enclosed steel body with drop-down metal lid for added safety.
-
Pre-fitted with:
- 40A Type A Double Pole RCBO (C Curve, RNA40C-030) – protects against overload, short circuit, and earth leakage.
- Protection rating: IP40 – ideal for indoor use, protecting against dust and contact.
- Mounting: Surface-mounted for simple installation.
- Finish: White polyester powder-coated surface (RAL 9010) for a sleek, corrosion-resistant look.
- Dimensions: 79mm (W) × 230mm (H) × 96mm (D).
- Compliance: Fully compliant with BS EN 61439-3 standards for consumer unit safety.
Typical Applications
- Domestic EV charger connections
- Garage or carport electrical installations
- Commercial EV charging units
- Sub-distribution protection for EV infrastructure
